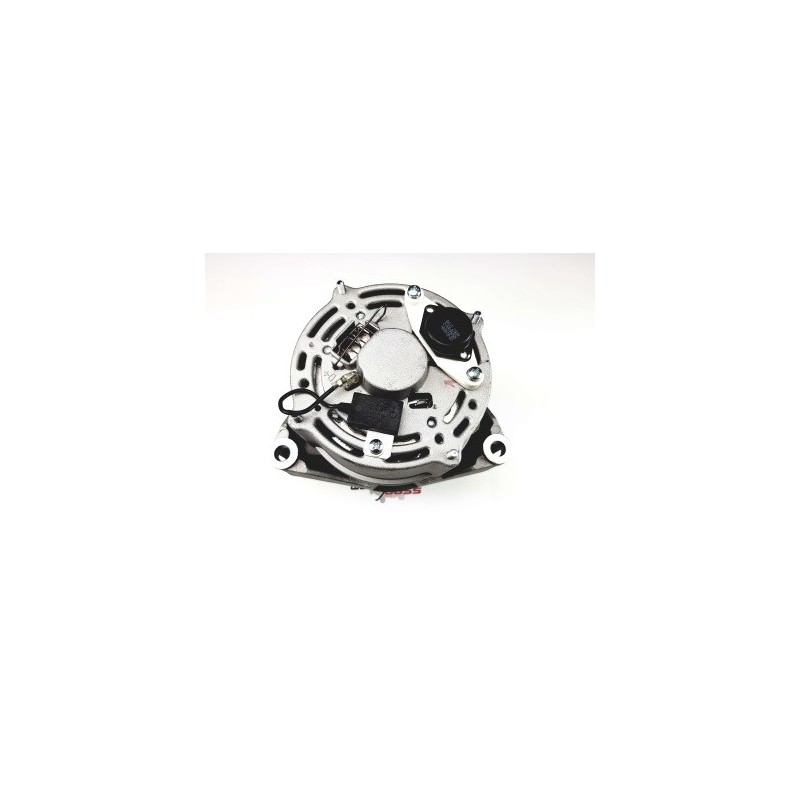

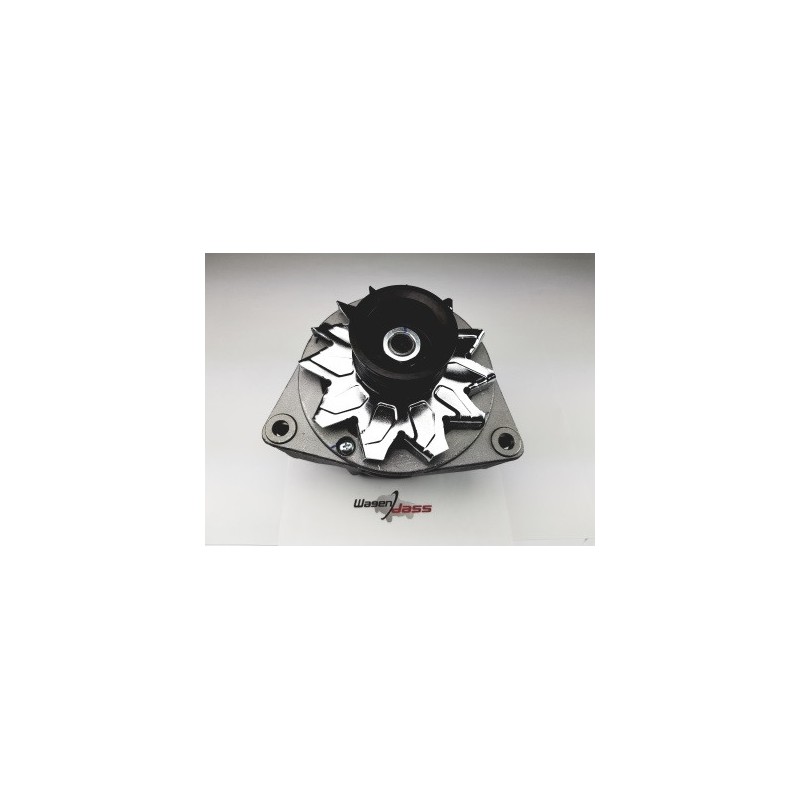

Alternator replacing BOSCH 0120489330 / 0120489329 / 0120489328 / 0120489327
Alternator NEW for MERCEDES-BENZ
= BOSCH 0120488132 / 0120488133 / 0120489274 / 0120489275 / 0120489298 / 0120489321 / 0120489322
0120489324 / 0120489325 / 0120489326 / 0120489327 / 0120489328 / 0120489329 / 0986033810
A13V02 / A13V07 / 2541297 / 433138
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Voltage 14 - Amp 70

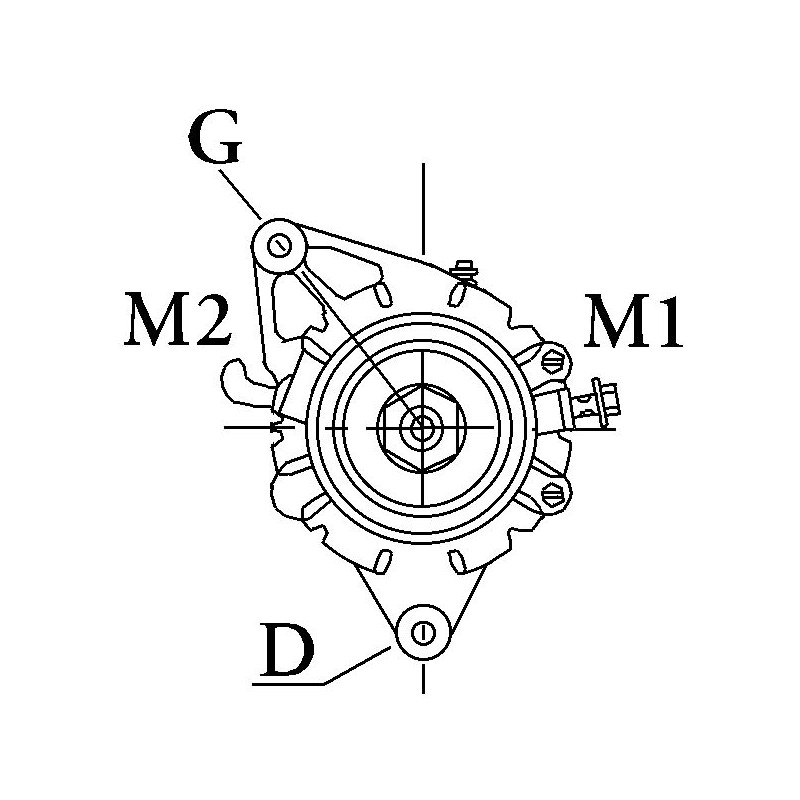

D =Bracket hole 10.75
G =Belt. adj. bracket hole 10.70
B =Width/holder arm 56.00
E =Belt. adj. brackethole pos. 50
H =Pulley dia. 55.50
A =Pulley dist. 92.00
Grooves/pulley 6

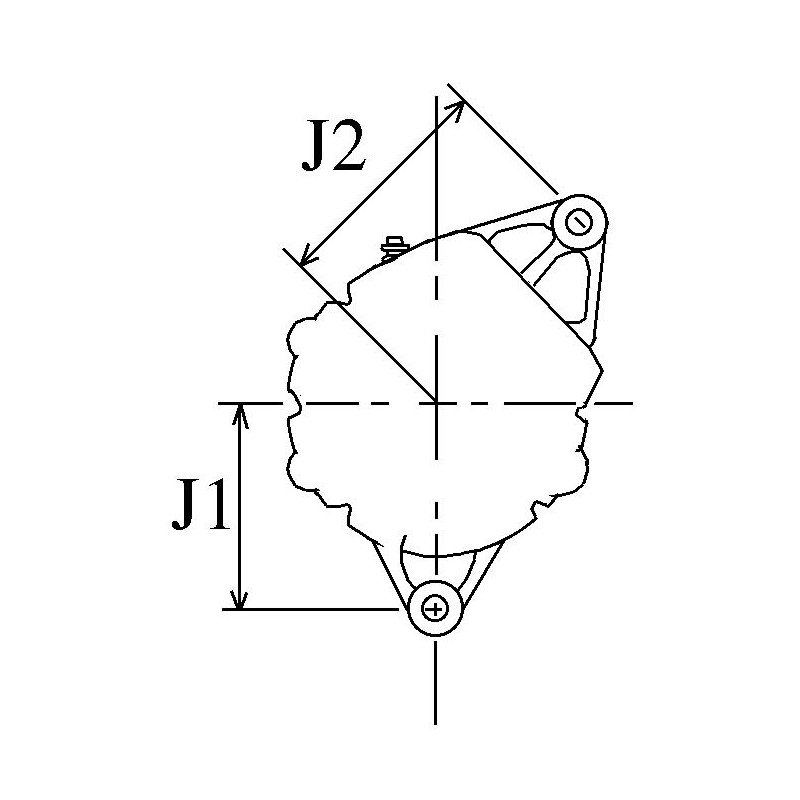

J1 =Radius 90.00
J2 =Radius 90.00
Position B + Plug
Rotation Cr

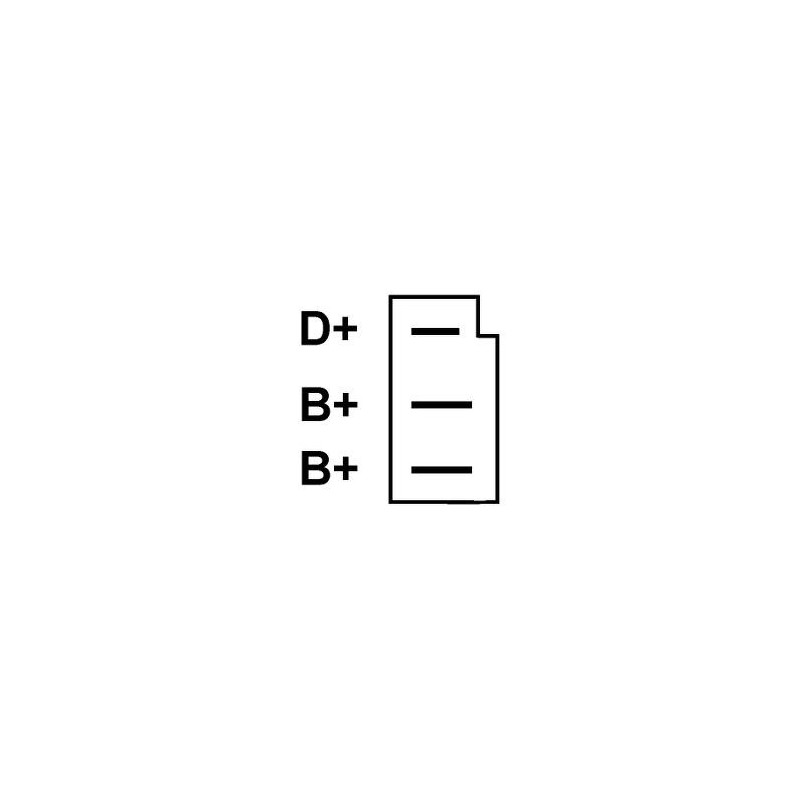

Plug no. 1 PL22
Fan Ef
Pulley Serpentine Pulley
R =Total length mm 183.50
generic brand
= BOSCH 0120488132 / 0120488133 / 0120489274 / 0120489275 / 0120489298 / 0120489321 / 0120489322
0120489324 / 0120489325 / 0120489326 / 0120489327 / 0120489328 / 0120489329
0120489330 / 0120489354 / 0120489355 / 0986033288 / 0986033720 / 0986033728 / 0986033730
0986033810 / 0986033811 / 0986034060
= DELCO REMY DRA3720 / DRA3740
= HELLA 8EL725748001 / 8EL738083001
= ISKRA / LETRIKA IA0713 / IA0731 / IA0732 / AAK4571
= LUCAS LRA00719 / LRA719
= MERCEDES-BENZ 0071545302 / 0071545402 / 0071545502 / 0071545602 / 0071545802 / 0081548702
00815489021 / A0071545302 / A0071545402
= R120489326 / W26069
fits:
| Brand | Model | Tipo | Year |
| MERCEDES BENZ | 190 2.0 | (201)[M102.924] | 01.1986-05.1990 |
| MERCEDES BENZ | 190 2.0 Diesel | (201)[OM601.911] | 04.1985-08.1993 |
| MERCEDES BENZ | 190 2.5 Diesel | (201)[OM602.911] | 04.1985-08.1993 |
| MERCEDES BENZ | 190 2.5 Diesel | (201)[OM602.911] | 08.1989-08.1993 |
| MERCEDES BENZ | 190 2.5 TD | (201)[OM602.961] | 02.1988-08.1993 |
| MERCEDES BENZ | 190 E 2.0 | (201)[M102.961] | 10.1982-08.1989 |
| MERCEDES BENZ | 190 E 2.0 | (201)[M102.962] | 09.1985-08.1990 |
| MERCEDES BENZ | 190 E 2.3 | (201)[M102.985] | 09.1986-08.1990 |
| MERCEDES BENZ | 190 E 2.3 -16 | (201)[M102.983] | 04.1984-08.1988 |
| MERCEDES BENZ | 190 E 2.5 -16 | (201)[M102.990] | 09.1988-08.1993 |
| MERCEDES BENZ | 190 E 2.5 -16 | (201)[M102.991] | 03.1989-08.1993 |
| MERCEDES BENZ | 190 E 2.5 Evolution II | (201)[M102.992] | 05.1990-08.1993 |
| MERCEDES BENZ | 190 E 2.6 | (201)[M103.942] | 09.1986-12.1989 |
| MERCEDES BENZ | 200 2.0 | (124)[M102.922] | 01.1986-05.1990 |
| MERCEDES BENZ | 200 2.0 Diesel | (124)[OM601.912] | 08.1989-06.1993 |
| MERCEDES BENZ | 200 2.0 TD | (124)[OM601.912] | 09.1985-08.1991 |
| MERCEDES BENZ | 200 E 2.0 | (124)[M102.962] | 09.1988-12.1989 |
| MERCEDES BENZ | 200 E 2.0 | (124)[M102.963] | 09.1988-08.1992 |
| MERCEDES BENZ | 210 2.3 | (601)[M102.942] | 04.1985-01.1990 |
| MERCEDES BENZ | 210 2.3 | (601)[M102.945] | 04.1985-06.1995 |
| MERCEDES BENZ | 210 2.3 | (601)[M102.946] | 04.1985-01.1990 |
| MERCEDES BENZ | 210 2.3 | (601)[M115.955] | 04.1977-10.1989 |
| MERCEDES BENZ | 230 CE 2.3 | (124)[M102.982] | 03.1987-12.1992 |
| MERCEDES BENZ | 230 E 2.3 | (124)[M102.982] | 06.1989-06.1993 |
| MERCEDES BENZ | 250 2.5 Diesel | (124)[OM602.912] | 04.1985-06.1993 |
| MERCEDES BENZ | 250 2.5 TD | (124)[OM602.962] | 04.1985-06.1993 |
| MERCEDES BENZ | 260 E 2.6 | (124)[M103.940] | 09.1985-12.1989 |
| MERCEDES BENZ | 260 E 2.6 4-Matic | (124)[M103.940] | 12.1986-12.1989 |
| MERCEDES BENZ | 260 E 2.6 4-Matic | (124)[M103.943] | 09.1986-12.1989 |
| MERCEDES BENZ | 300 3.0 Diesel | (124)[OM603.912] | 01.1989-06.1993 |
| MERCEDES BENZ | 300 3.0 Diesel | (124)[OM603.960] | 01.1989-06.1993 |
| MERCEDES BENZ | 300 3.0 Diesel | (124)[OM603.963] | 09.1986-01.1989 |
| MERCEDES BENZ | 300 3.0 Diesel 4-Matic | (124)[OM603.913] | 09.1986-08.1992 |
| MERCEDES BENZ | 300 3.0 TD | (124)[OM603.960] | 09.1986-06.1993 |
| MERCEDES BENZ | 300 3.0 TD | (124)[OM603.963] | 01.1988-06.1993 |
| MERCEDES BENZ | 300 3.0 TD 4-Matic | (124)[OM603.960] | 01.1989-06.1993 |
| MERCEDES BENZ | 300 3.0 TD 4-Matic | (124)[OM603.963] | 01.1988-09.1993 |
| MERCEDES BENZ | 300 E 2.9 | (124)[M103.980] | 01.1985-12.1985 |
| MERCEDES BENZ | 300 E 3.0 | (124)[M103.983] | 08.1985-12.1989 |
| MERCEDES BENZ | 300 E 3.0 | (124)[M103.983] | 01.1986-12.1989 |
| MERCEDES BENZ | 300 E 3.0 4-Matic | (124)[M103.983] | 09.1986-12.1989 |
| MERCEDES BENZ | 300 SL 2.9 | (107)[M103.982] | 09.1985-08.1989 |
| MERCEDES BENZ | E 200 2.0 Diesel | (124)[OM601.912] | 06.1993-06.1995 |
| MERCEDES BENZ | E 250 2.5 TD | (124)[OM602.962] | 06.1993-06.1995 |
| MERCEDES BENZ | E 300 3.0 4-Matic | (124)[M103.985] | 06.1993-06.1995 |
| MERCEDES BENZ | E 300 3.0 TD | (124)[OM603.960] | 06.1993-06.1996 |
| MERCEDES BENZ | E 300 3.0 TD | (124)[OM603.960] | 06.1993-06.1995 |
| MERCEDES BENZ | E 300 3.0 TD 4-Matic | (124)[OM603.963] | 06.1993-06.1996 |
| MERCEDES BENZ | E 300 CE 3.0 | (124)[M103.983] | 03.1987-12.1989 |
| MERCEDES BENZ TRUCKS & BUSES | 410 2.3 | (T1/TN)[M102.942](T1/TN)[M102.945] | 04.1985-06.1995 |
| MERCEDES BENZ TRUCKS & BUSES | 510 2.3 | (T2/LN1)[M102.946] | 04.1986-02.2001 |
