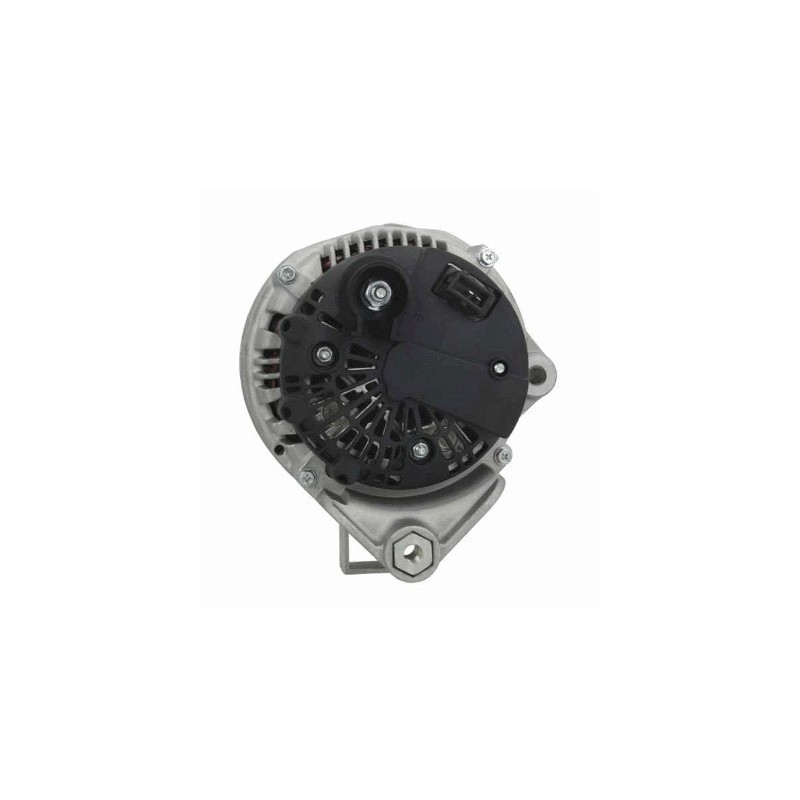

Alternator replacing A14VI28 / 437116 / 12312247389 / 0986044841
Alternator NEW replacing :
BMW 12312247389 / 12312247405
VALEO 2542251 / 2542251A / 2542251B / 437116 / 439235 / A14VI28
NO CORE EXCHANGE NEEDED
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 120 | |
Physical Information | ||
|---|---|---|
| A | Pulley dist. | 60.00 |
| B | Width/holder arm | 27.85 |
| C | Mount. bracket dist | 75.00 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 45 |
| G | Belt. adj. bracket hole | 10.50 |
| H | Pulley dia. | 53.40 |
| I | Grooves/pulley | 5 |
| J | Radius | 94.00 |
| J | Radius 2 | 93.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 60 |
| N | Rotation | Cr |

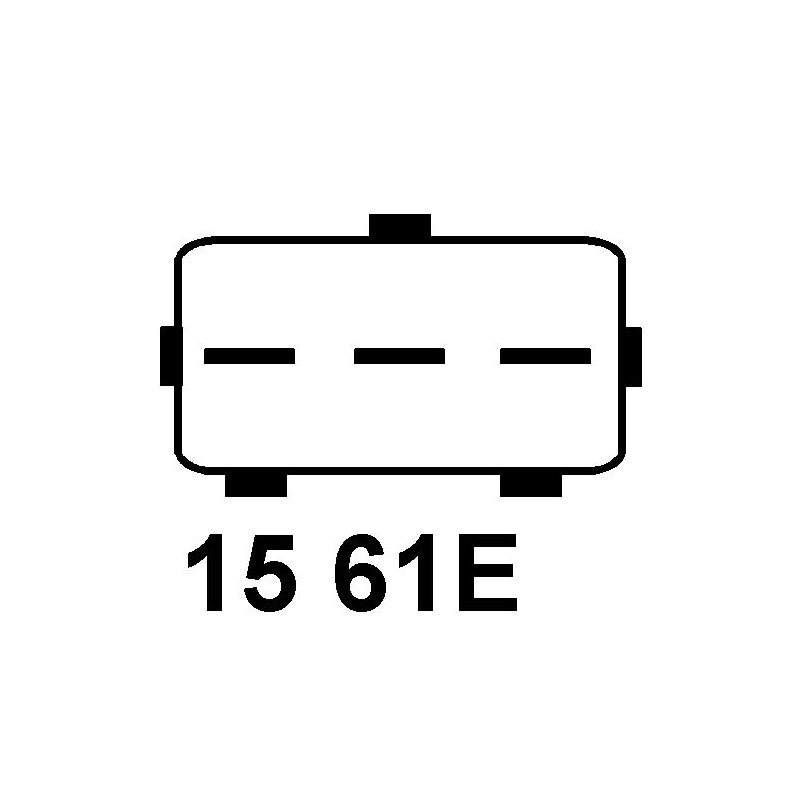

| O | Plug n° 1 | PL52 |
| R | Total length mm | 190.50 |
generic brand
Replacing | ||
|---|---|---|
| 12312247389 | BMW | Pieces |
| 2247389 | BMW | Pieces |
| 2542251 | VALEO | Pieces |
| 2542251A | VALEO | Pieces |
| 2542251B | VALEO | Pieces |
| A14VI28 | VALEO | Pieces |
| CA1559IR | HC-PARTS | |
| 0986044841 | BOSCH l |
| 112462 | Cargo |
| 12044840 | EuroTec |
| 12312247389 | BMW |
| 12312247405 | BMW |
| 2247389 | |
| 22955 | LUCAS |
| 22955N | WAI |
| 22955R | WAI |
| 2542251 | VALEO |
| 2542251A | VALEO |
| 2542251B | VALEO |
| 283851 | Elstock |
| 437116 | VALEO |
| 439235 | VALEO |
| 455507120 | PSH |
| 542251 | VALEO |
| 56847 | EAI |
| 5870SP | Spidan |
| 9090160F | Friesen |
| 933809 | EDR |
| A14VI28 | VALEO |
| ALT0037sa | Electrolog |
| ALT0083sa | Electrolog |
| ALTH111 | UNIPOINT |
| CA1559IR | HC |
| DRA3809 | DELCO REMY |
| HCA1559IR | HC |
| KTR911014240 | KTR |
| L44840 | ATL |
| LRA01955 | LUCAS |
| OAN10380 | Optimum |
Mounted on :
| Brand | Model | Tipo | Year |
| BMW | 320 2.0 Diesel | (E46)[M47204D1] | 02.1998-04.2005 |
| BMW | 320 2.0 Diesel | (E46)[M47D20] | 04.1998-09.2001 |
| BMW | 330 2.9 Diesel | (E46)[M57D30] | 10.1999-02.2005 |
| BMW | 520 2.0 Diesel | (E39)[M47204D1] | 02.2000-06.2003 |
| BMW | 520 2.0 Diesel | (E39)[M47204D1] | 02.2000-09.2003 |
| BMW | 520 2.0 Diesel | (E39)[M47D20] | 02.2000-06.2003 |
| BMW | 520 2.0 Diesel | (E39)[M47D20] | 02.2000-09.2003 |
| BMW | 525 2.5 Diesel | (E39)[M57D25] | 02.2000-06.2003 |
| BMW | 525 2.5 Diesel | (E39)[M57D25] | 02.2000-05.2004 |
| BMW | 530 2.9 Diesel | (E39)[M57D30 (306D1)] | 09.2000-05.2004 |
| BMW | 530 2.9 Diesel | (E39)[M57D30] | 08.1998-09.2000 |
| BMW | 530 2.9 Diesel | (E39)[M57D30] | 09.2000-06.2003 |
| BMW | 530 2.9 TD | (E39)[M57D30] | 08.1998-09.2000 |
| BMW | 730 3.0 Diesel | (E38)[M57D30] | 08.1998-04.2000 |
| BMW | 75 2.0 CDT | [M47] | 01/02/99 |
| BMW | 75 2.0 CDT | [M47] | 01/08/01 |
| BMW | 75 2.0 CDTi | [204D2] | 01/02/03 |
| BMW | X5 3.0 Diesel | (E53)[M57D30(306D1)] | 01/05/01 |
| BMW | Z3 3.2 | (E36)[S54326S4] | 06.2001-01.2003 |
| BMW | Z3 3.2 | (E36)[S54B32] | 06.2001-01.2003 |
| LAND ROVER | Freelanfromr 2.0 TD4 | [204D3] | 01/11/00 |
| LAND ROVER | Freelanfromr 2.0 TD4 | [M47] | 01/11/01 |
| MG | ZT 2.0 CDTi | [M47(204D2)] | 01/11/02 |
| MG | ZT-T 2.0 CDTi | [M47(204D2)] | 01/11/02 |
| ROVER | 75 2.0 CDT | [M47] | 01/02/99 |
| ROVER | 75 2.0 CDT | [M47] | 01/08/01 |
| ROVER | 75 2.0 CDTi | [204D2] | 01/02/03 |
