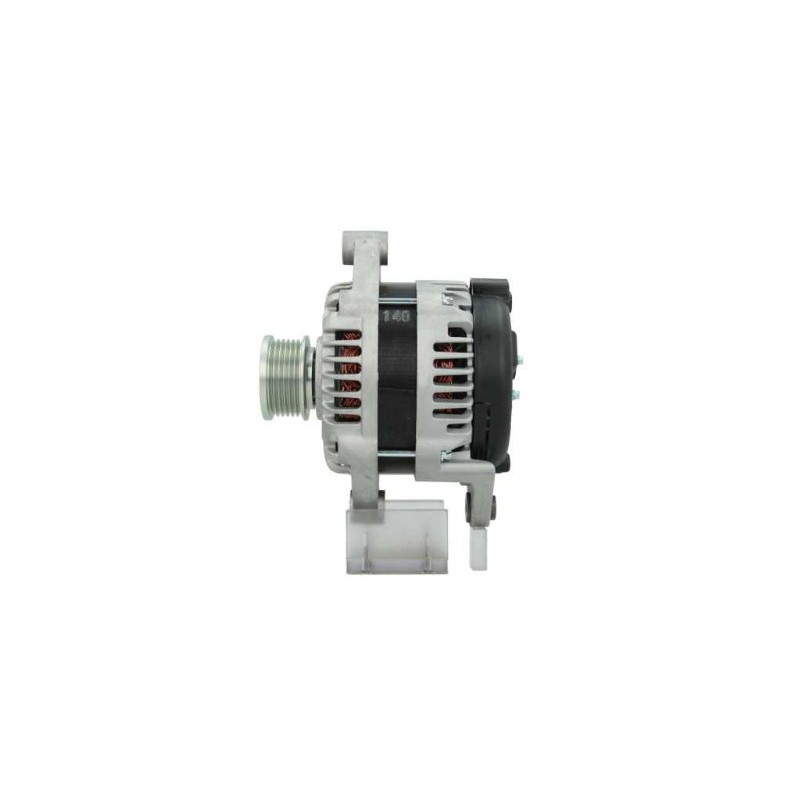

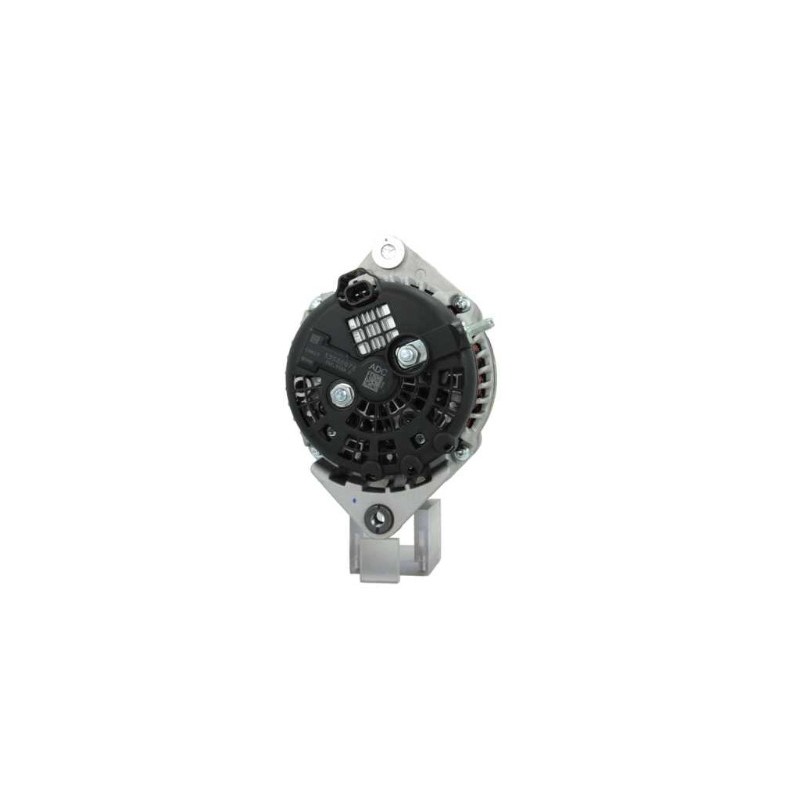

Alternator replacing 13579114 / 4819446 / 13580078 / 13501719
Alternator NEW replacing OPEL 13579114 / 4819446 / CHEVROLET 13580078
DELCO REMY 13501719, 13580078, GM 13501719, 13580078, OPEL 13580078, 4818330, 4819446,VAUXHALL 13501719, 13580078
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 140 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.20 |
| G | Belt. adj. bracket hole | 10.40 |
| B | Width/holder arm | 24.60 |
| E | Belt. adj. brackethole pos. | 1 |
| C | Mount. bracket dist | 59.50 |
| H | Pulley dia. | 55.75 |
| A | Pulley dist. | 61.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 92.00 |
| j | Radius 2 | 92.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

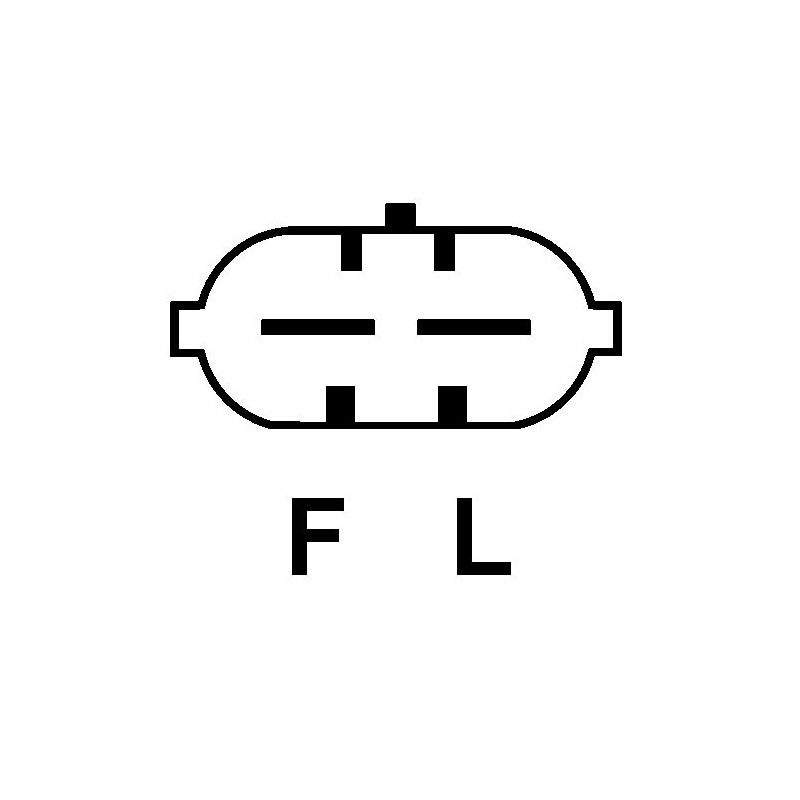

| o | Plug no. 1 | PL180 |
| R | Total length mm | 188.00 |
Replacing | |
|---|---|
| 13579114 | OPEL |
| 13580078 | CHEVROLET |
| 4819446 | OPEL |
generic brand
Mounted on :
CHEVROLET
| Captiva | Captiva | 2.2 | Diesel | 2011 03 | Z22D1 | Diesel | 120 | 163 | 2231 | 4 | KL1C, C140 | ||
| Captiva | Captiva | 2.2 | Diesel | 2011 03 | Z22D1 | Diesel | 120 | 163 | 4x4 | 2231 | 4 | ||
| Cruze | Cruze | 2.0 | Diesel | 2012 08 | LNP | TD | 120 | 163 | Break | 1998 | 4 | J308 | |
| Cruze | Cruze | 2.0 | Diesel | 2011 06 | Z20D1 | CDi | 120 | 163 | Hayon | 1998 | 4 | ||
| Cruze | Cruze | 2.0 | Diesel | 2010 08 | LNP | CDi | 120 | 163 | 1998 | 4 | J300 | ||
| Cruze | Cruze | 2.0 | Diesel | 2010 08 | Z20D1 | CDi | 120 | 163 | 1998 | 4 | J300 | ||
| Orlando | Orlando | 2.0 | Diesel | 2011 02 | Z20D1 | VCDi | 120 | 163 | MPV | 1998 | 4 | KL1Y, J309 |
| Antara | Antara | 2.2 | Diesel | 2010 12 | A22DM | CDTi | 120 | 163 | 2231 | 4 | ||
| Antara | Antara | 2.2 | Diesel | 2010 12 | A22DM | CDTi | 120 | 163 | 4x4 | 2231 | 4 | |
| Antara | Antara | 2.2 | Diesel | 2010 12 | A22DMH | CDTi | 135 | 184 | 4x4 | 2231 | 4 |
OPEL
| Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Tipoe modèle | Engine in cm3 | Cylindres |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Antara | 2.2 | Diesel | 2010 12 | - | A22DM | CDTi | 120 | 163 | 2231 | 4 | |
| Antara | 2.2 | Diesel | 2010 12 | - | A22DM | CDTi | 120 | 163 | 4x4 | 2231 | 4 |
| Antara | 2.2 | Diesel | 2010 12 | - | A22DMH | CDTi | 135 | 184 | 4x4 | 2231 | 4 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
