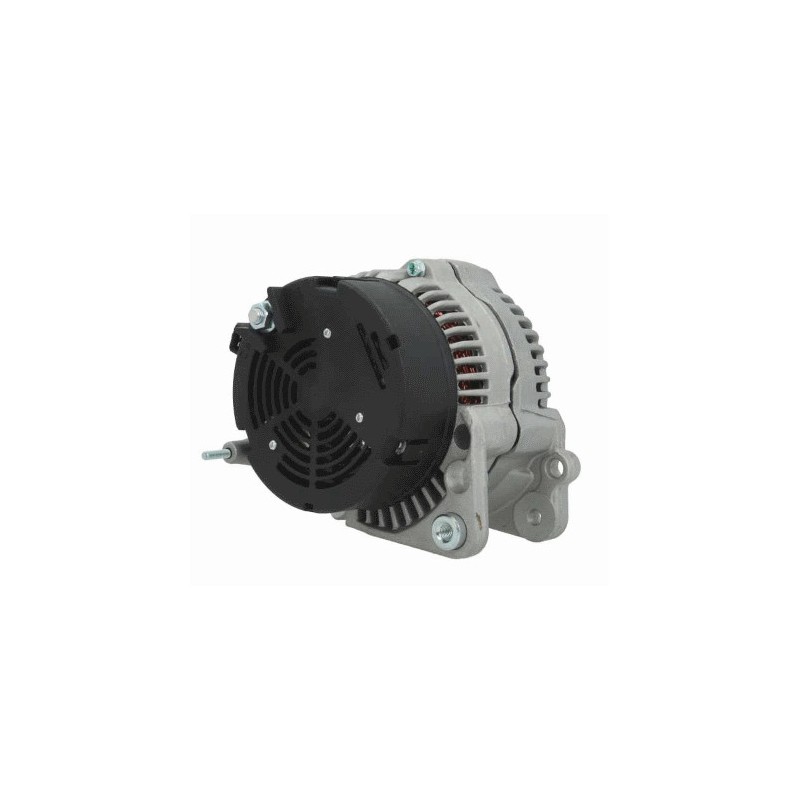

Alternator replacing VALEO A11VI66 / A11VI22 / A11VI21

Information:

Voltage 14

Amp 70

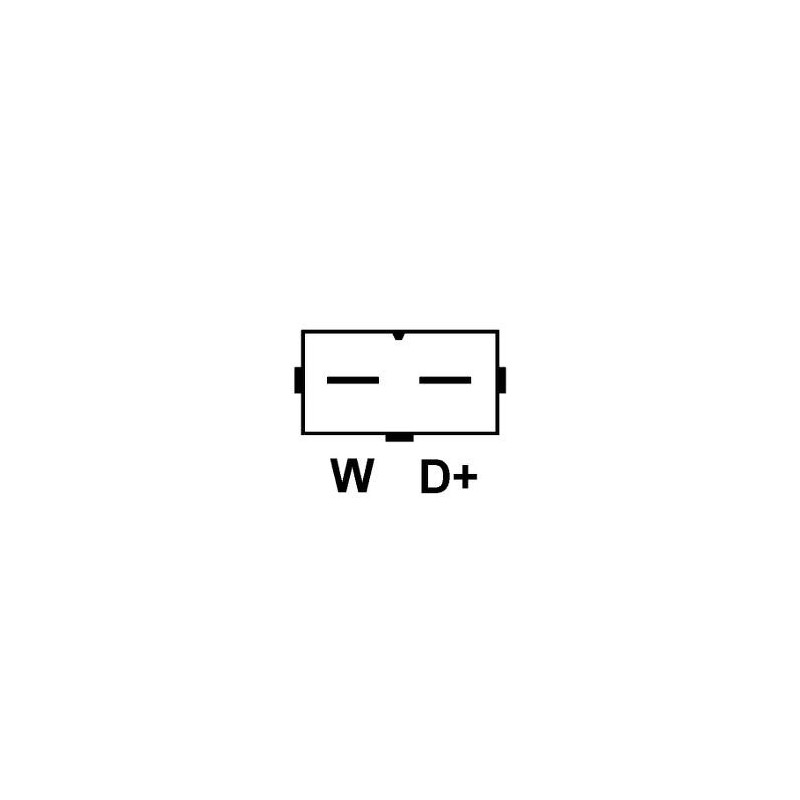

Plug type W

D = Bracket hole 8.35

G = Belt. adj. bracket hole 9.60/37.70

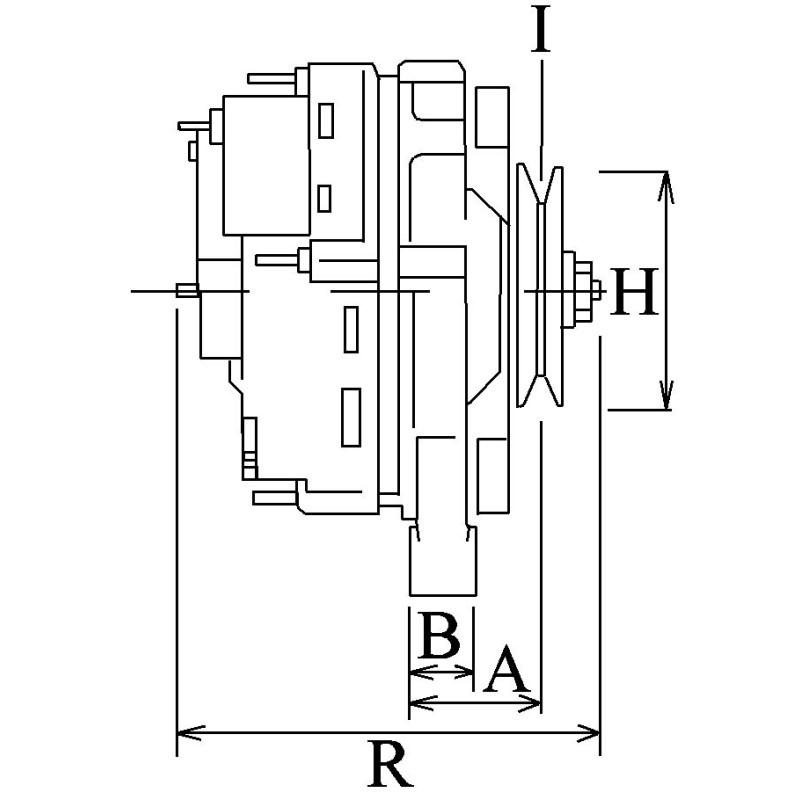

B = Width/holder arm 14.65

E = Belt. adj. brackethole pos. 14

C = Mount. bracket dist 59.80

H = Pulley dia. 50.45

A = Pulley dist. 39.45

Grooves/pulley 6

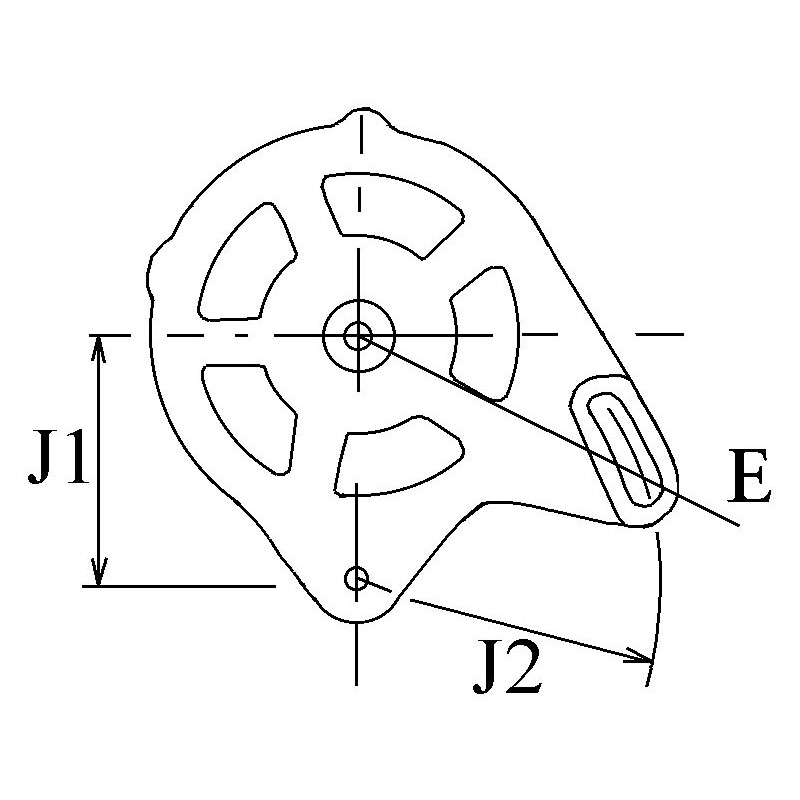

J = Radius 90.00

J = Radius 111.00

Position B + M8

Rotation Cr

Plug no. 1 PL23

Fan If

Pulley Serpentine Pulley

R = Total length mm 190.50

generic brand

=AUDI 030903023EX / 30903023BX / 028903025GX / 030903023D / 030903023AX / 030903023A / 30903023D / 30903023B 030903023DX / 30903023G / 030903023G / 030903023BX / 30903023A / 30903023AX / 28903025G / 30903023E / 30903023DX / 28903025GX / 030903023B / 028903025G

= DELCO REMY DRA3267

= VALEO 2541821A / 2541821 / 2541415 / 2541410 / 436364 / 436363 / 2541415G / 2541415H / 2541821A

= BOSCH B120411204 / B120310087 / 0123315001 / 0123310020 / 0123310002 / 0986038071

0123114005 / 0123110002 / 0120485034 / 0120335010

= ISKRA AAK5169 / 11.201.889

= HELLA 8EL730030001 / CA732IR / CA733IR / 8EL730031001

= Katek 9462.3701

= LUCAS LRB144

= SEAT 30903023E / 030903023E / 030903023D / 030903023DX / 30903023EX / 030903023EX / 030903023B / 30903023B 30903023DX / 028903025G / 28903025G /  030903023A

= SKODA 28903025GX / 028903025G / 028903025GX

= VOLKSWAGEN 028903025g / 028903025GX / 030903023a / 030903023b / 030903023BX / 030903023d / 030903023DX / 030903023e / 030903023EX

                             NO CORE EXCHANGE NEEDED
