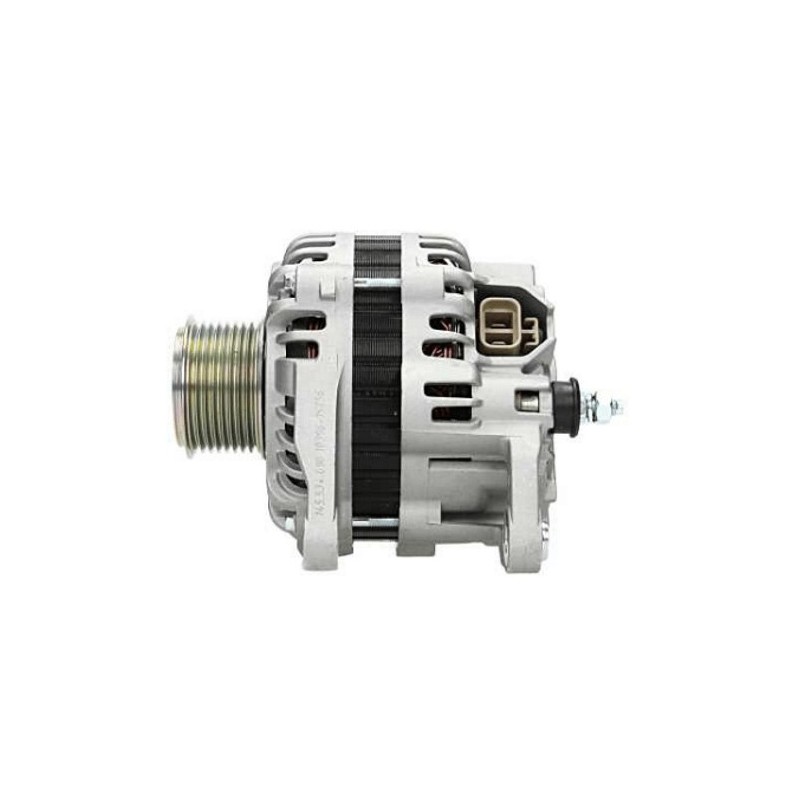

Alternator replacing A003TB4981 / A3TB4981 / RF5C-18-300
| 0986083480 | Bosch ruil |
| 114112 | Cargo |
| 12060817 | EuroTec |
| 145534090 | PSH |
| 224162902 | DRI |
| 284799 | Elstock |
| 57273 | EAI |
| 6326SP | Spidan |
| 9090469F | Friesen |
| 9330 | CEVAM |
| A003TB4981 | Mitsubishi |
| A003TB4981A | Mitsubishi |
| A3TB4981 | Mitsubishi |
| A3TB4981A | Mitsubishi |
| AMA422 | ATK |
| DRA0115 | Remy |
More info

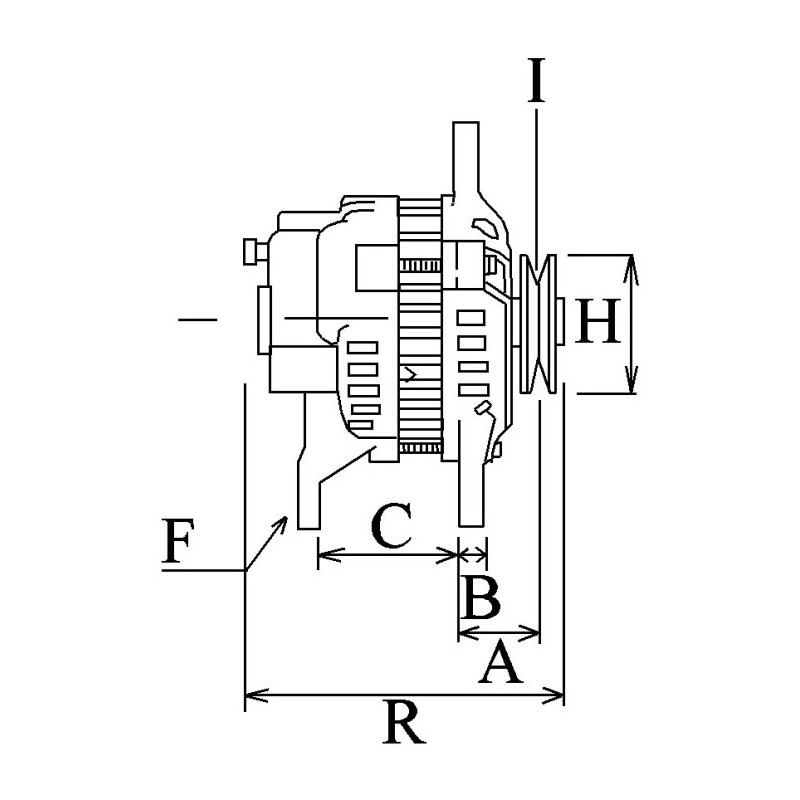

Physical information | ||
|---|---|---|
| A | Pulley dist. | 39.00 |
| B | Width/holder arm | 13.10 |
| C | Mount. bracket dist. | 65.00 |
| D | Bracket hole | M10 |
| E | Belt. adj. brackethole pos. | 45 |
| G | Belt. adj. bracket hole | M10 |
| H | Pulley dia. | 59.50 |
| I | Grooves/pulley | 8 |
| J | Radius | 89.00 |
| J | Radius 2 | 99.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 37 |
| N | Rotation | CW |
| O | Plug no. | PL07 |
Catalogue information | ||
|---|---|---|
| Pulley | SP/FW | |
| Regulator type | IR | |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |
generic brand
replacing
| 0986083480 | Bosch ruil |
| 114112 | Cargo |
| 12060817 | EuroTec |
| 145534090 | PSH |
| 224162902 | DRI |
| 284799 | Elstock |
| 57273 | EAI |
| 6326SP | Spidan |
| 9090469F | Friesen |
| 9330 | CEVAM |
| A003TB4981 | Mitsubishi |
| A003TB4981A | Mitsubishi |
| A3TB4981 | Mitsubishi |
| A3TB4981A | Mitsubishi |
| AMA422 | ATK |
| DRA0115 | Remy |
| HJA1896IR | HC |
| J5113056 | Herth Buss |
| JA1896IR | HC |
| L83020 | ATL |
| LRA02309 | Lucas |
| LRA2309 | Lucas |
| N5113067 | Nipparts |
| RF5C18300 | Mazda |
| RF5C18300A | Mazda |
| RNLA3TB4981 | RNL |
| TRA029 | TWA |
