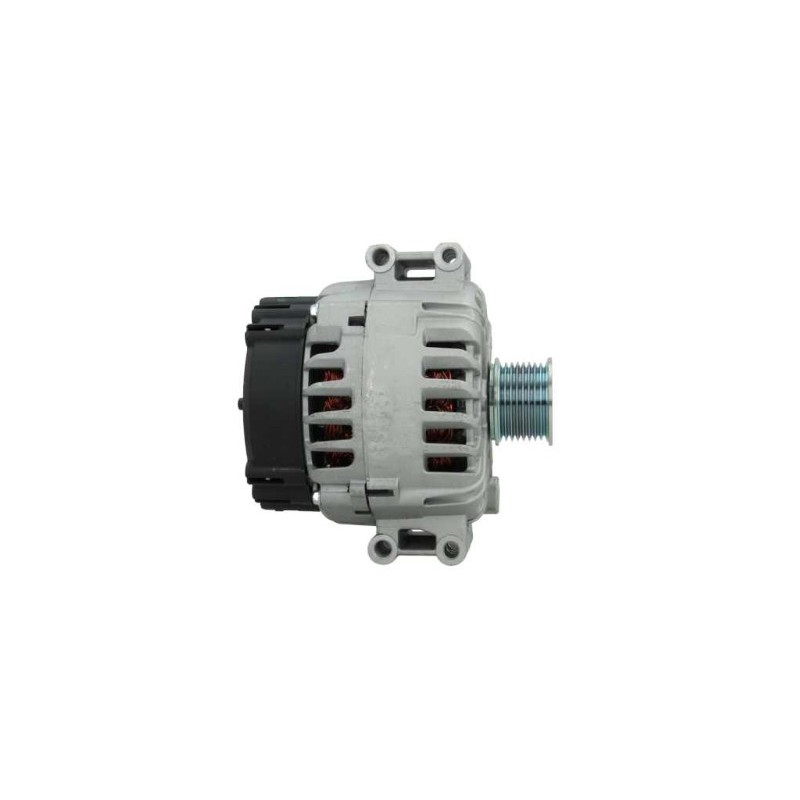

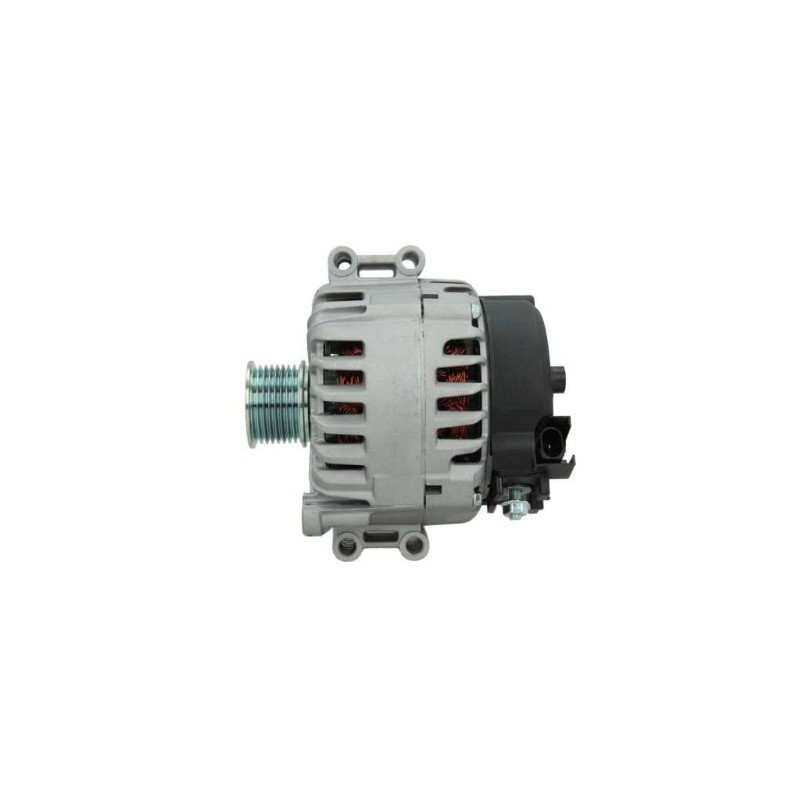

Alternator replacing VALEO TG23C018 / TG23C033 / 2610240A / 2610240
Alternator NEW replacing VALEO TG23C018 / TG23C033 / 2610240A / 2610240 / 2543436C / 2543436B / 2543436 / 439640 / 440206
= BMW 12317573754 / 12317573755 / 12317603778
DRA0729 / LRA03232
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 230 | |
Generic brand

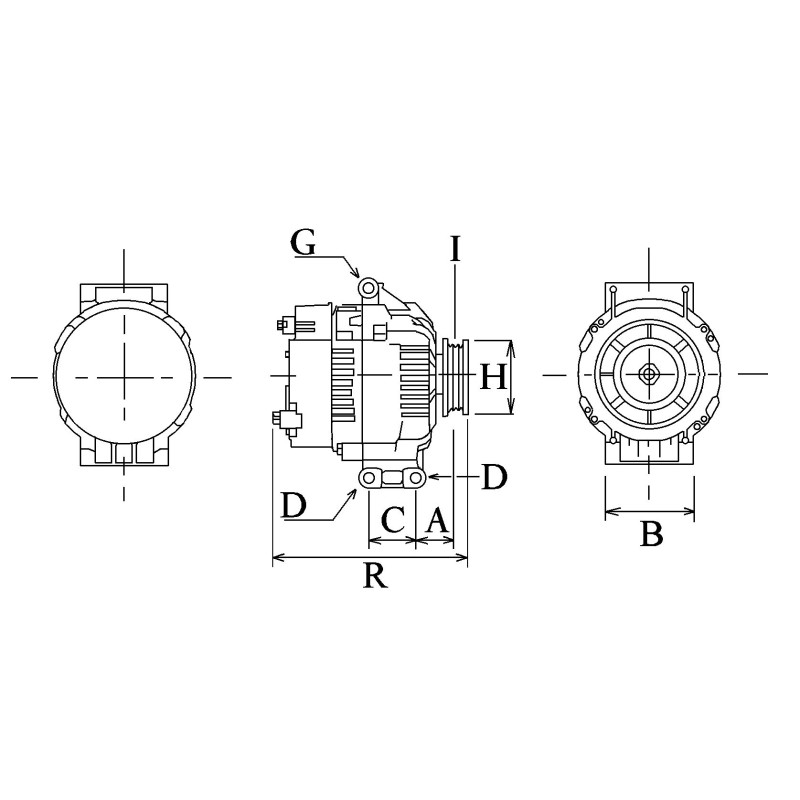

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.00 |
| G | Belt. adj. bracket hole | 10.00 |
| B | Width/holder arm | 63.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 40.70 |
| H | Pulley dia. | 50.00 |
| A | Pulley dist. | 29.40 |
| i | Grooves/pulley | 8 |
| j | Radius | 87.00 |
| j | Radius 2 | 87.00 |
| k | Position B + | M8x1.25 |
| n | Rotation | CW |

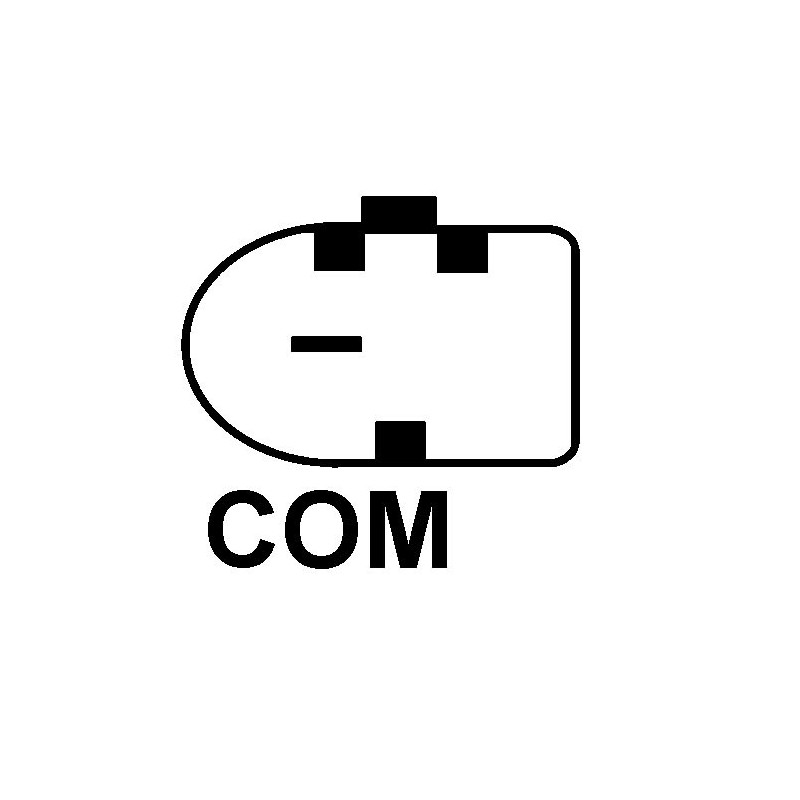

| o | Plug no. 1 | PL125 |
| D | Trou from fixation support 2 | 10.00 |
| R | Total length mm | 191.00 |
Replacing | |
|---|---|
| 12317573754 | BMW |
| 12317573755 | BMW |
| 12317603778 | BMW |
| 2543436 | VALEO |
| 2543436B | VALEO |
| 2543436C | VALEO |
| 2610240 | VALEO |
| 2610240A | VALEO |
| TG23C018 | VALEO |
| TG23C033 | VALEO |
Mounted on :
BMW
| 7 | 740 | 3.0 | Unleaded | 2008 10 | - | N54B30A | i | 240 | 326 | 2979 | 6 | F01, F02 | |
| X6 | X6 | 3.0 | Unleaded | 2008 05 | - | N54B30A | iX | 225 | 306 | MPV | 2979 | 6 | E71 |
