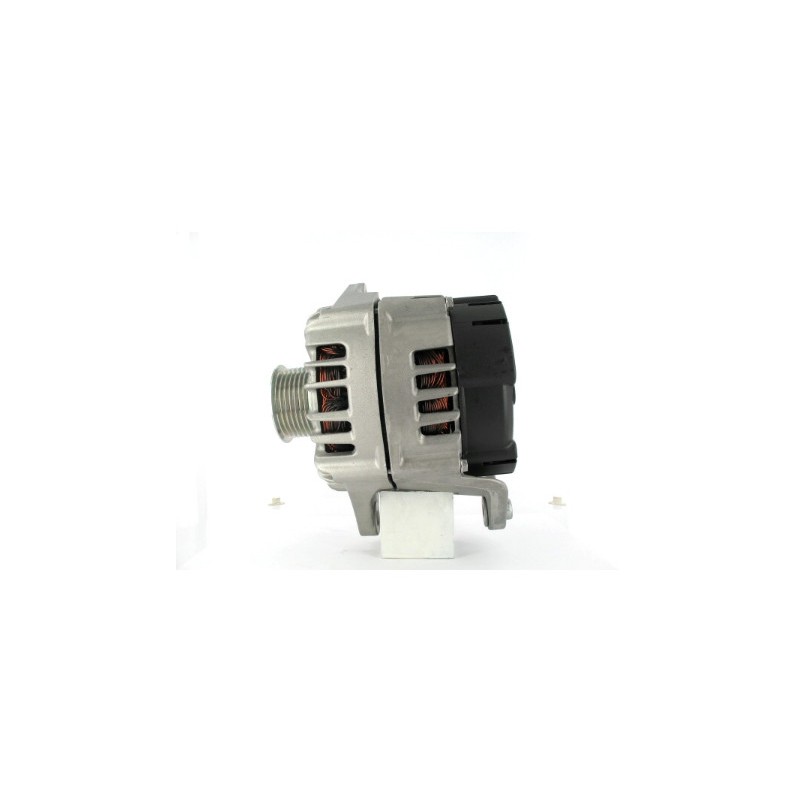

Alternator replacing VALEO fg18s023 / FG18S109 / 2617195A
Alternator NEW replacing VALEO 2543539 / 2543539A / 2617195A
= IVECO / FIAT 504280010 / 5801526031
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 180 | |
Physical Information:
| D | Bracket hole | 10.00 |
| G | Belt. adj. bracket hole | 10.50 |
| B | Width/holder arm | 14.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 83.50 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 41.00 |
| i | Grooves/pulley | 7 |
| j | Radius | 93.25 |
| j | Radius 2 | 96.38 |
| k | Position B + | M8 |
| n | Rotation | CW |
| o | Plug no. 1 | PL61 |
| R | Total length mm | 180.00 |
generic brand
Replacing | |
|---|---|
| 2543539 | VALEO |
| 2543539A | VALEO |
| 2617195A | VALEO |
| 504280010 | FIAT |
| 504280010 | IVECO |
| 51787164 | IVECO |
| 5801526031 | FIAT |
| ca2090ir | HC-PARTS |
| fg18s023 | VALEO |
| FG18S109 | VALEO |
Mounted on :
IVECO
FIAT
