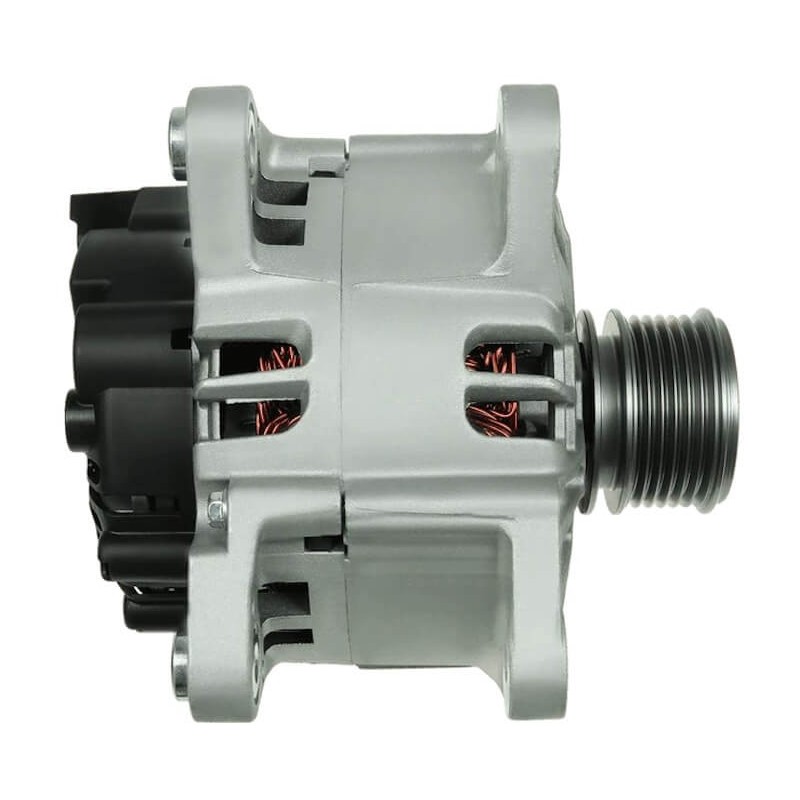

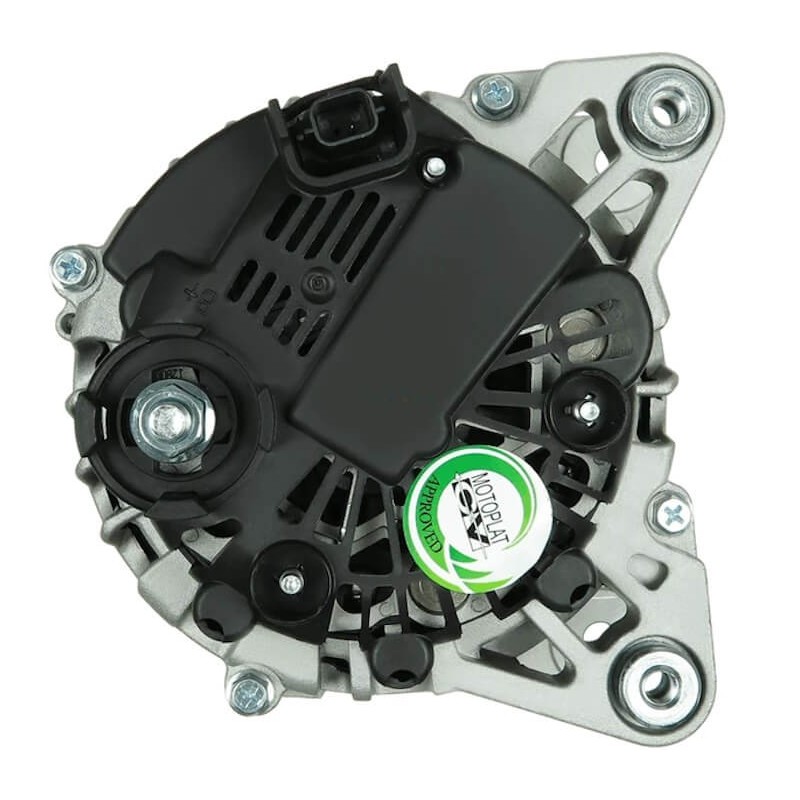

Alternator replacing TG12C124 / 23100-7865R / 2612718A
| 2310007865 | Nissan |
| 2310007865A | Nissan |
| 2310007865R | Nissan |
| 231001318 | Renault |
| 231001318R | Nissan |
| 231003424R | Nissan |
| 231007865 | Renault |
| 231007865R | Nissan |
| 231007865RA | Nissan |
| 231008918R | Nissan |
| 2612718 | Valeo |
| 2612718A | Valeo |
| 2627732A | Valeo |
| 2714146A | Valeo |
More info
Physical information | ||
|---|---|---|
| A | Pulley dist. | 38.20 |
| B | Width/holder arm | 14.00 |
| C | Mount. bracket dist. | 61.00 |
| D | Bracket hole | 8.60 |
| E | Belt. adj. brackethole pos. | 45 |
| G | Belt. adj. bracket hole | 8.60 |
| G | Belt. adj. bracket hole 2 | M8 |
| H | Pulley dia. | 55.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 90.00 |
| J | Radius 2 | 90.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 50 |
| N | Rotation | CW |

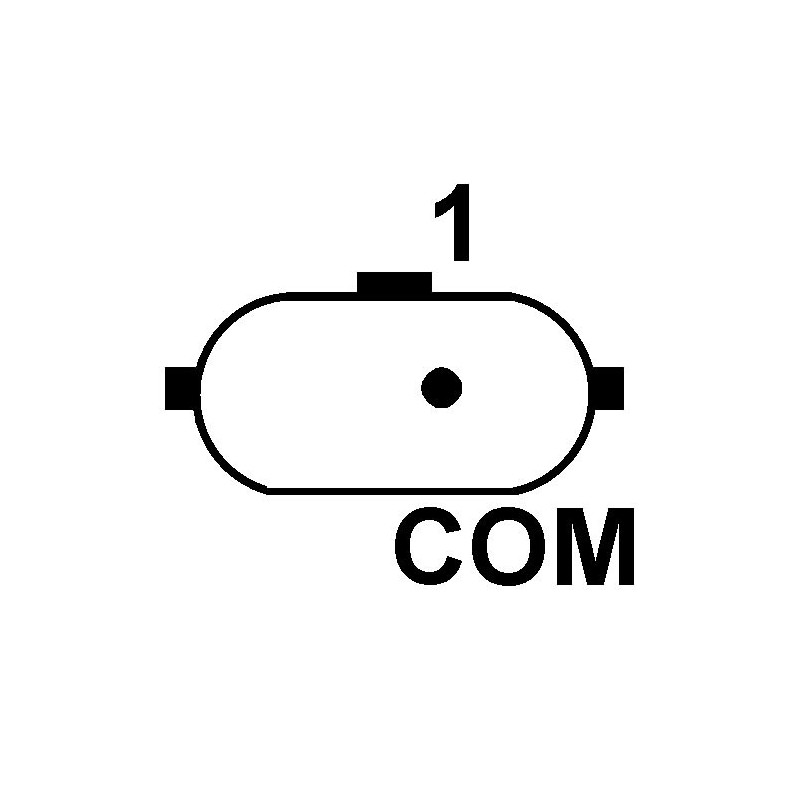

| O | Plug no. | PL131 |
| R | Total length mm | 193.00 |
| Terminal type | COM | |
This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering
Catalogue information | ||
|---|---|---|
| Pulley | SP/FW | |
| Regulator type | IR | |
| Remarks | ||
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 120 | |
generic brand
replacing
| 0986084780 | Bosch ruil |
| 115903 | Cargo |
| 14201382 | AES |
| 200271 | Valeo |
| 2310007865 | Nissan |
| 2310007865A | Nissan |
| 2310007865R | Nissan |
| 231001318 | Renault |
| 231001318R | Nissan |
| 231003424 | Renault |
| 231003424R | Nissan |
| 231007865 | Renault |
| 231007865R | Nissan |
| 231007865RA | Nissan |
| 231008918 | Renault |
| 231008918R | Nissan |
| 2612718 | Valeo |
| 2612718A | Valeo |
| 2627732A | Valeo |
| 2714146A | Valeo |
| 286827 | Elstock |
| 439829 | Valeo |
| 439983 | Valeo |
| 440503 | Valeo |
| 440755 | Valeo |
| 575947120 | PSH |
| 612718 | Valeo |
| 714146 | Valeo |
| ALT14541 | Wood Auto |
| DRA1396 | Remy |
| DRA1468 | Remy |
| DRA1591 | Remy |
| LRA03716 | Lucas |
| LRA3716 | Lucas |
| RNLTG12C124 | RNL |
| TG12C124 | Valeo |
| TG12C241 | Valeo |
| TG12S275 | Valeo |
Fits :
| Brand | Model | Typ | Year | Remarqks |
| DACIA | Dokker 1.5 dCi | [K9K612] | 01/11/12 | |
| DACIA | Logan MCV 1.5 dCi | [K9K626] | 01/02/13 | AC |
| DACIA | Duster 1.5 dCi | [K9K856] | 01/08/13 | AC |
| DACIA | Logan 1.5 dCi | [K9K830] | 01/01/13 | AC |
| DACIA | Dokker 1.5 dCi | [K9K612] | 01/12/12 | |
| DACIA | Logan MCV 1.5 dCi | [K9K830] | 01/02/13 | AC |
| DACIA | Duster 1.5 dCi | [K9K884] | 01/10/10 | AC |
| DACIA | Duster 1.5 dCi | [K9K892] | 01/10/10 | AC |
| DACIA | Sandero 1.5 dCi | [K9K612] | 01/10/12 | |
| DACIA | Sandero 1.5 dCi | [K9K626] | 01/10/12 | |
| DACIA | Dokker 1.5 dCi | [K9K612] | 01/11/12 | |
| DACIA | Dokker 1.5 dCi | [K9K612] | 01/12/12 | |
| DACIA | Duster 1.5 dCi | [K9K658] | 01/08/13 | AC |
| DACIA | Duster 1.5 dCi | [K9K856] | 01/08/13 | AC |
| DACIA | Duster 1.5 dCi | [K9K884] | 01/10/10 | AC |
| DACIA | Duster 1.5 dCi | [K9K892] | 01/10/10 | AC |
| DACIA | Duster 1.5 dCi 4x4 | [K9K658] | 01/08/13 | AC |
| DACIA | Duster 1.5 dCi 4x4 | [K9K858] | 01/08/13 | AC |
| DACIA | Logan 1.5 dCi | [K9K612] | 01/10/12 | AC |
| DACIA | Logan 1.5 dCi | [K9K626] | 01/10/12 | AC |
| DACIA | Logan 1.5 dCi | [K9K830] | 01/01/13 | AC |
| DACIA | Logan MCV 1.5 dCi | [K9K612] | 01/02/13 | AC |
| DACIA | Logan MCV 1.5 dCi | [K9K626] | 01/02/13 | AC |
| DACIA | Logan MCV 1.5 dCi | [K9K830] | 01/02/13 | AC |
| DACIA | Sandero 1.5 dCi | [K9K612] | 01/10/12 | |
| DACIA | Sandero 1.5 dCi | [K9K626] | 01/10/12 | |
| DACIA | Duster 1.5 dCi 4x4 | [K9K658] | 01/08/13 | AC |
| DACIA | Duster 1.5 dCi | [K9K658] | 01/08/13 | AC |
| DACIA | Logan 1.5 dCi | [K9K612] | 01/10/12 | AC |
| DACIA | Logan 1.5 dCi | [K9K626] | 01/10/12 | AC |
| DACIA | Duster 1.5 dCi 4x4 | [K9K858] | 01/08/13 | AC |
| DACIA | Logan MCV 1.5 dCi | [K9K612] | 01/02/13 | AC |
