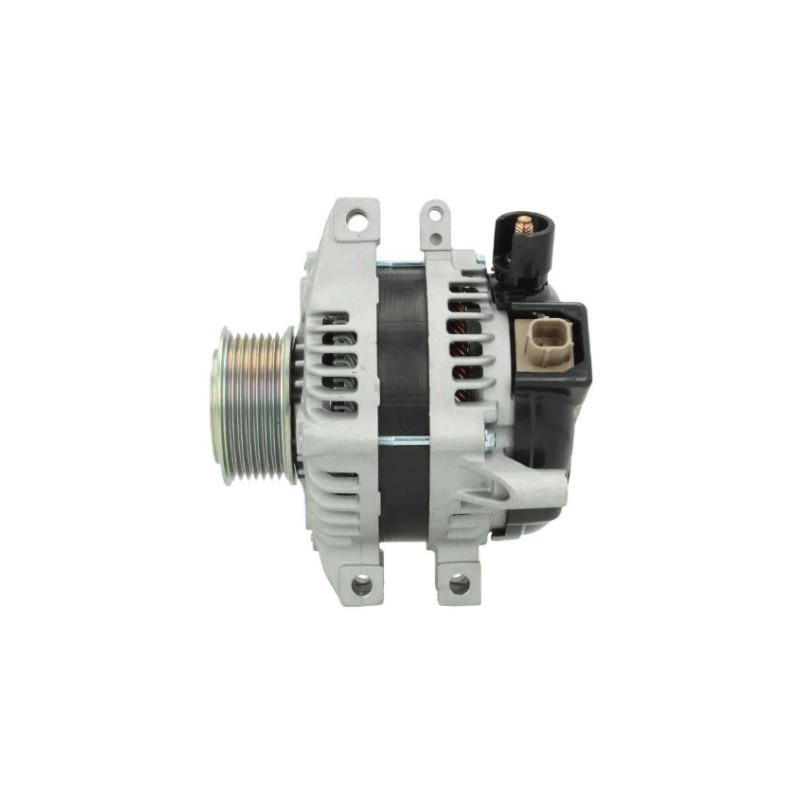

Alternator replacing 104210-2260 / 31100-RL0-G01
| 1042102260 | Denso |
| 125558090 | PSH |
| 31100RL0G01 | Honda |
| ALT30720 | Wood Auto |
| RNL1042102660 | RNL |
| RNL1042102660B | RNL |
| RNL2660NP | RNL |
| WOOALT30720 | Wood Auto |
More info
Physical information | ||
|---|---|---|
| A | Pulley dist. | 36.00 |
| B | Width/holder arm | 46.00 |
| C | Mount. bracket dist. | 43.50 |
| D | Bracket hole | 8.80 |
| D | Bracket hole 2 | 9.00 |
| G | Belt. adj. bracket hole | 8.80 |
| H | Pulley dia. | 65.00 |
| I | Grooves/pulley | 7 |
| J | Radius | 80.00 |
| J | Radius 2 | 82.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 57 |
| N | Rotation | CW |
| O | Plug no. 1 | PL60 |
| R | Total length mm | 164.00 |

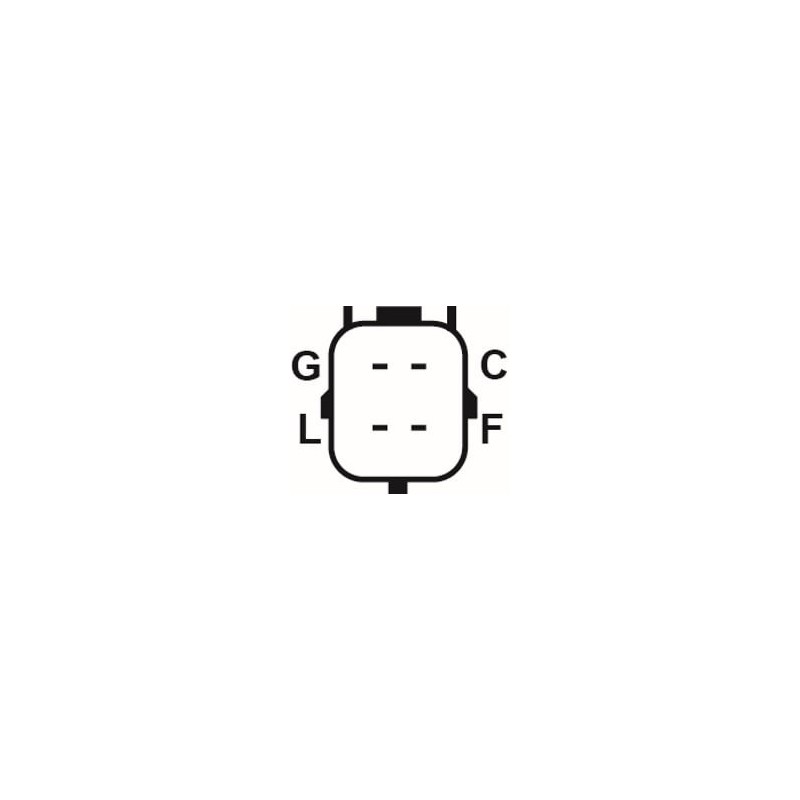

| Terminal type | L-IG-FR-C | |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |
generic brand
for
| Model | Model series | size | Fuel | From date | To date | Engine brand | Engine type | KW | Vehicle horse power |
| Accord | Accord | 2.2 | Diesel | 2008 07 | 2015 06 | N22B1 | i-DTEC | 110 | 150 |
| Accord | Accord | 2.2 | Diesel | 2008 07 | 2015 06 | N22B2 | i-DTEC | 132 | 180 |
| Accord | Accord | 2.2 | Diesel | 2008 07 | - | N22B2 | i-DTEC | 132 | 180 |
| Accord | Accord | 2.2 | Diesel | 2008 07 | - | N22B1 | i-DTEC | 110 | 150 |
| CR-V | CR-V | 2.2 | Diesel | 2007 01 | - | N22B3 | i-DTEC | 110 | 150 |
