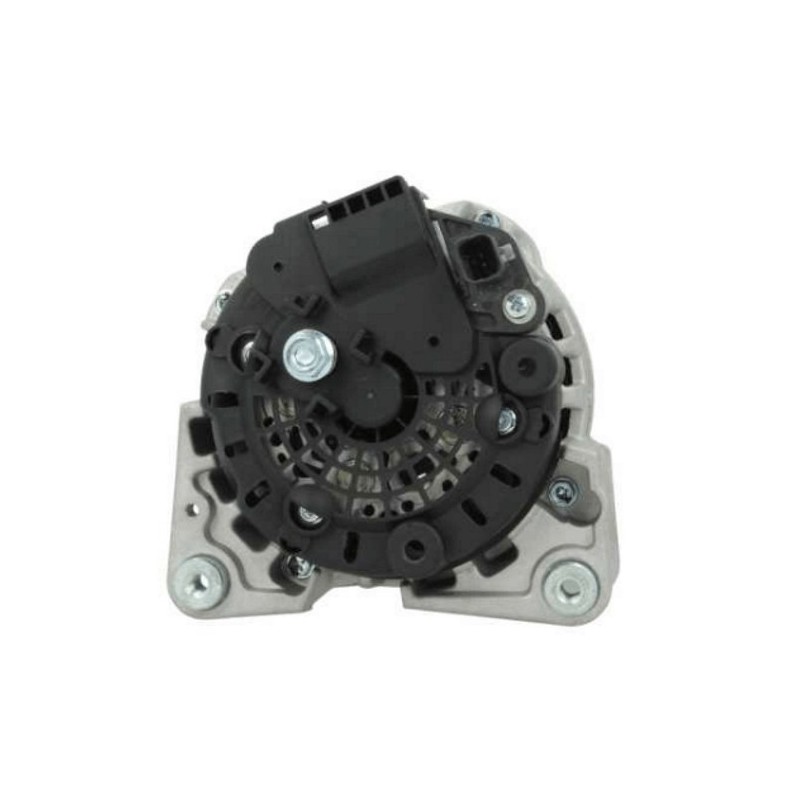

Alternator replacing F000BL0408 / F000BL04C9 / F000BL04CU
| 231002299 | Renault | |
| 231005780R | Renault | |
| 231007175 | Renault | |
| 231007175R | Renault | |
| 231007633 | Renault | |
| 231007633R | Nissan | |
| 231008432 | Renault | |
| 231008432R | Nissan | |
| 286700 | Elstock | |
| 446541 | Valeo | |
| 4504 | CEVAM | |
| 57237 | EAI | |
| 931220 | EDR | |
| ALT1383sa | Electrolog | |
| DRA1220 | Remy |
More info
Physical information | ||
|---|---|---|
| A | Pulley dist. | 39.00 |
| B | Width/holder arm | 14.00 |
| C | Mount. bracket dist. | 61.00 |
| D | Bracket hole | 8.50 |
| E | Belt. adj. brackethole pos. | 45 |
| G | Belt. adj. bracket hole | 8.50 |
| H | Pulley dia. | 55.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 90.00 |
| J | Radius 2 | 90.00 |
| K | B+ | M8 |
| N | Rotation | CW |

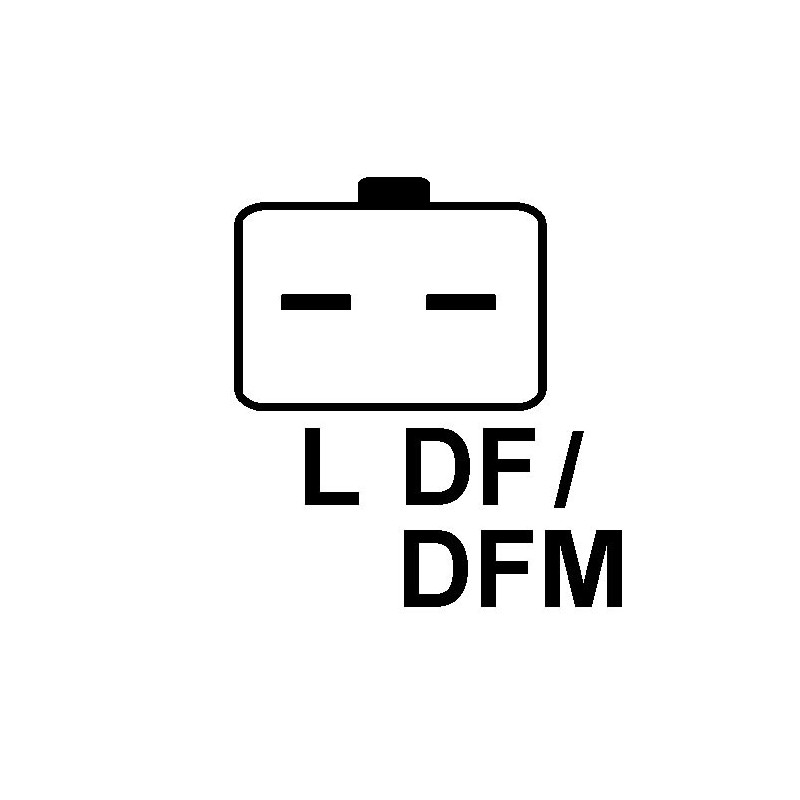

| O | Plug no. | PL72 |
| R | Total length mm | 173.50 |
Catalogue information | ||
|---|---|---|
| Pulley | SP | |
| Regulator type | IR | |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |
generic brand
replacing
| 116175 | Cargo |
| 12090429 | EuroTec |
| 231002299 | Renault |
| 231005780R | Renault |
| 231007175 | Renault |
| 231007175R | Renault |
| 231007633 | Renault |
| 231007633R | Nissan |
| 231008432 | Renault |
| 231008432R | Nissan |
| 286700 | Elstock |
| 446541 | Valeo |
| 4504 | CEVAM |
| 57237 | EAI |
| 575950090 | PSH |
| 931220 | EDR |
| ALT1383sa | Electrolog |
| DRA1220 | Remy |
| F000BL0408 | Bosch |
| F000BL04C9 | Bosch |
| F000BL04CU | Bosch |
| F000BL04E9 | Bosch |
| F000BL04F0 | Bosch |
| F000BL04L8 | Bosch |
| F000BL04M7 | Bosch |
| F000BL04T9 | Bosch |
| LRA03590 | Lucas |
| LRA03826 | Lucas |
