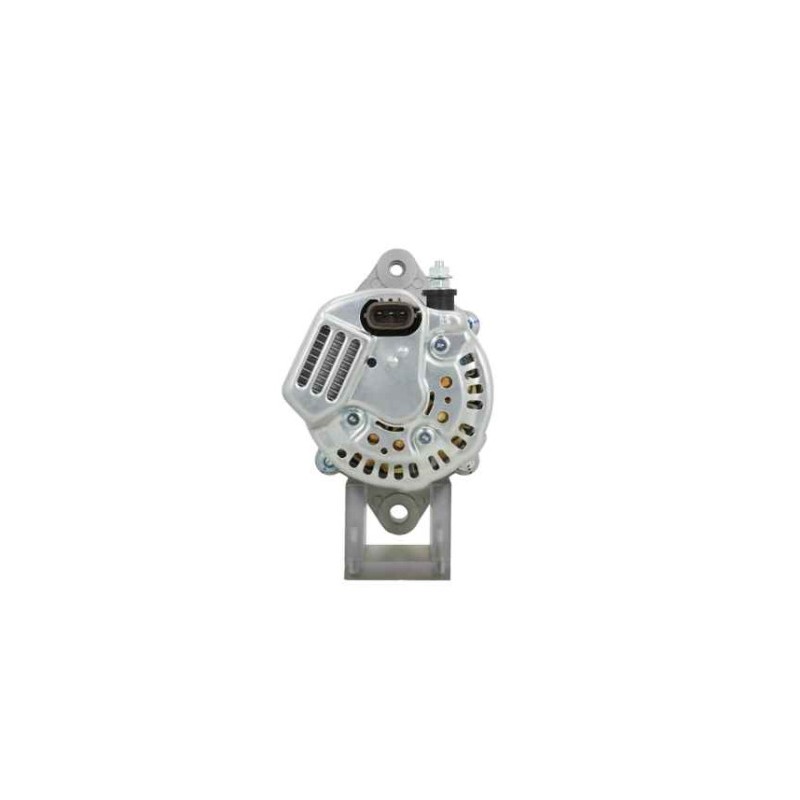

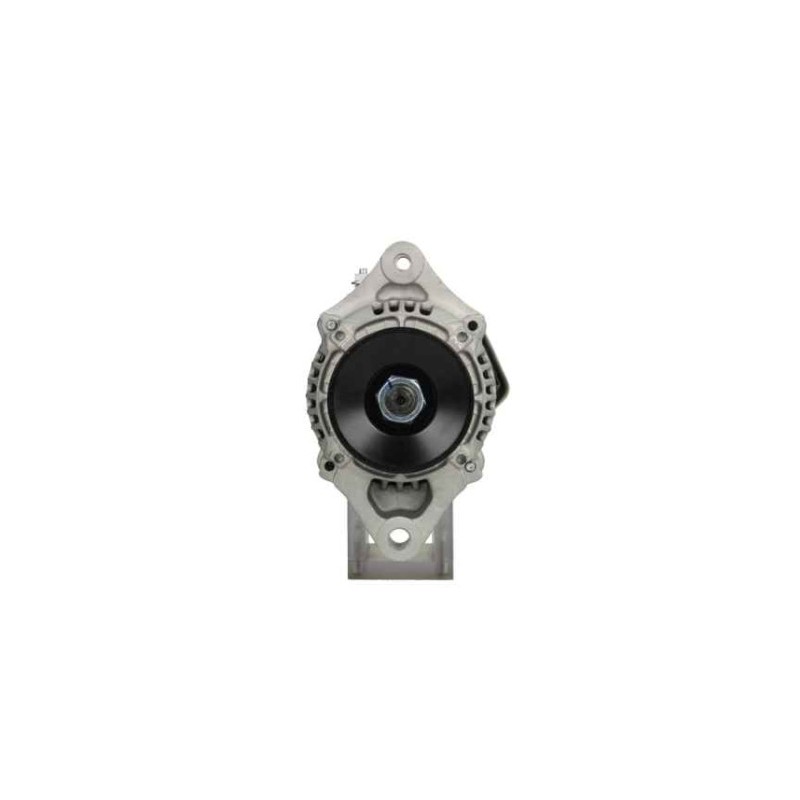

Alternator replacing DENSO 101211-1030 for KUBOTA

Information:

Voltage 14

Amp 40

D = Bracket hole 10.00

G = Belt. adj. bracket hole M8

B = Width/holder arm 24.00

E = Belt. adj. brackethole pos. 60

H = Pulley dia. 69.00

A = Pulley dist. 44.00

Grooves/pulley 1

J = Radius 71.00

J = Radius 68.00

Position B + M6

Rotation Cr

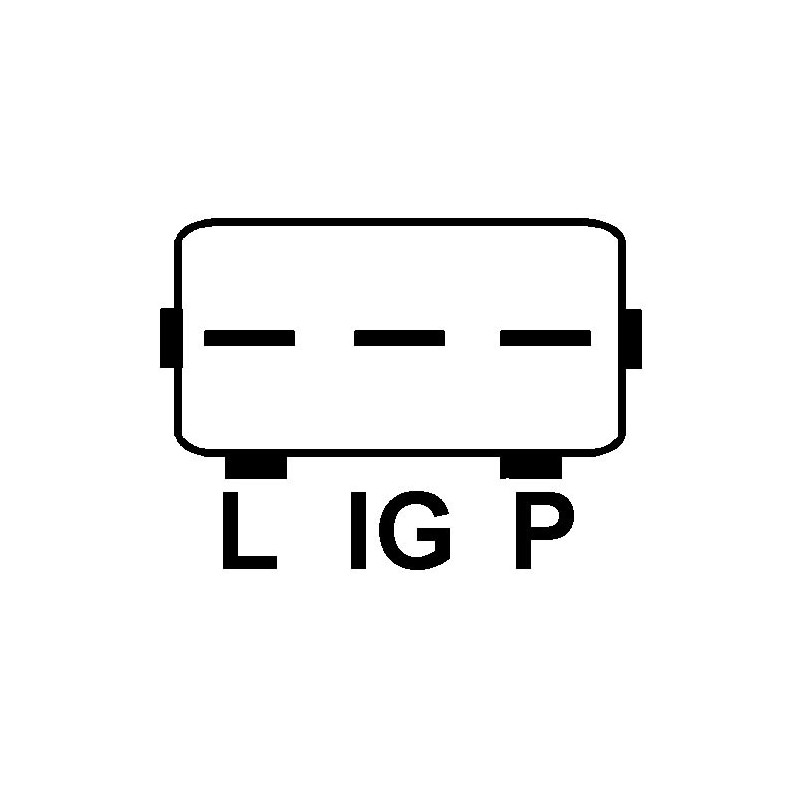

Plug no. 1 PL128

Fan If

Pulley Pulley

R = Total length mm 145.00

= DENSO 101211-1030

= KUBOTA 16404-64012

TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
