Alternator ISKRA replacing BOSCH 0120339525 / 0120339524

Information:

Voltage 14

Amp 50

D = Bracket hole M8

G = Belt. adj. bracket hole M8

B = Width/holder arm 56.00

E = Belt. adj. brackethole pos. 10

Pulley dia. 72.50

Pulley dist. 78.50

Grooves/pulley 1

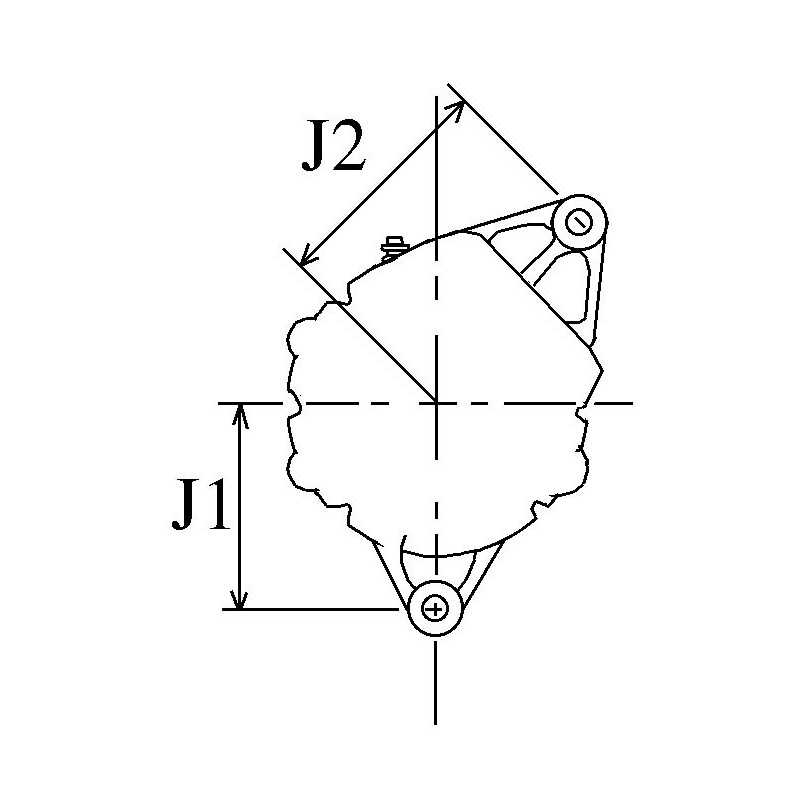

J = Radius 89.50

J = Radius 88.50

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley

R = Total length mm 171.00

= BOSCH 0120339525 / 0120339524 /
0120300560 / 0120300531 / 0120300530

= Butec 858885 / 860150

= MOTOROLA 510-249

= OPEL 1204110

= PRESTOLITE PBNA0584 / 20130133

= VALEO 2927990

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY
