Alternator replacing MAGNETI MARELLI
Alternator NEW replacing MAGNETI MARELLI 63304800 / 63303500 / 63303192
€119.90

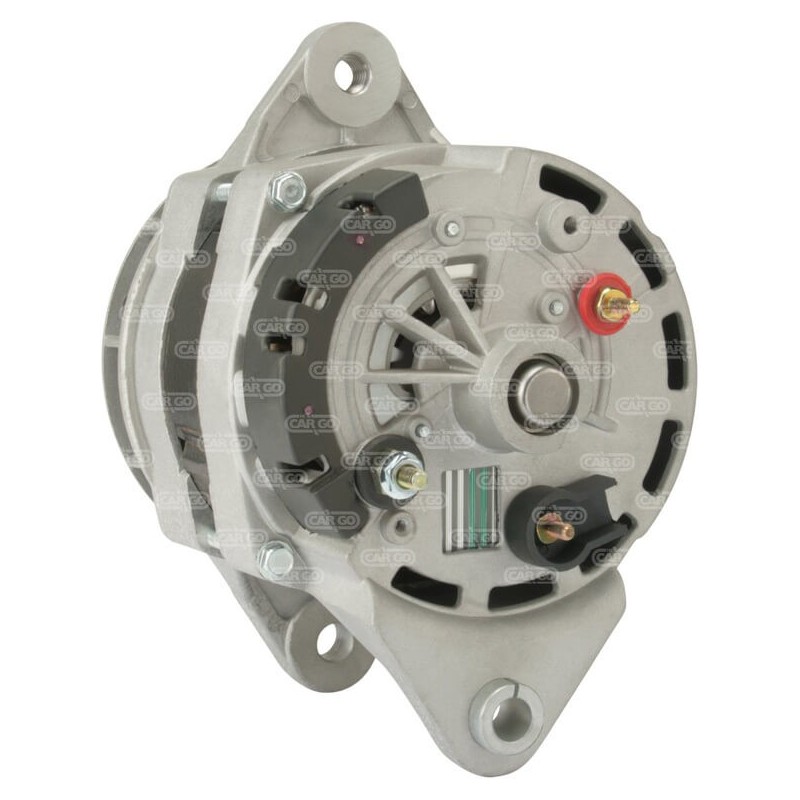

Alternator replacing 219055 / 25026005 / 390049
w113457
Brand cargo Bosch
Replacing | ||
|---|---|---|
| 219055 | Remy (delco) | |
| 25026005 | Daewoo | |
| 390049 | Remy (delco) | |
Features

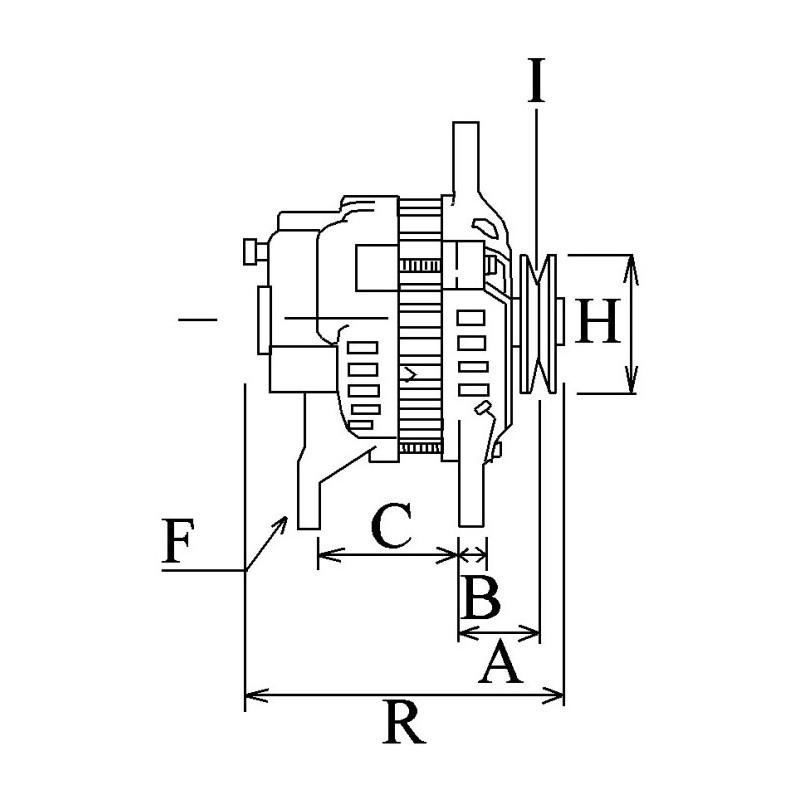

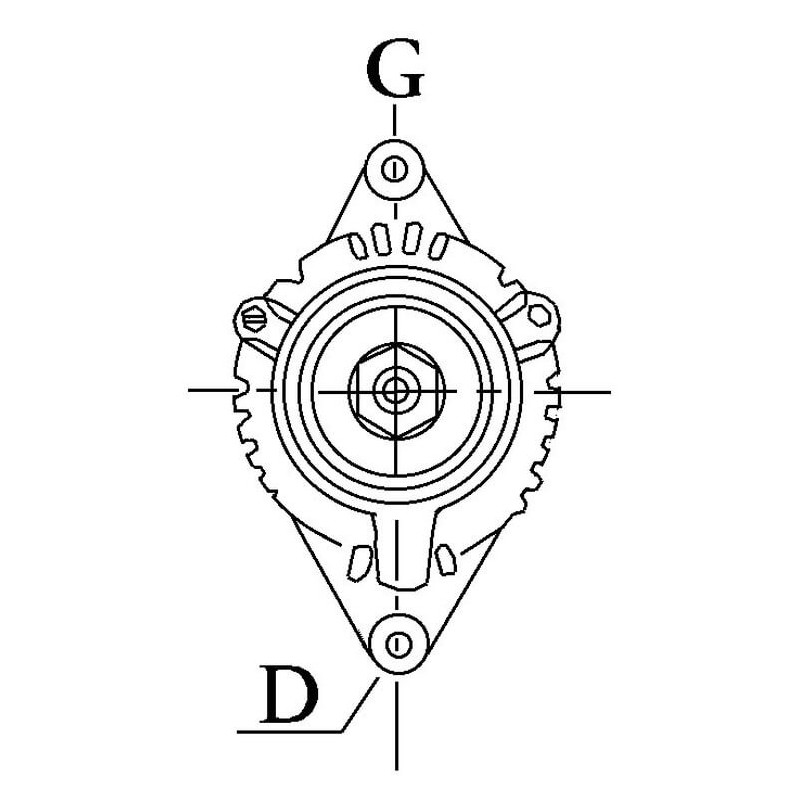

Physical information | ||
|---|---|---|
| A | Pulley dist. | 65.70 |
| B | Width/holder arm | 14.00 |
| C | Mount. bracket dist. | 101.00 |
| D | Bracket hole | 12.50 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | 1/2" UNF |
| H | Pulley dia. | 75.70 |
| I | Grooves/pulley | 2 |

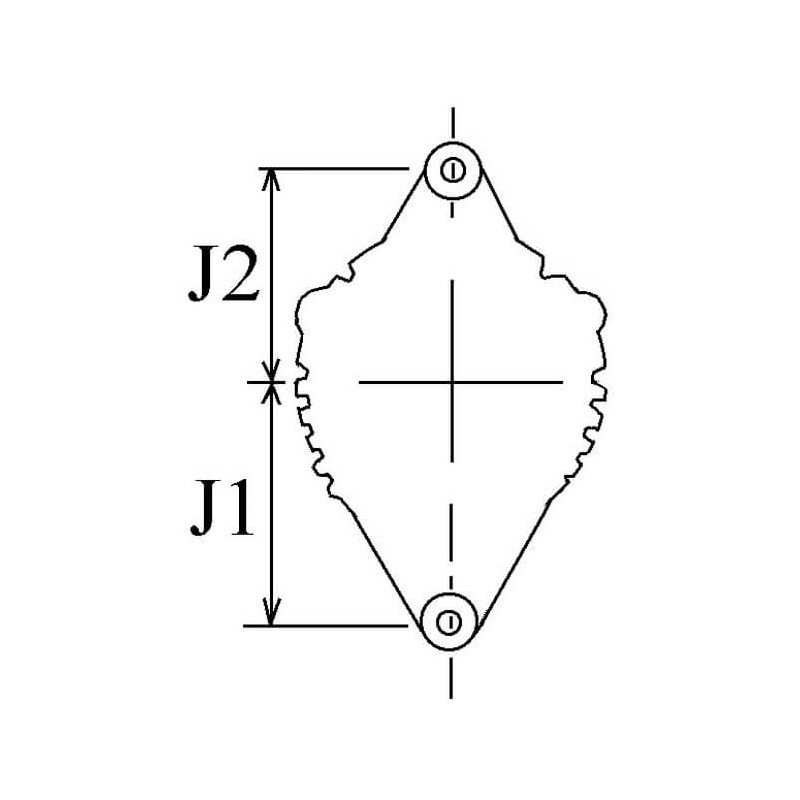

| J | Radius | 99.00 |
| J | Radius 2 | 99.00 |
| K | B+ | M6 |
| K | Position/B+ in min. | 40 |
| L | D+ Size | M5 |
| N | Rotation | CW |
| Q | W plug type | M5 |
| R | Total length mm | 210.00 |
Catalogue information | ||
|---|---|---|
| Pulley | DP | |
| Regulator type | IR | |
| Prod. info | BN | |
Electrical information | ||
|---|---|---|
| Voltage | 28 | |
| Amp | 60 | |
| Terminal | W | |
