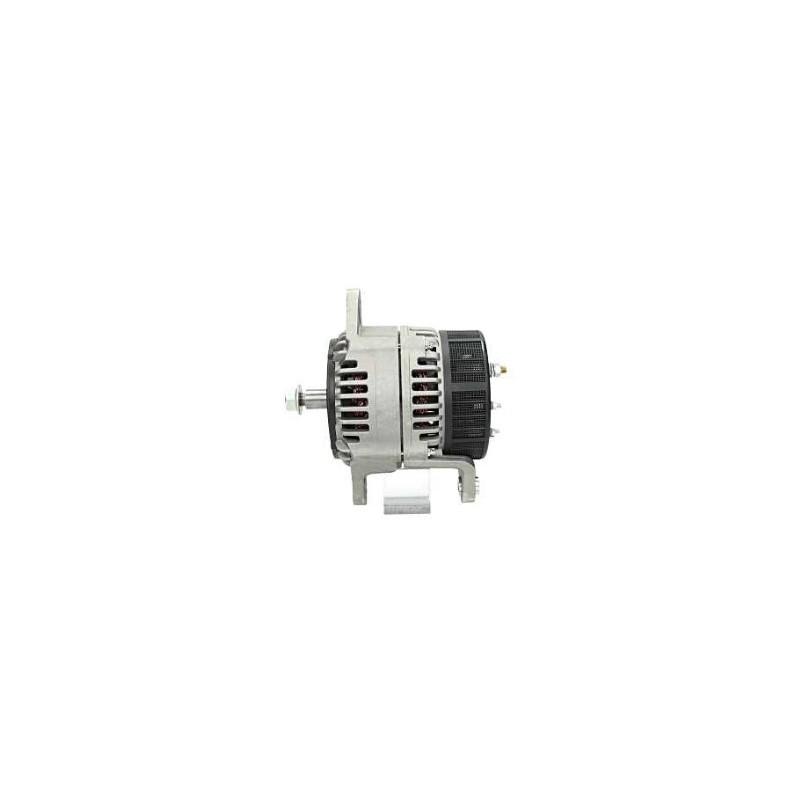

Alternator replacing ISKRA 11203739 / 11203741 / IA1349 / AAN5331 / AAN5711
Alternator NEW replacing ISKRA 11203739 / 11203741 / 11204172 / AAN5331 / AAN5711
= CASE 87439313 / 87439317 / 87677207 / 87677208 / 87720193
delivered without pulley
Disponible en version origine MAHLE W655502175
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 175 | |
| Plug type | W | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 13.00 |
| G | Belt. adj. bracket hole | 1/2 13" |
| B | Width/holder arm | 14.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 100.00 |
| j | Radius | 99.00 |
| j | Radius 2 | 99.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL_NA |
| Q | Tipo prise W | M5 |
Replacing | |
|---|---|
| 11.203.739 | ISKRA |
| 11.203.741 | ISKRA |
| 11.204.172 | ISKRA |
| 87439313 | CASE |
| 87439317 | CASE |
| 87677207 | CASE |
| 87677208 | CASE |
| 87720193 | CASE |
| AAN5331 | ISKRA |
| aan5711 | ISKRA |
| 01182925 |
| 01182931 |
| 01182992 |
| 01183043 |
| 11203196 |
| 11203255 |
| 11203482 |
| 11203739 |
| 11203740 |
| 11203741 |
| 11203761 |
| 11204172 |
| 12790 |
| 12791 |
| 286728 |
| 286729 |
| 451869 |
| 504132109 |
| 504293775 |
| 6220229M91 |
| 655502175 |
| 655502175090 |
| 655502175310 |
| 655502175311 |
| 87439313 |
| 87439317 |
| 87677207 |
| 87677208 |
| 87720193 |
| AAN5153 |
| AAN5170 |
| AAN5331 |
| AAN5537 |
| AAN5711 |
| AAN5712 |
| AAN5713 |
| AAN5721 |
| IA1349 |
| IA1349+ |
| LRA03619 |
| MG9 |
Generic Brand
Mounted on :
C
| Brand | Model | Tipo | Year |
| CASE | STX280 | [6505] | 01/01/06 |
| MASSEY FERGUSON | MF 480 STX 1.5 | 01/01/06 | |
| NEW HOLLAND | H8040 | ||
| NEW HOLLAND | H8060 | ||
| NEW HOLLAND | H8080 | ||
| NEW HOLLAND | T9010 | 01/08/07 | |
| NEW HOLLAND | T9020 9.0 | [CDC] | 01/01/07 |
| NEW HOLLAND | T9030 | 01/01/07 | |
| NEW HOLLAND | T9040 | 01/01/07 | |
| NEW HOLLAND | T9050 | 01/01/07 | |
| NEW HOLLAND | T9060 | 01/01/07 | |
| NEW HOLLAND | TJ280 | 01/01/06 | |
| NEW HOLLAND | TJ330 | 01/01/06 | |
| NEW HOLLAND | TJ480 | 01/01/06 | |
| NEW HOLLAND | TJ530 | 01/01/06 |
