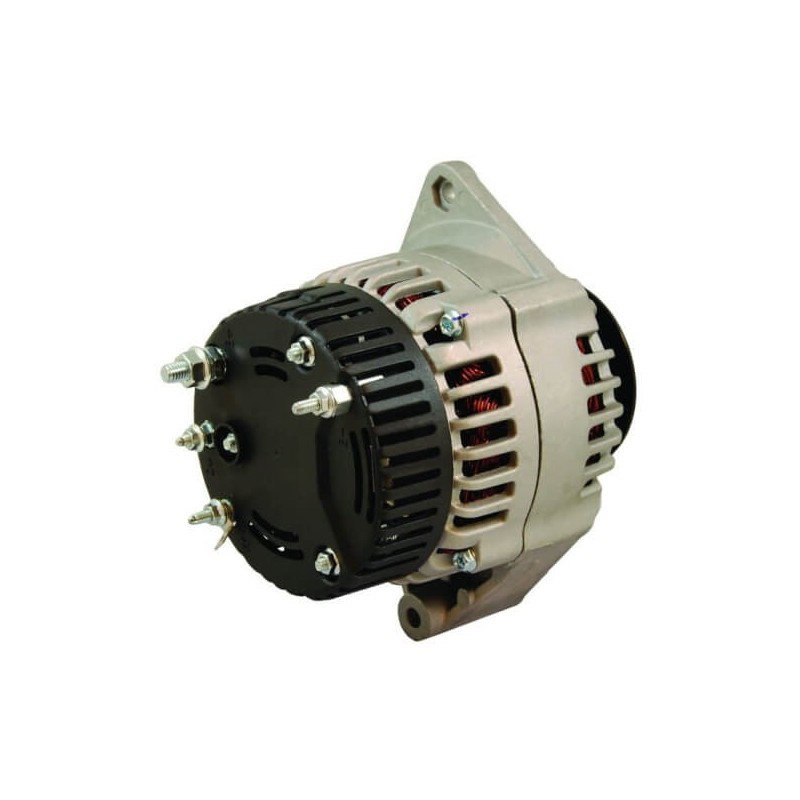

Alternator replacing 11.201.668 / AAK5116 / IA0668 / 7700036536
| 72735233 | Mahle |
| 72735434 | Mahle |
| 7700036536 | Renault |
| 7700042474 | Renault |
| 7700046568 | Renault |
| 7700046783 | Renault |
| 7730046783 | |
| AAK5125 | Mahle |
| AAK5137 | Mahle |
| IA0668 | Mahle |
| IA0738 | Mahle |
| LRA01935 | Lucas |
| LRA01940 | Lucas |
| MG234 | Mahle |
| MG435 | Mahle |
More info
Physical information | ||
|---|---|---|
| A | Pulley dist. | 83.00 |
| B | Width/holder arm | 56.00 |
| D | Bracket hole | 8.50 |
| E | Belt. adj. brackethole pos. | 58 |
| G | Belt. adj. bracket hole | 9.00 |
| H | Pulley dia. | 50.00 |
| I | Grooves/pulley | 8 |
| J | Radius | 86.00 |
| J | Radius 2 | 86.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 50 |
| N | Rotation | CW |
| Q | W plug type | 6.30 |
| R | Total length mm | 183.00 |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 95 | |

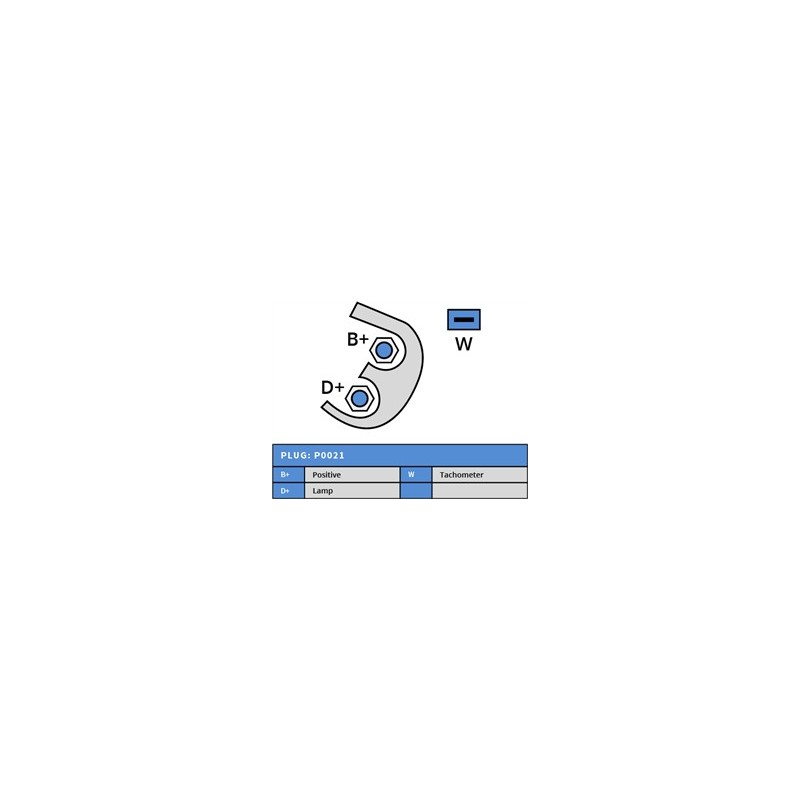

| Terminal | W | |
generic brand
replacing
| 11201668 | Mahle |
| 11201738 | Mahle |
| 114513 | Cargo |
| 12686 | Lester |
| 2161 | CEVAM |
| 230321952 | DRI |
| 283825 | Elstock |
| 283832 | Elstock |
| 36177 | Sparex |
| 530111952 | DRI |
| 615003095 | PSH |
| 72735233 | Mahle |
| 72735434 | Mahle |
| 7700036536 | Renault |
| 7700042474 | Renault |
| 7700046568 | Renault |
| 7700046783 | Renault |
| 7730046783 | |
| AAK5116 | Mahle |
| AAK5125 | Mahle |
| AAK5137 | Mahle |
| IA0668 | Mahle |
| IA0668SEL | +line |
| IA0738 | Mahle |
| LRA01935 | Lucas |
| LRA01940 | Lucas |
| MG234 | Mahle |
| MG435 | Mahle |
for
| Brand | Model | Tipo |
| RENAULT AGRICULTURE | Ares 540 RX | [DPSG-4039T] |
| RENAULT AGRICULTURE | Ares 540 RZ | [DPSG-4039T] |
| RENAULT AGRICULTURE | Ares 550 RX | [DPSG-4039T] |
| RENAULT AGRICULTURE | Ceres 65 | [DPSG-3029D] |
| RENAULT AGRICULTURE | Ceres 75 | [DPSG-4039D] |
| RENAULT AGRICULTURE | Ceres 75X | [DPSG-4039D] |
| RENAULT AGRICULTURE | Ceres 85 | [DPSG-4045D] |
| RENAULT AGRICULTURE | Ceres 85X | [DPSG-4045D] |
| RENAULT AGRICULTURE | Ceres 95 | [DPSG-4039T] |
| RENAULT AGRICULTURE | Ceres 95X | [DPSG-4039T] |
| RENAULT AGRICULTURE | Cergos 330 | [DPSG-4045D] |
| RENAULT AGRICULTURE | Cergos 340 | [DPSG-4039T] |
| RENAULT AGRICULTURE | Cergos 350 | [DPSG-4045T] |
| RENAULT AGRICULTURE | Ergos 105 | [DPSG-4045T] |
| RENAULT AGRICULTURE | Ergos 85 | [DPSG-4045D] |
| RENAULT AGRICULTURE | Ergos 95 | [DPSG-4039T] |
