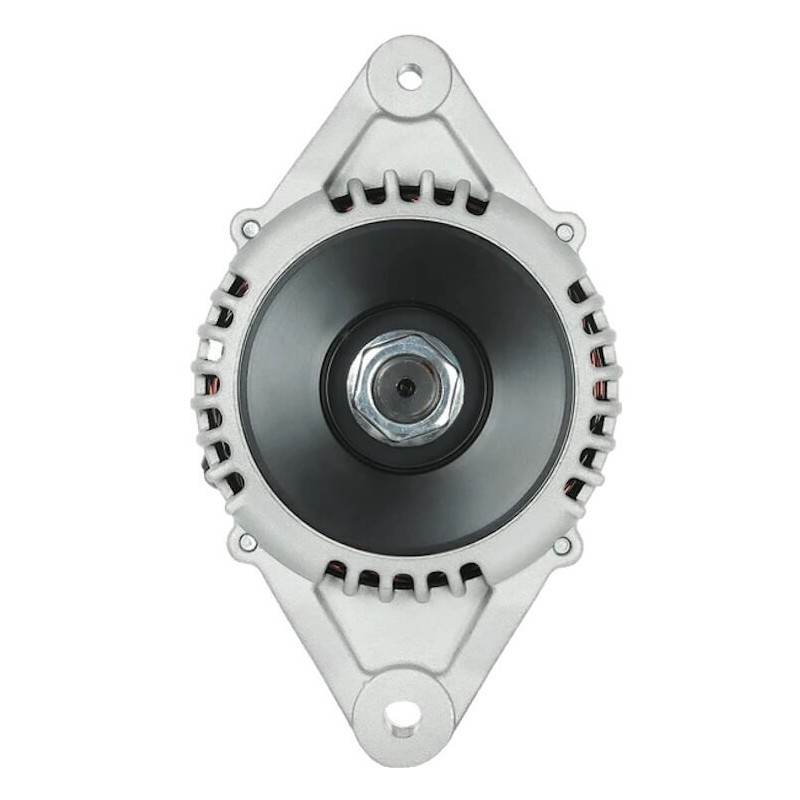

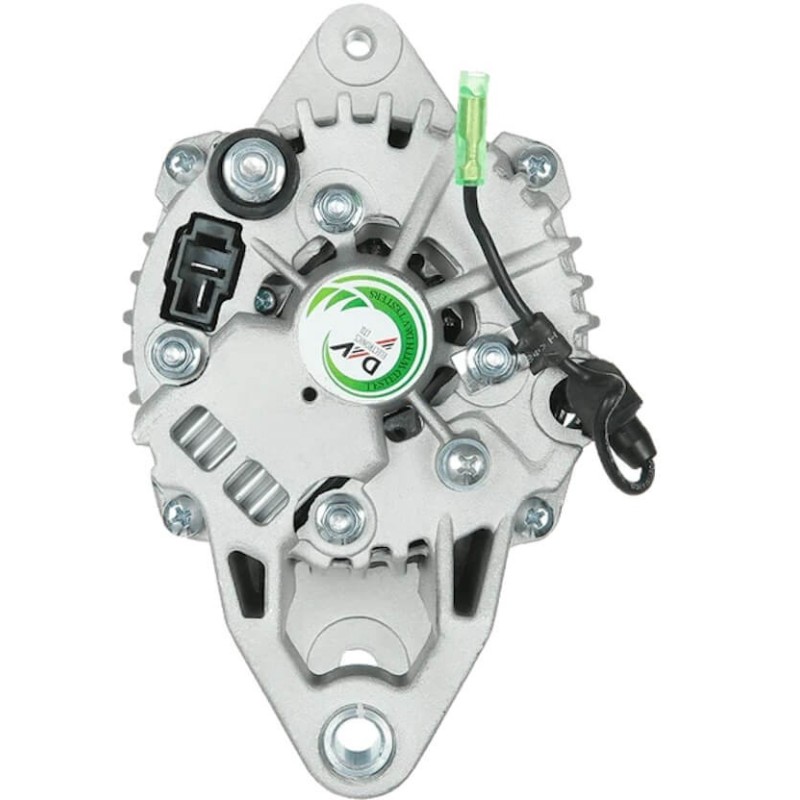

Alternator replacing HITACHI LR160-735B / YANMAR 123900-77210

Information:

Voltage 14

Amp 60

D = Bracket hole 10.30

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 81.65

H = Pulley dia. 83.00

A = Pulley dist. 45.00

Grooves/pulley 1

J = Radius 91.00

J = Radius 85.00

Position B + M6

Rotation Cr

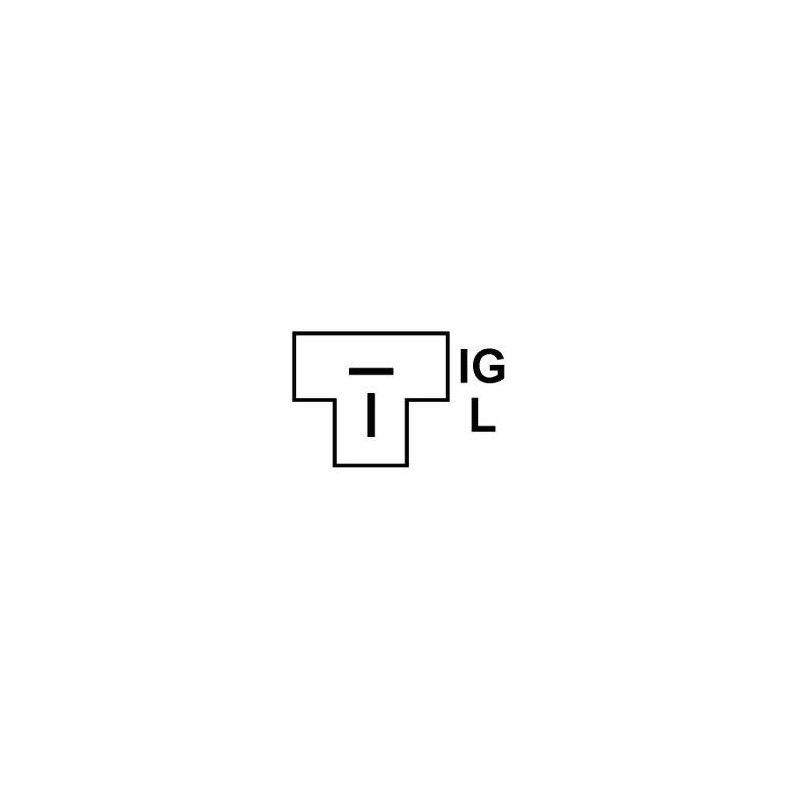

Plug no. 1 PL10

Fan If

Pulley Pulley

R = Total length mm 168.00

for

Komatsu (1999-2008) ** Yanmar (1998-2007)

Generic Brand

= yanmar 123900-77210

= HITACHI  LR160-735B

                                        TWO YEARS WARRANTY

                  NO CORE EXCHANGE NEEDED
