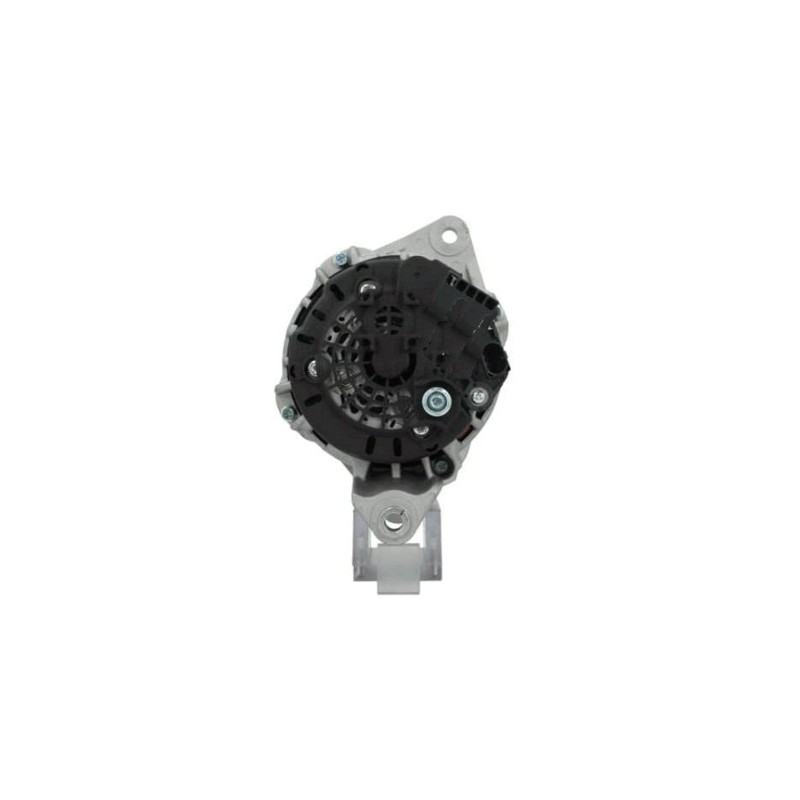

Alternator replacing 5802217842 / F000BL07CF / LRA04476
| 288585 | Elstock |
| 505906150 | PSH |
| 5802217842 | Iveco |
| F000BL07CE | Bosch |
| F000BL07CF | Bosch |
| F000BL07CFOR | +line |
| LRA04476 | Lucas |
for Iveco Daily
More info
Electrical information | |
|---|---|
| Voltage | 14 |
| Amp | 150 |
Catalogue information | |
|---|---|
| Pulley | SP/FW |
| Fan | IF |
| Regulator type | IR |
| Remarks | This Alternator has a COM terminal on the regulator, It is recommended that the OEM number is used to check suitability before ordering |
Physical information | ||
|---|---|---|
| A | Pulley dist. | 41.50 |
| B | Width/holder arm | 14.00 |
| C | Mount. bracket dist. | 83.50 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 56 |
| G | Belt. adj. bracket hole | 10.50 |
| H | Pulley dia. | 55.00 |
| I | Grooves/pulley | 7 |
| J | Radius | 94.00 |
| J | Radius 2 | 95.50 |
| K | B+ | M8 |
| K | Position/B+ in min. | 22 |

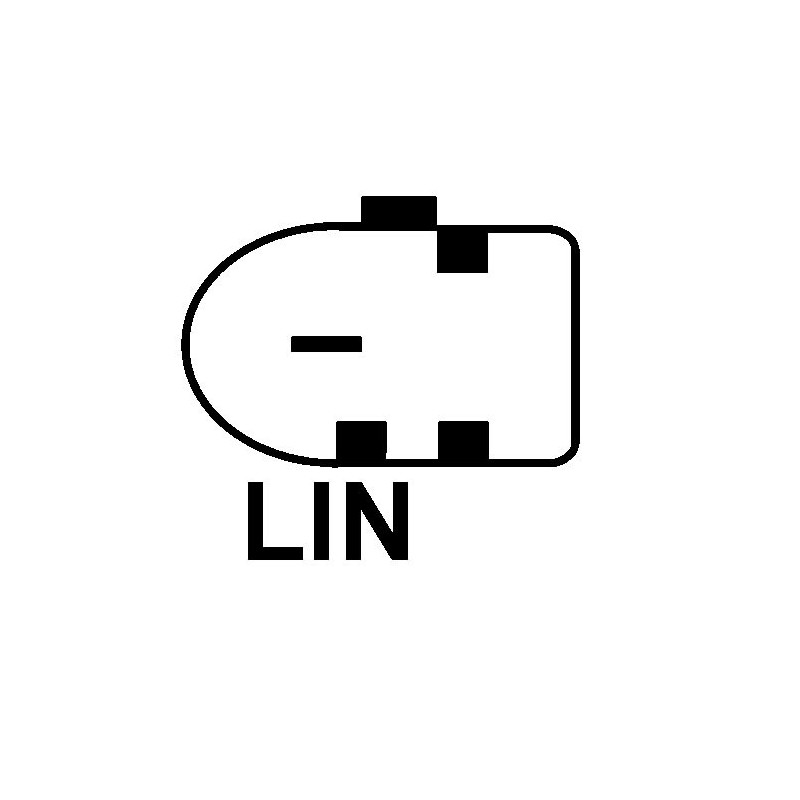

| O | Plug no. 1 | PL125 |
| R | Total length mm | 184.00 |
| 288585 | Elstock |
| 505906150 | PSH |
| 5802217842 | Iveco |
| F000BL07CE | Bosch |
| F000BL07CF | Bosch |
| F000BL07CFOR | +line |
| LRA04476 | Lucas |
Generic Brand
