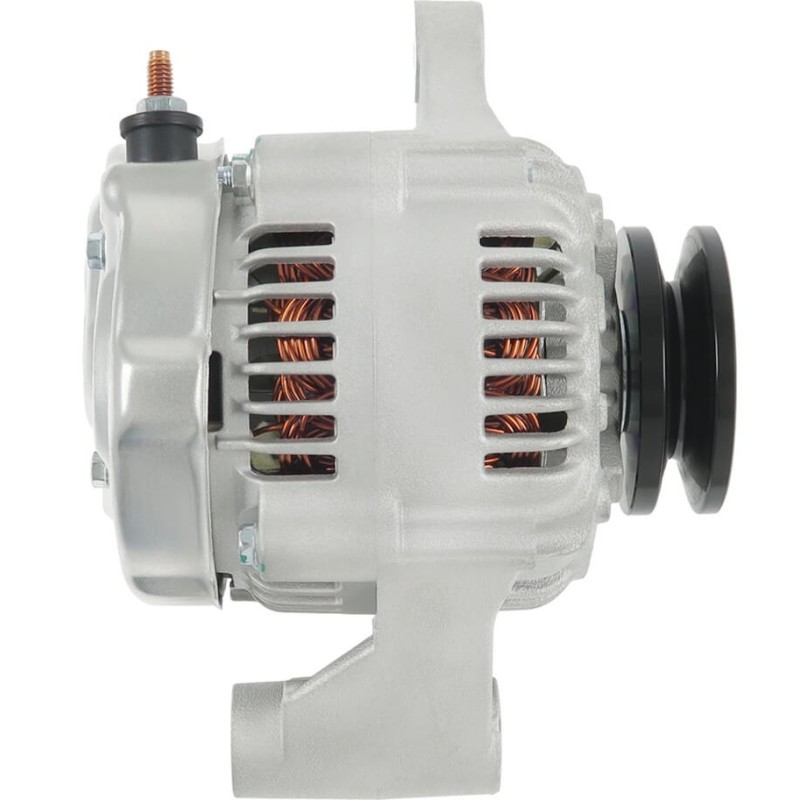

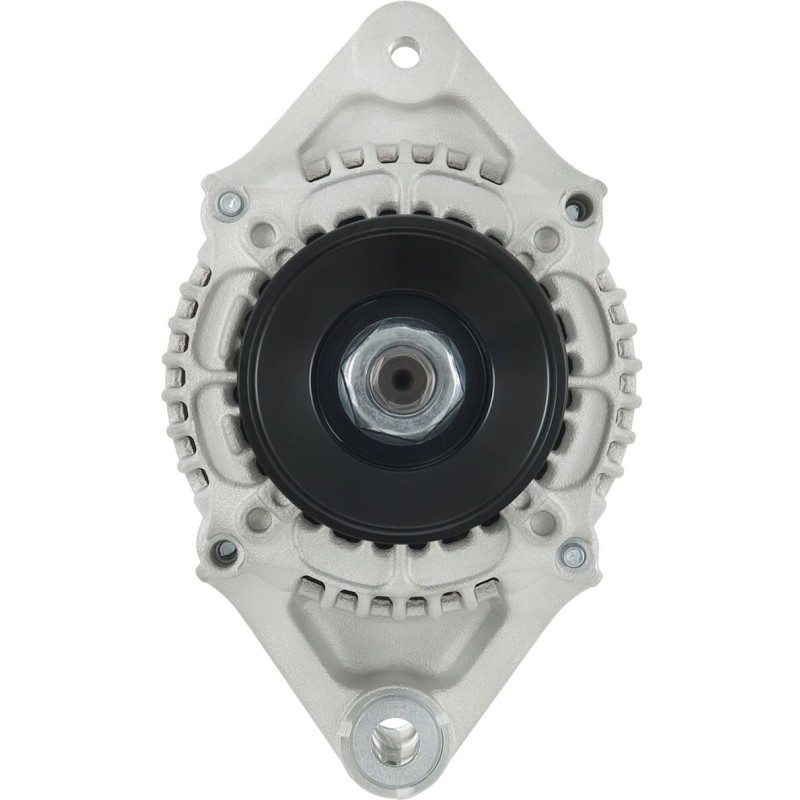

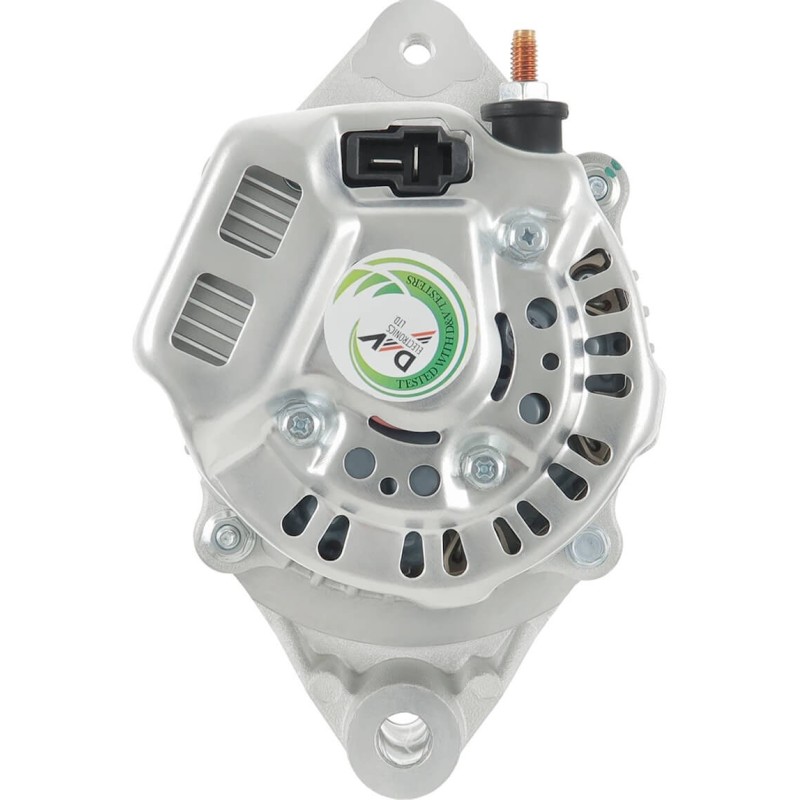

Alternator replacing 100211-3370 / 100211-5730 / 100211-6660 for DAIHATSU / PIAGGIO

Why buy from WAGENDASS?

WAGENDASS is a brand registered and recognized within the European Union.

We have collaborated with our suppliers for 40 years to offer you brand-new equipment
backed by a two-year warranty at the best price on the market,
We are dedicated to providing you with reliable, fast service for repairs and troubleshooting.

Information:

Rotation Cr

Amp 40

Voltage 14

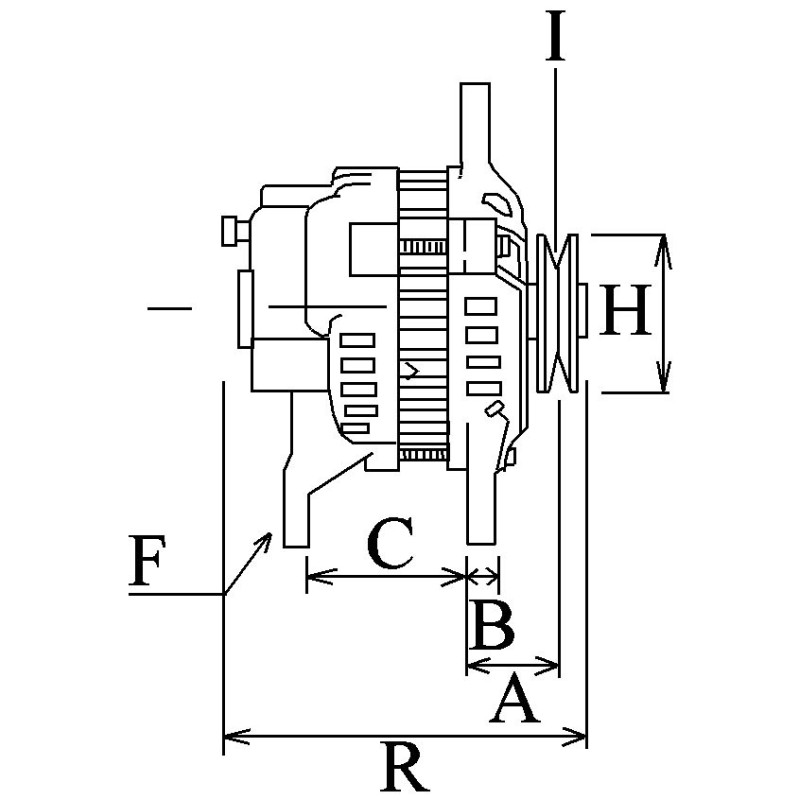

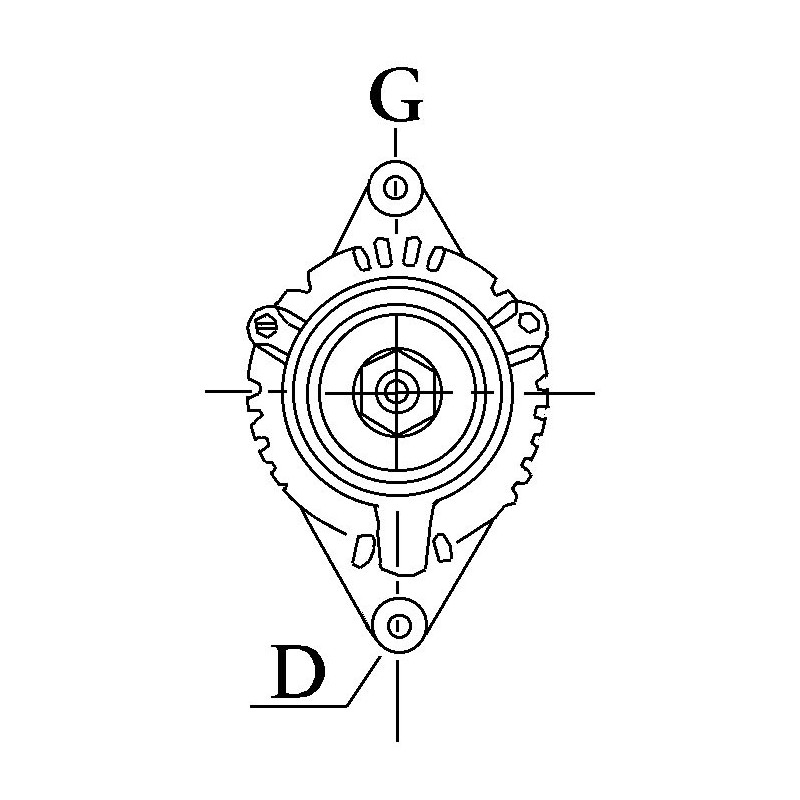

D = Bracket hole 10.40

G =  Belt. adj. bracket hole M8

B =  Width/holder arm 58.00

E =  Belt. adj. brackethole pos. 60

H =  Pulley dia. 63.25

A =  Pulley dist. 95.75

Grooves/pulley 1

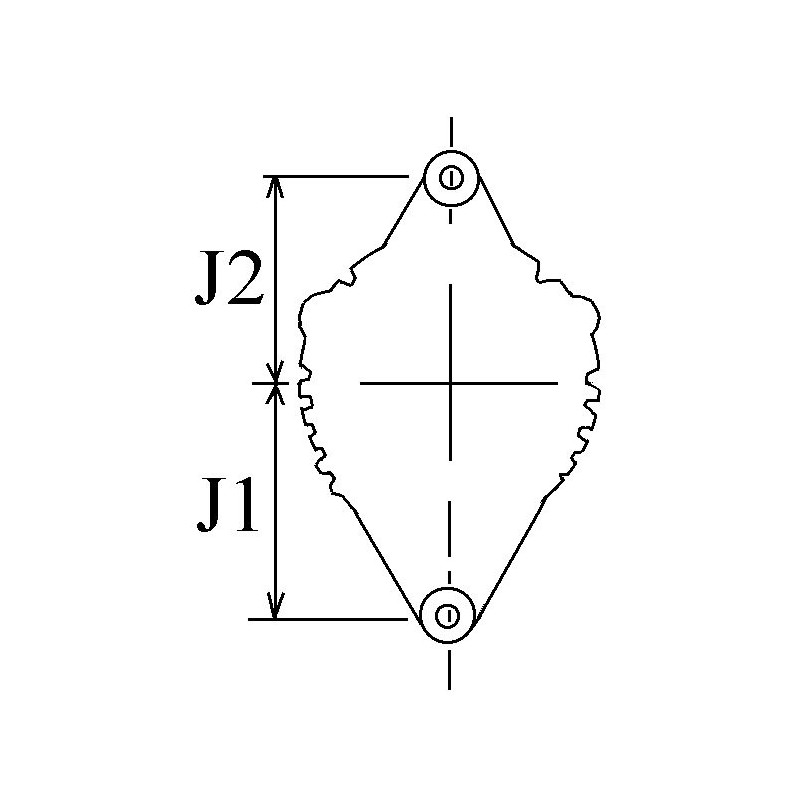

J = Radius 79.00

J =  Radius 2 73.50

Position B + M6

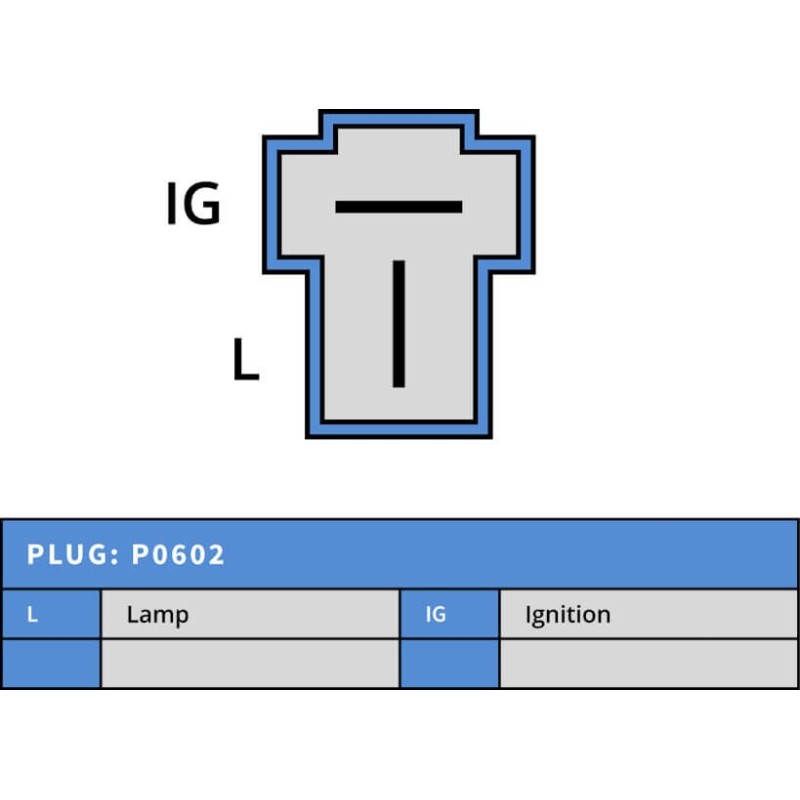

Plug no. 1 PL10

Fan If

Pulley Pulley

Type regulator Ir

R =  Total length mm 165.50

= BOSCH 0986080620

= DELCO REMY DRA3348

= DENSO 101211-3770 / 101211-3370 / 100211-6730 / 100211-6660

100211-5730 / 100211-3370

= DAIHATSU 27060-87112-000 / 27060-87512-000 / 27060-87601-000 / 27060-87602-000

= HELLA 8EL732726001

= LUCAS LRB00442

= TOYOTA 27060-87512 / 27060-87602 / 27060-87Z06

= 281934 / AIA125 / J5116013 / N5116030 / WSD24503

Generic brand

fits;

DAIHATSU : Feroza / Hijet

PIAGGIO : Porter 1,3

                                NO CORE EXCHANGE NEEDED

                                                       TWO YEARS WARRANTY
