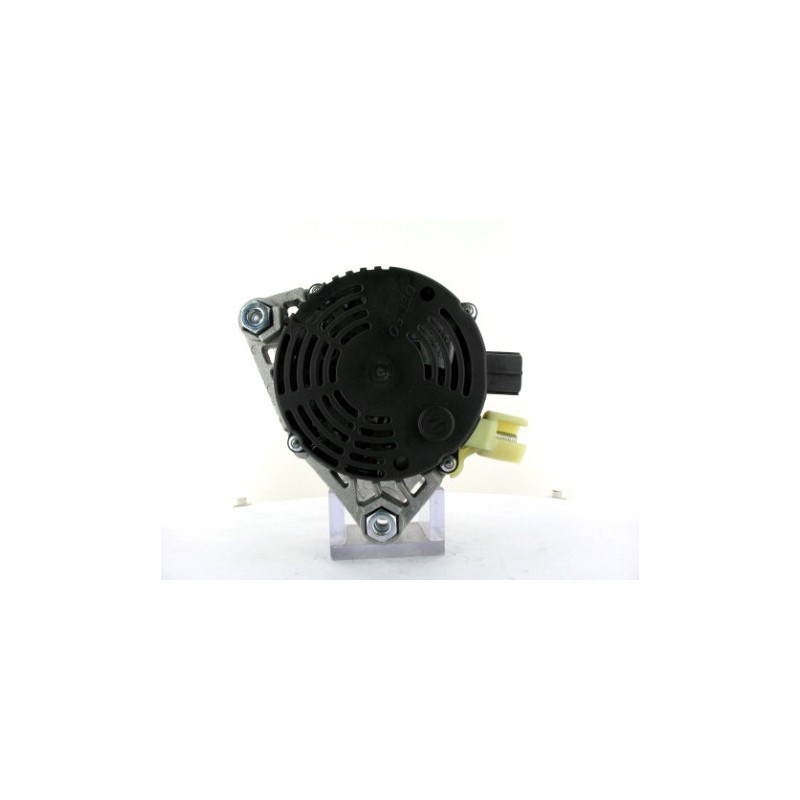

Alternator replacing 101210-0920 / 101210-0921/ 1464564 / 1496231
Alternator NEW replacing :
DENSO 101210-0920 / 101210-0921/ 1464564 / 1496231 / DAN582
FORD 4M5T10300LA / 4M5T10300LB / 4M5T10300LC / 4M5T10300LD / 1464564
0986081090 / 63377421 / DRA0087 / LRA02913
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 105 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.00 |
| G | Belt. adj. bracket hole | 8.00 |
| B | Width/holder arm | 14.50 |
| E | Belt. adj. brackethole pos. | 50 |
| C | Mount. bracket dist | 52.00 |
| j | Radius | 82.00 |
| j | Radius 2 | 86.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

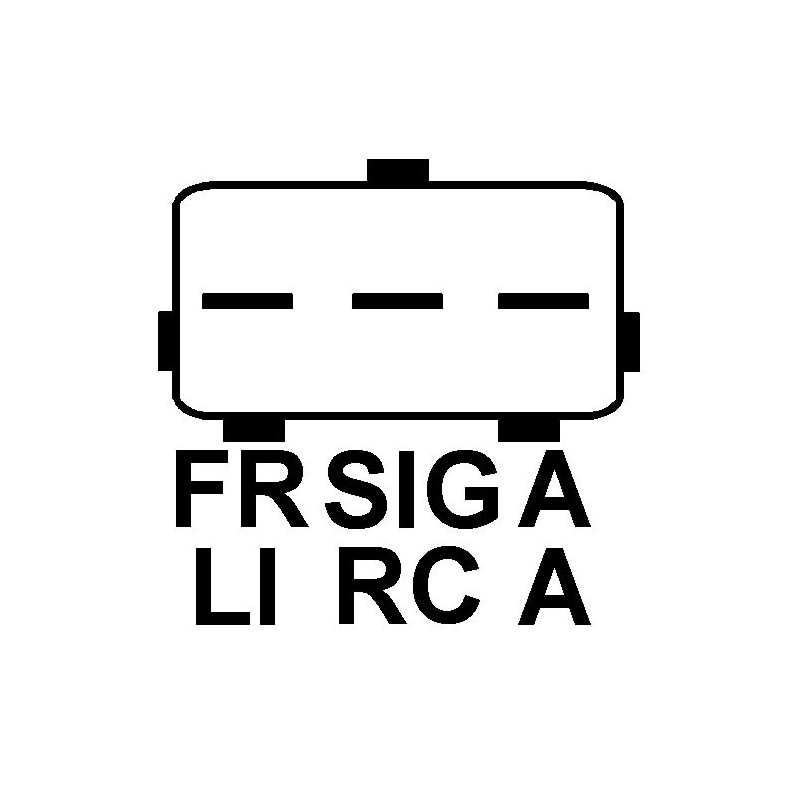

| o | Plug no. 1 | PL57 |
delivered without pulley
Replacing | |
|---|---|
| 101210-0920 | DENSO |
| 101210-0921 | DENSO |
| 1464564 | FORD |
| 1496231 | FORD |
| 4M5T10300LA | FORD |
| 4M5T10300LB | FORD |
| 4M5T10300LC | FORD |
| 4M5T10300LD | FORD |
| 63377421 | MAGNETI MARELLI |
| ca1989ir | HC-PARTS |
generic brand
Mounted on :
| Model | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Focus | 1.8 | Diesel | 2005 01 | 2008 01 | KKDB | TDCi | 85 | 115 | Hayon | 1753 | 4 | DA_ | |
| Focus | 1.8 | Diesel | 2005 04 | 2008 01 | KKDB | TDCi | 85 | 115 | 1753 | 4 | DA_ | ||
| Focus | 1.8 | Diesel | 2005 01 | 2007 03 | KKDA | TDCi | 85 | 115 | MPV | C-Max | 1753 | 4 | |
| Focus | 1.8 | Diesel | 2004 11 | 2008 01 | KKDA | TDCi | 85 | 115 | Break | 1753 | 4 | DAW_ | |
| Focus | 1.8 | Diesel | 2005 01 | 2008 01 | KKDA | TDCi | 85 | 115 | Hayon | 1753 | 4 | DA_ | |
| Focus | 1.8 | Diesel | 2004 11 | 2008 01 | KKDB | TDCi | 85 | 115 | Break | 1753 | 4 | DAW_ | |
| Focus | 1.8 | Diesel | 2005 04 | 2008 01 | KKDA | TDCi | 85 | 115 | 1753 | 4 | DA_ | ||
| C-Max | 1.8 | Diesel | 2007 02 | - | KKDA | TDCi | 85 | 115 | MPV | 1753 | 4 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
