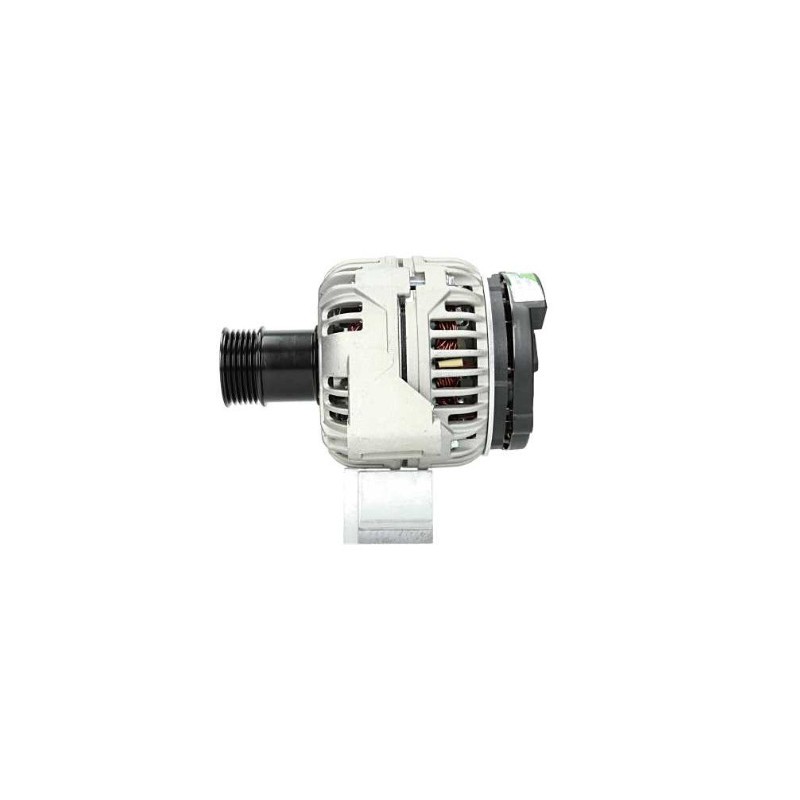

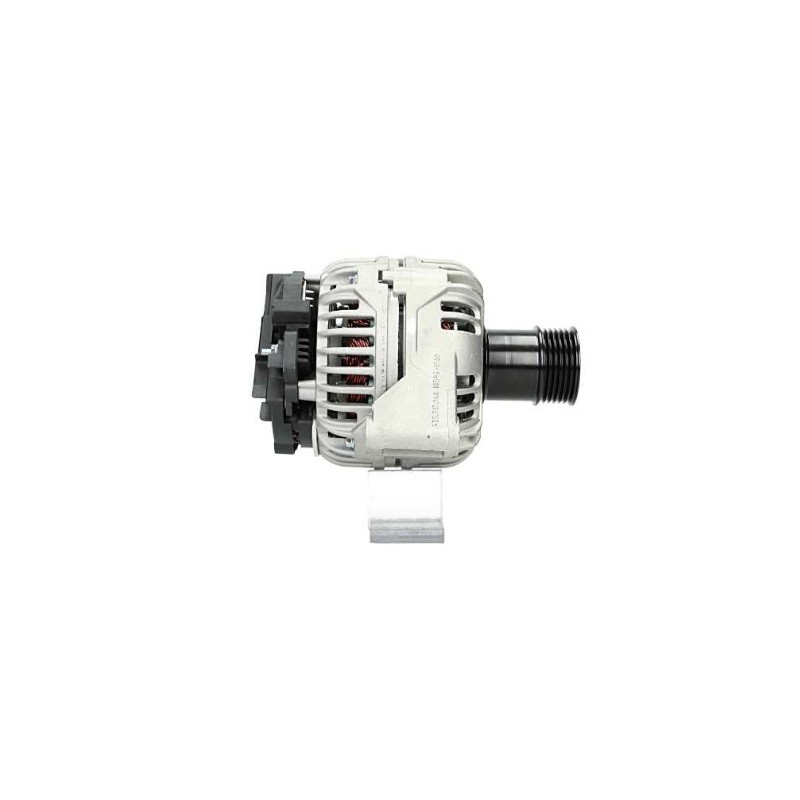

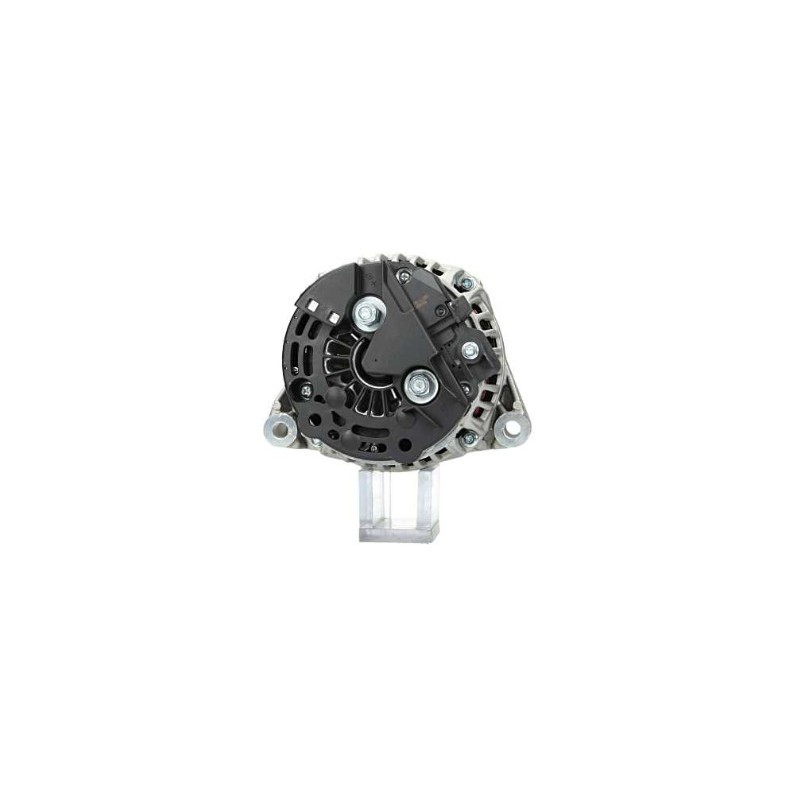

Alternator replacing BOSCH 0124525143 / SAAB 12770124 / CA1961IR
Alternator NEW replacing BOSCH 0124525143 / SAAB 12770124 / CA1961IR
DRA0585 / LRA03206
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 140 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.00 |
| G | Belt. adj. bracket hole | 10.00 |
| B | Width/holder arm | 56.00 |
| E | Belt. adj. brackethole pos. | 50 |
| H | Pulley dia. | 52.50 |
| A | Pulley dist. | 118.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |

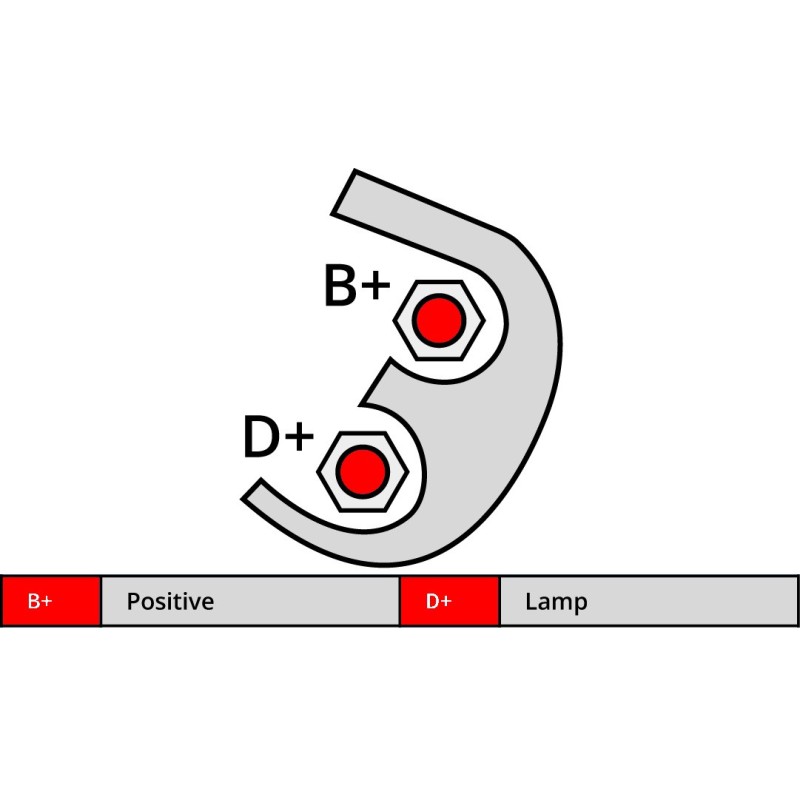

| k | Position B + | M8 |
| n | Rotation | CW |
| R | Total length mm | 219.00 |
Replacing | |
|---|---|
| 0124525143 | BOSCH |
| 12770124 | SAAB |
| CA1961IR | HC-PARTS |
generic brand
Mounted on :
SAAB
| 9-5 | 9-5 | 2.0 | Unleaded | 1998 10 | - | B205E | Turbo | 110 | 150 | Break | 1985 | 4 | |
| 9-5 | 9-5 | 2.0 | Unleaded | 1997 09 | - | B205E | Turbo | 110 | 150 | 1985 | 4 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
