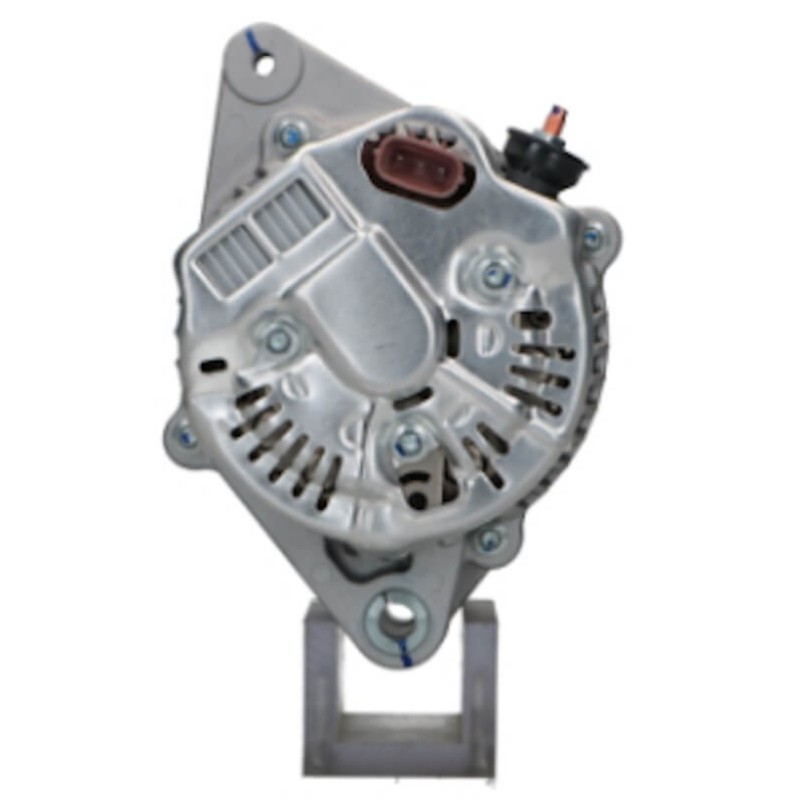

Alternator replacing DENSO 102211-1670 / 102211-1680 / 102211-5250
| 0986045841 | Bosch ruil |
| 1022115250 | Denso |
| 1022115410 | Denso |
| 114005 | Cargo |
| 195588070 | PSH |
| 2040287 | Sando |
| 235167702 | DRI |
| 2706023010 | Toyota |
| 2706023070 | Toyota |
| 283947 | Elstock |
| 63377439 | Magneti Marelli |
| 934106 | EDR |
| 944390621080 | Magneti Marelli |
| AEA4271 | Auto Electro |
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 11.00 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 26.50 |
| E | Belt. adj. brackethole pos. | 4 |
| C | Mount. bracket dist | 39.00 |
| H | Pulley dia. | 54.50 |
| A | Pulley dist. | 48.00 |
| i | Grooves/pulley | 4 |
| j | Radius | 80.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M6 |
| n | Rotation | CW |

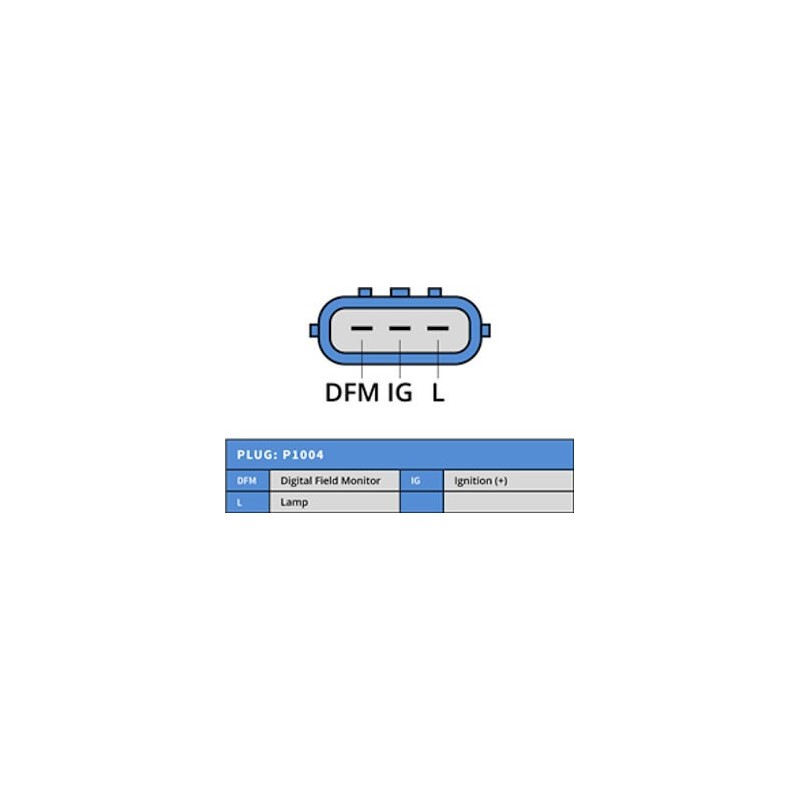

| o | Plug no. 1 | PL67 |
Replacing :
Replacing | |
|---|---|
| 102211-1670 | DENSO |
| 102211-1680 | DENSO |
| 102211-5250 | DENSO |
| 27060-23010 | TOYOTA |
| 27060-23020 | TOYOTA |
| 27060-23030 | TOYOTA |
| ja1517ir | HC-PARTS |
| 0986045851 |
| 1022111670 |
| 195588080 |
| 2706023020 |
| 283947 |
| 6178SP |
| 6202SP |
| 945851 |
| ATA633 |
| DRB5851 |
| HJA1714IR |
| HJA1722IR |
| J5112095 |
| Ja1714IR |
| JA1722IR |
| LRB00471 |
| TRA225 |
generic brand
Mounted on :
TOYOTA Yaris
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
