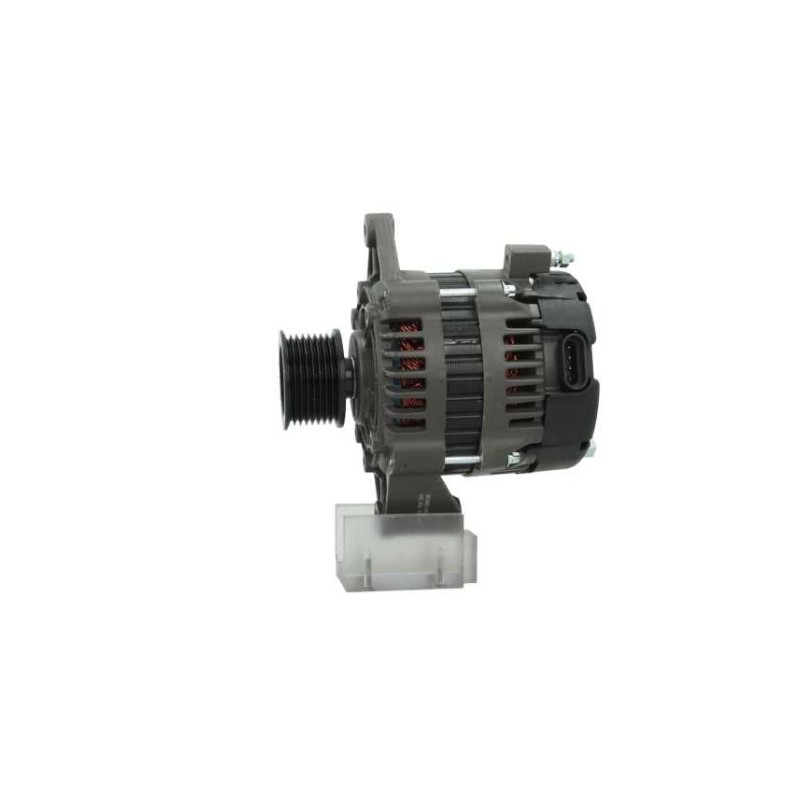

Alternator replacing 3972730 / 19020204 / 4988274
Alternator NEW replacing :
CUMMINS 3972730 / 4988274
DELCO REMY 19020204
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 95 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.00 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 50.80 |
| E | Belt. adj. brackethole pos. | 60 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 71.50 |
| i | Grooves/pulley | 8 |
| j | Radius | 86.00 |
| j | Radius 2 | 87.00 |
| k | Position B + | M8 |
| n | Rotation | CW |
| o | Plug no. 1 | PL53 |
| R | Total length mm | 193.00 |
Replacing | |
|---|---|
| 19020204 | DELCO REMY |
| 3972730 | CUMMINS |
| 4988274 | CUMMINS |
generic brand
Mounted on :
CUMMINS Fire Power (2004-2012)
Trackless (2005-2010)
