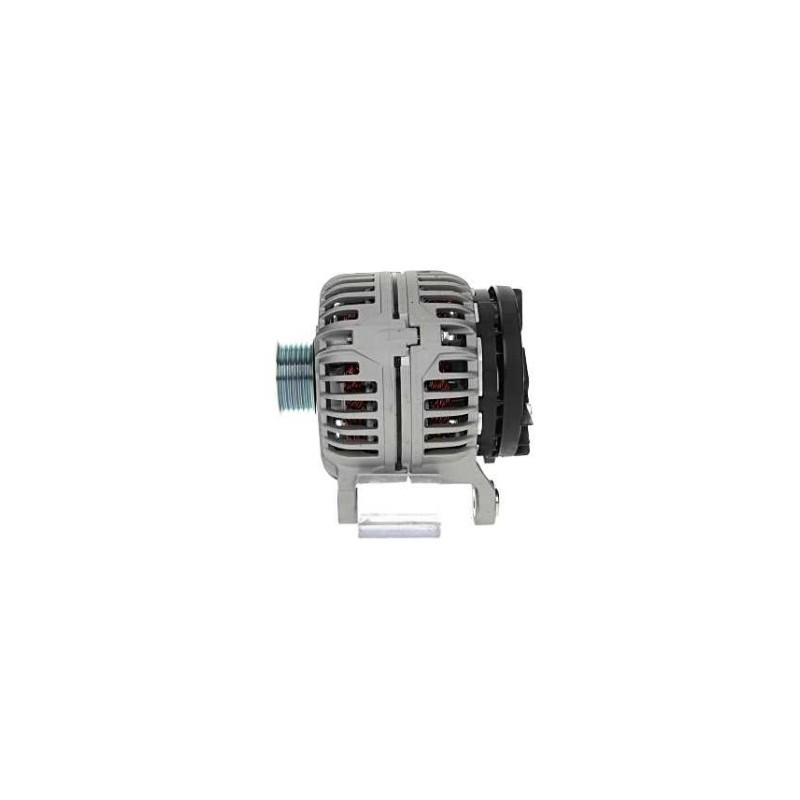

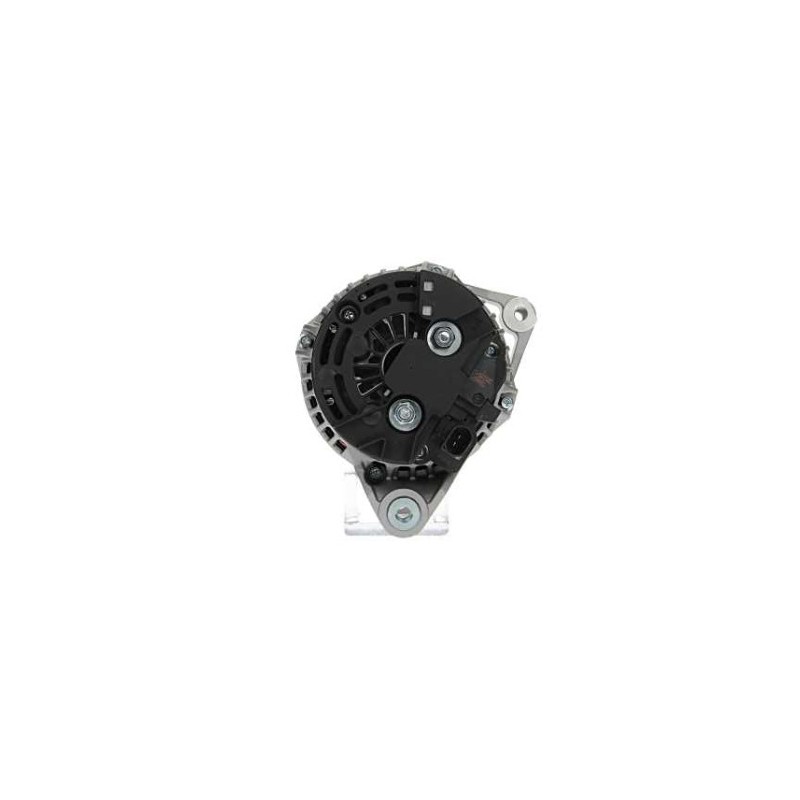

Alternator replacing 0124515001 / 0124515015 / 0124515042 / 996-603-012-00 / 996-603-012-01 / 996-603-012-03
Alternator NEW replacing
BOSCH 0124515001 / 0124515015 / 0124515042 / 0986043690
PORSCHE 996-603-012-00, 996-603-012-01, 996-603-012-03
DRB3690 / LRA02141
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 120 | |
Physical Information | ||
|---|---|---|
| A | Pulley dist. | 31.70 |
| B | Width/holder arm | 14.00 |
| C | Mount. bracket dist | 81.80 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 30 |
| G | Belt. adj. bracket hole | M10 |
| H | Pulley dia. | 52.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 92.00 |
| J | Radius 2 | 92.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 30 |
| N | Rotation | Cr |
| O | Plug n° 1 | PL61 |
| R | Total length mm | 185.00 |
generic brand
Replacing :
BOSCH 0124515001 / 0124515015 / 0124515042
PORSCHE 996-603-012-00, 996-603-012-01, 996-603-012-03
PORSCHE 996-603-012-00, 996-603-012-01, 996-603-012-03
| 0124515001 | BOSCH |
| 0124515015 | BOSCH |
| 0124515042 | BOSCH |
| 0986043690 | BOSCH |
| 12043690 | EuroTec |
| 1286901BO1 | WAI |
| 13810 | Lester |
| 13810N | WAI |
| 13810R | WAI |
| 2205085B | PIC |
| 284588 | Elstock |
| 485501120 | PSH |
| 57165 | EAI |
| 90156361 | WILSON |
| 90156362 | WILSON |
| 9043690F | Friesen |
| 943690 | EDR |
| 99660301200 | PORSCHE |
| 99660301201 | PORSCHE |
| 99660301203 | PORSCHE |
| 99660301205 | PORSCHE |
| DRB3690 | DELCO REMY |
| L43690 | ATL |
| LRA02141 | LUCAS |
Mounted on :
| Brand | Model | Tipo | Year | Remarks |
|---|---|---|---|---|
| PORSCHE | 911 3.4 24V CaRera | 01.1997-12.1999 | ||
| PORSCHE | 911 3.4 24V CaRera | -996 | 01.1999-12.2001 | AT |
| PORSCHE | 911 3.4 CaRera | [M96.01] | 01.1997-12.1999 | |
| PORSCHE | 911 3.4 CaRera | [M96.01] | 01.1999-12.2001 | AT |
| PORSCHE | 911 3.4 CaRera | [M96.02] | 01.1997-12.1999 | |
| PORSCHE | 911 3.4 CaRera | [M96.04] | 01.1999-12.2001 | AT |
| PORSCHE | 911 3.6 CaRera | 01.1999-12.2001 | AT | |
| PORSCHE | 911 3.6 CaRera | 01.2001-12.2004 | 4x4 AT | |
| PORSCHE | 911 3.6 CaRera | -996 | 01.2001-12.2005 | AT |
| PORSCHE | 911 3.6 CaRera | [M96.03] | 01.2001-12.2005 | AT |
| PORSCHE | 911 3.6 CaRera | [M96.76] | 01.1999-12.2001 | AT |
| PORSCHE | 911 3.6 CaRera 4x4 | [M96.03] | 01.2001-12.2004 | AT |
| PORSCHE | 911 3.6 GT3 | 01.2003-12.2005 | ||
| PORSCHE | 911 3.6 GT3 | [M96.79] | 01.2003-12.2005 | |
| PORSCHE | 911 3.6 Turbo | 01.2000- | ||
| PORSCHE | 911 3.6 Turbo | 01.2003- | AT | |
| PORSCHE | 911 3.6 Turbo | [M96.70] | 01.2000-12.2005 | |
| PORSCHE | 911 3.6 Turbo | [M96.70] | 01.2003-12.2005 | AT |
| PORSCHE | Boxster 2.5 | [M96.20] | 01.1996-12.1999 | |
| PORSCHE | Boxster 2.5i | 01.1996-12.1999 | AT | |
| PORSCHE | Boxster 2.7 | 01.1999-12.2002 | AT | |
| PORSCHE | Boxster 2.7 | -986 | 01.2002-12.2004 | AT |
| PORSCHE | Boxster 2.7 | [M96.22] | 01.1999-12.2002 | AT |
| PORSCHE | Boxster 3.2 | -986 | 01.2002-12.2004 | AT |
| PORSCHE | Boxster 3.2 S | [M96.21] | 01.1999-12.2002 | AT |
| PORSCHE | Boxster 3.2S | 01.1999-12.2002 | AT |
Generic Brand
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
