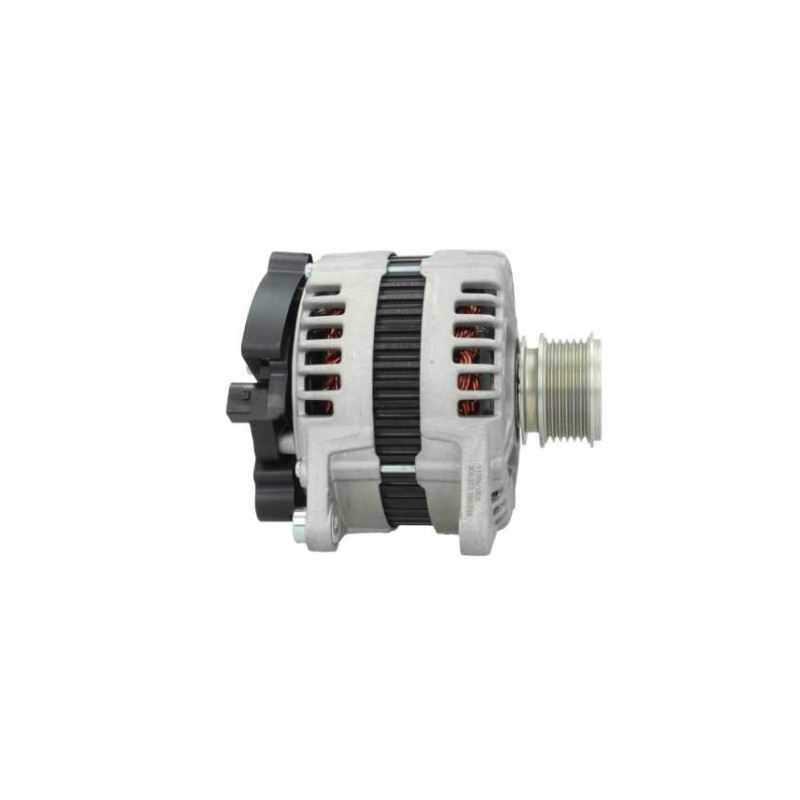

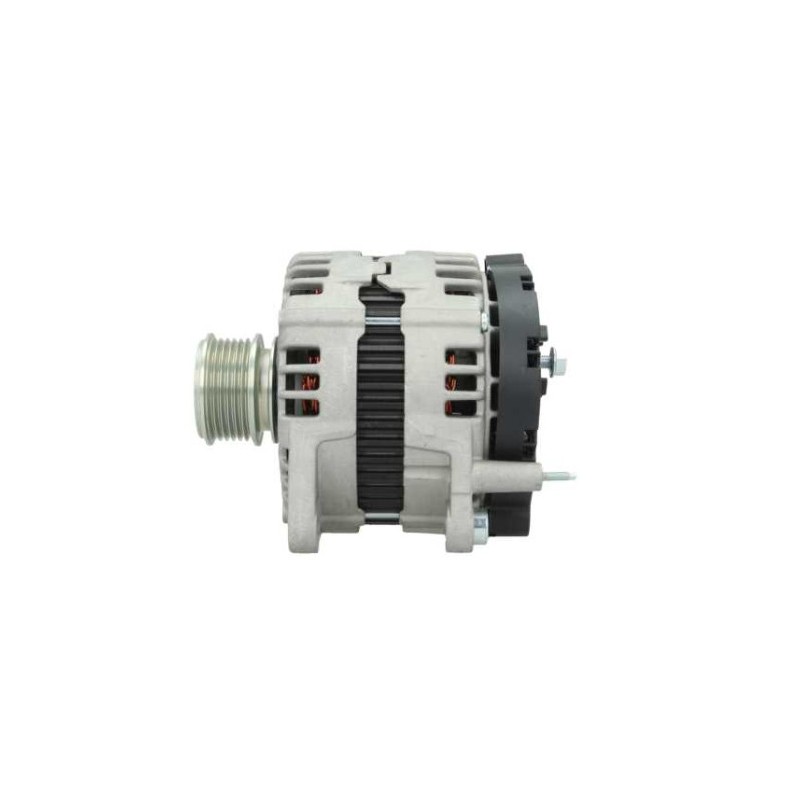

Alternator replacing BOSCH 0121715071 / 0121715171 / 0125811027 / 0125811028
Alternator NEW replacing BOSCH 0121715071 / 0121715171 / 0125811027 / 0125811028
VW 03l903023d / 03L903023DX / 03L903024F
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 180 | |

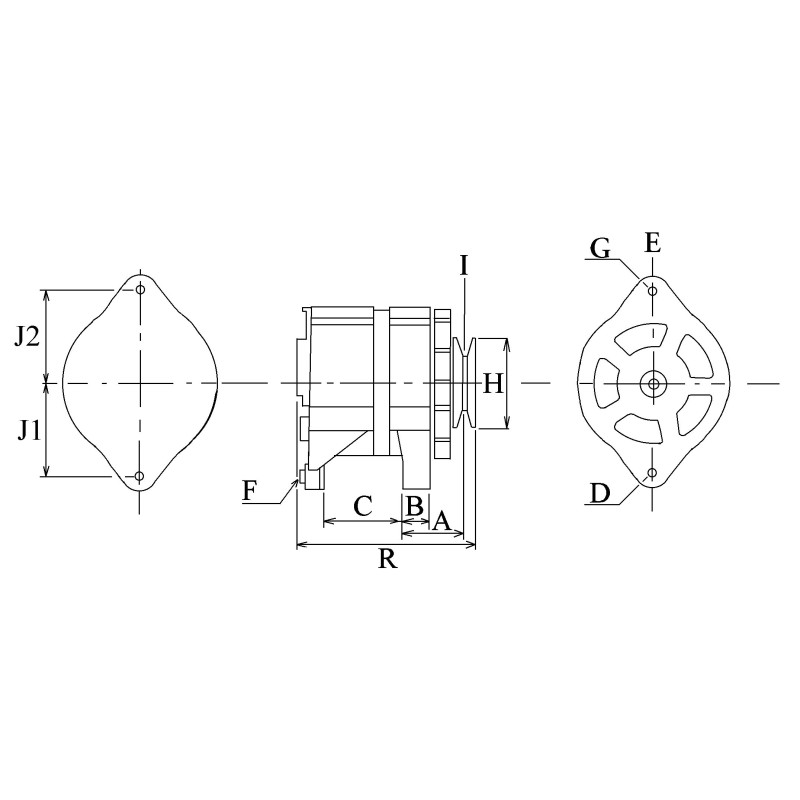

Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 14.35 |
| E | Belt. adj. brackethole pos. | 45 |
| C | Mount. bracket dist | 64.10 |
| H | Pulley dia. | 55.80 |
| A | Pulley dist. | 39.50 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

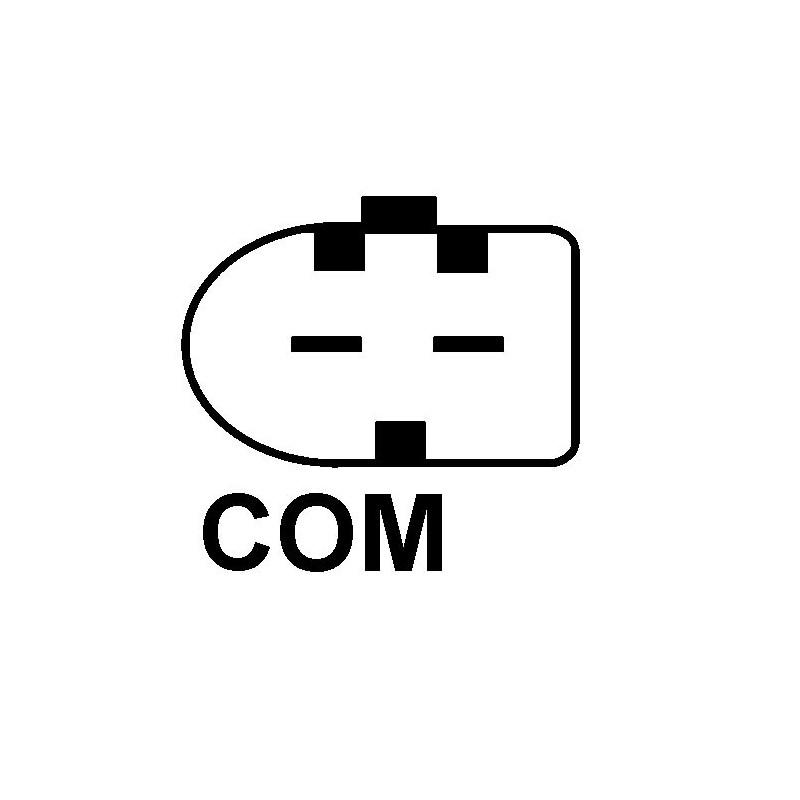

| o | Plug no. 1 | PL86 |
| R | Total length mm | 193.00 |
Replacing | |
|---|---|
| 0121715071 | BOSCH |
| 0121715171 | BOSCH |
| 0125811027 | BOSCH |
| 0125811028 | BOSCH |
| 03l903023d | VOLKSWAGEN |
| 03L903023DX | VOLKSWAGEN |
| 03L903024F | VOLKSWAGEN |
| ca2188ir | HC-PARTS |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
