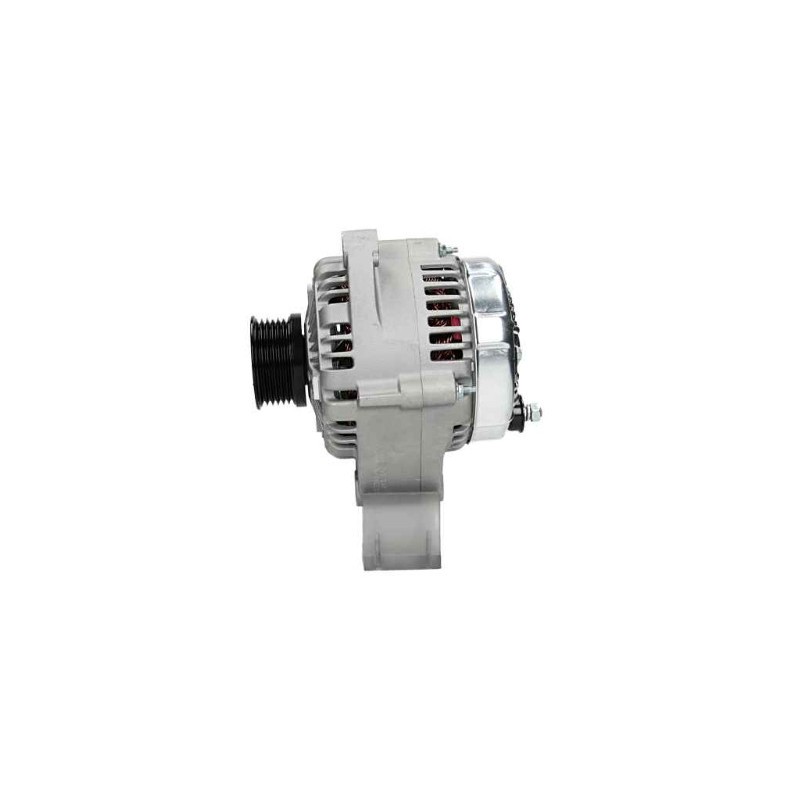

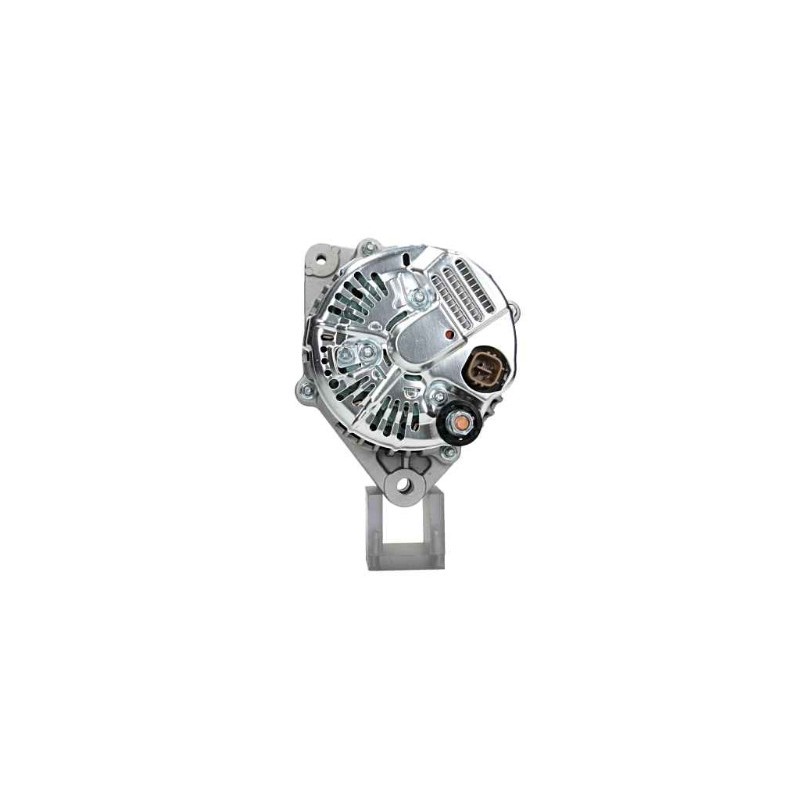

Alternator replacing 102211-0860 / 1X4310300BD / XR822418
Alternator NEW replacing DENSO 102211-0860 / FORD 1X4310300BD / JAGUAR 1X4310300BD / XR822418
DRA0433 / LRA03195 / TNA017 / KTR1691006240
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 120 | |

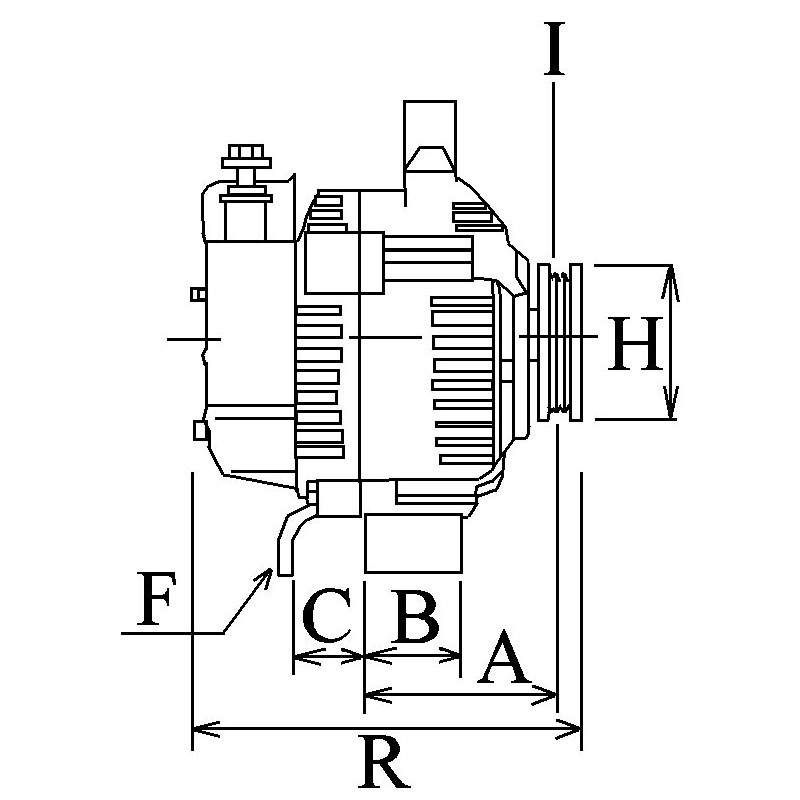

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 58.00 |
| E | Belt. adj. brackethole pos. | 7 |
| H | Pulley dia. | 59.00 |
| A | Pulley dist. | 97.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 86.00 |
| j | Radius 2 | 86.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

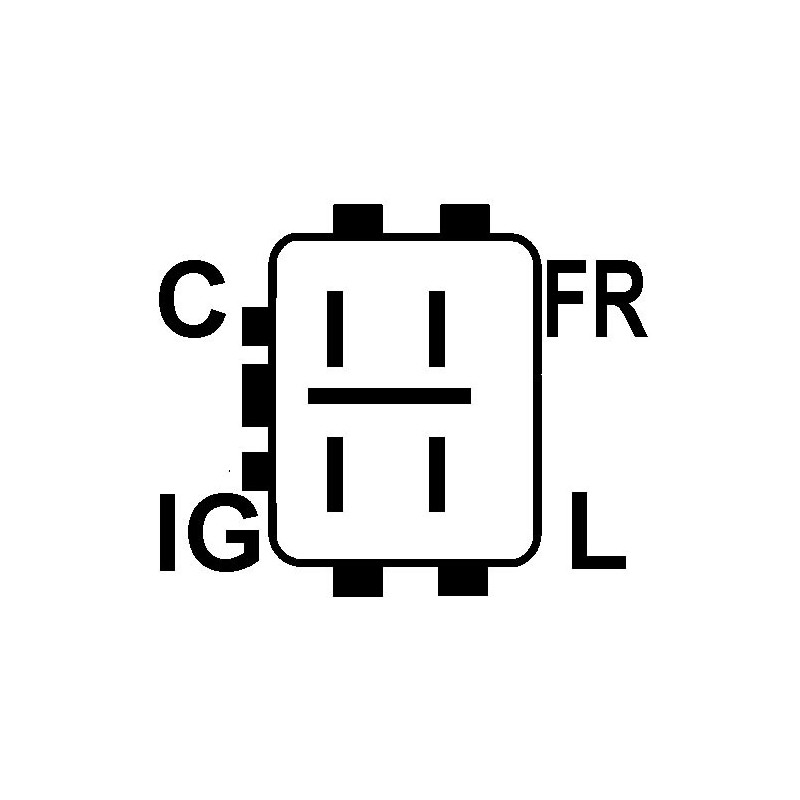

| o | Plug no. 1 | PL60 |
| R | Total length mm | 197.00 |
Replacing | |
|---|---|
| 102211-0860 | DENSO |
| 1X4310300BD | FORD |
| 1X4310300BD | JAGUAR |
| c2s40072 | JAGUAR |
| XR822418 | JAGUAR |
| 1022110860 |
| 13925 |
| 1X4310300BD |
| 285807 |
| 2905087 |
| 845503120 |
| 9090664F |
| 930433 |
| ALT6141sa |
| DRA0433 |
| KTR1691006240 |
| L80810 |
| LRA03195 |
| OAN11674 |
| TNA017 |
| XR822418 |
Mounted on :
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X-type | X-type | 2.5 | Unleaded | 2001 06 | - | XB | V6 | 144 | 196 | 2495 | 6 | CF1 | ||
| X-type | X-type | 2.5 | Unleaded | 2004 02 | - | XB | V6 | 144 | 196 | Break | 2495 | 6 | ||
| X-type | X-type | 2.0 | Unleaded | 2003 11 | - | YB (AJ-V6) | V6 | 115 | 156 | Break | 2099 | 6 | ||
| X-type | X-type | 2.0 | Unleaded | 2002 03 | 2005 10 | YB | V6 | 115 | 156 | 2099 | 6 | |||
| X-type | X-type | 3.0 | Unleaded | 2001 06 | - | AJ-V6 | V6 | 169 | 230 | 2967 | 6 | |||
| X-type | X-type | 3.0 | Unleaded | 2004 02 | - | AJ-V6 | V6 | 169 | 230 | Break | 2967 | 6 |
