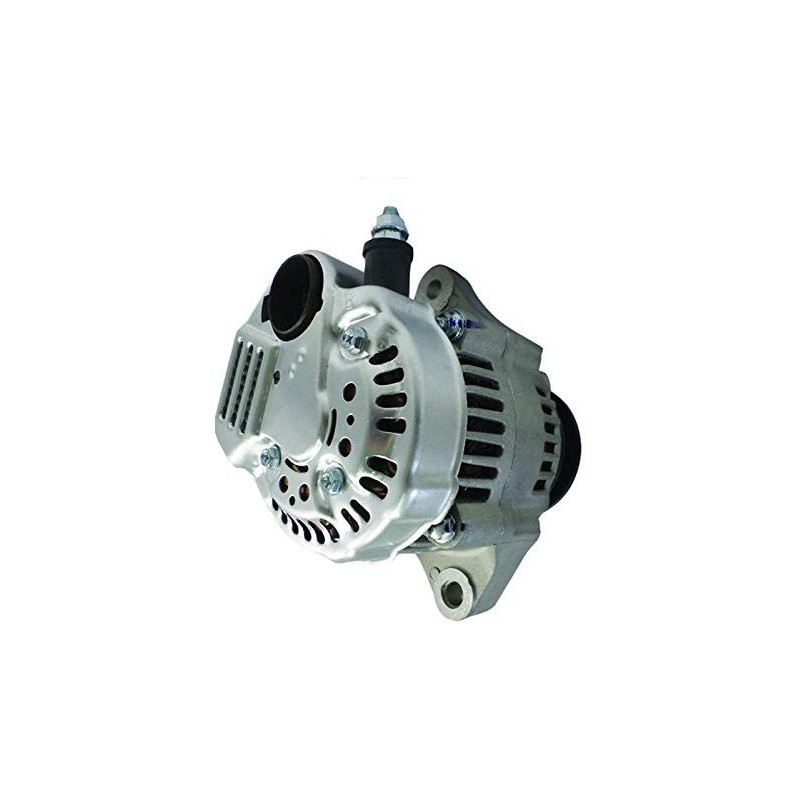

Alternator replacing 101211-1240 / 101211-1242 / 8972251170 / 8972251170 / AT195649
| 0210800830 | Denso |
| 1002114710 | Denso |
| 1012111240 | Denso |
| 1012111242 | Denso |
| 114679 | Cargo |
| 135565035 | PSH |
| 20201190 | AES |
| 241118 | Cargo |
| 283791 | Elstock |
| 8970489681 | Isuzu |
| 8972251170 | Isuzu |
| 90295528 | Wilson |
| ALT30101 | Wood Auto |
| AT195649 | John Deere |
| AT254905 | John Deere |
More info
Spécification Electricals | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 35 | |

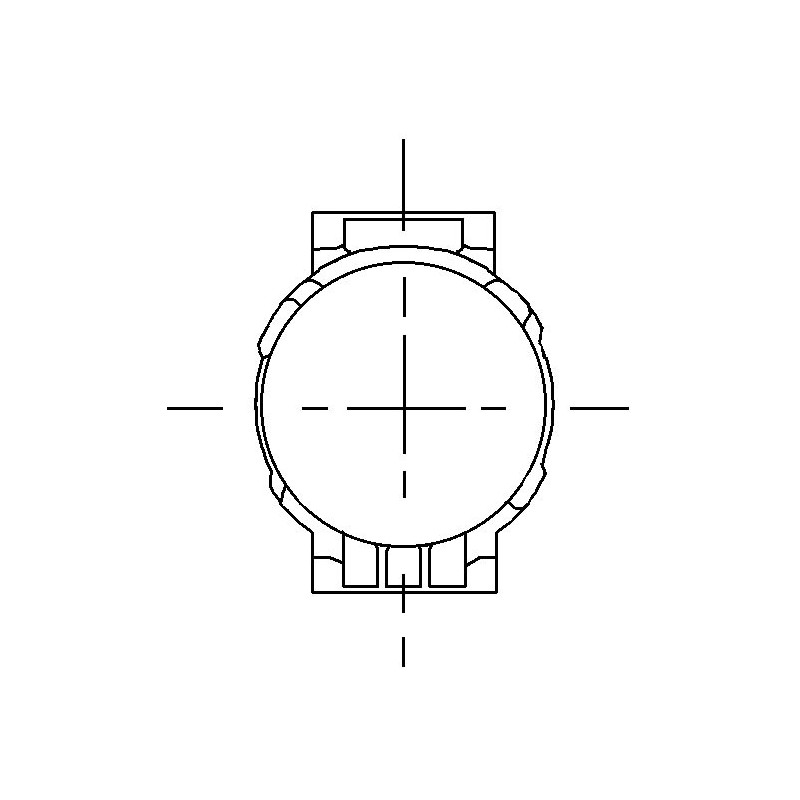

Spécification Physique | ||
|---|---|---|
| A | Pulley dist. | 40.00 |
| B | Width/holder arm | 24.00 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | M8 |
| G | Belt. adj. bracket hole 2 2 | 30 |
| H | Pulley dia. | 75.60 |
| I | Grooves/pulley | 1 |
| J | Radius | 69.50 |
| J | Radius 2 | 67.50 |
| K | Position B + | M6 |
| K | B+ position en min. | 60 |
| N | Rotation | Cr |

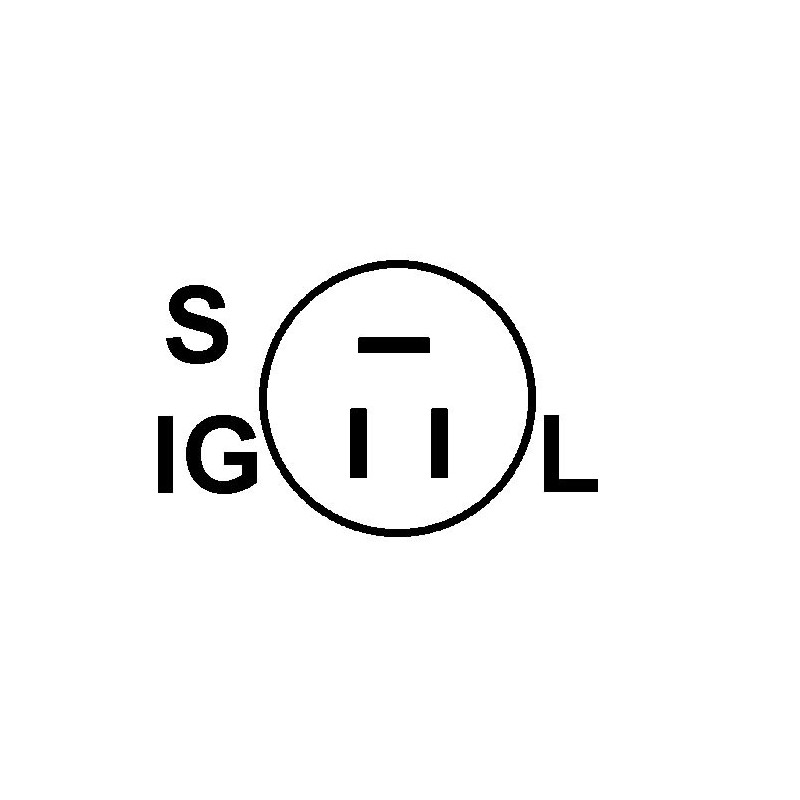

| O | Plug n° 1 | PL12 |
| R | Total length mm | 140.00 |
generic brand
Replacing :
DENSO 101211-1240, 101211-1242,
ISUZU 8972251170
JOHN DEERE 8972251170, AT195649
Mounted on :
JOHN DEERE
ISUZU
