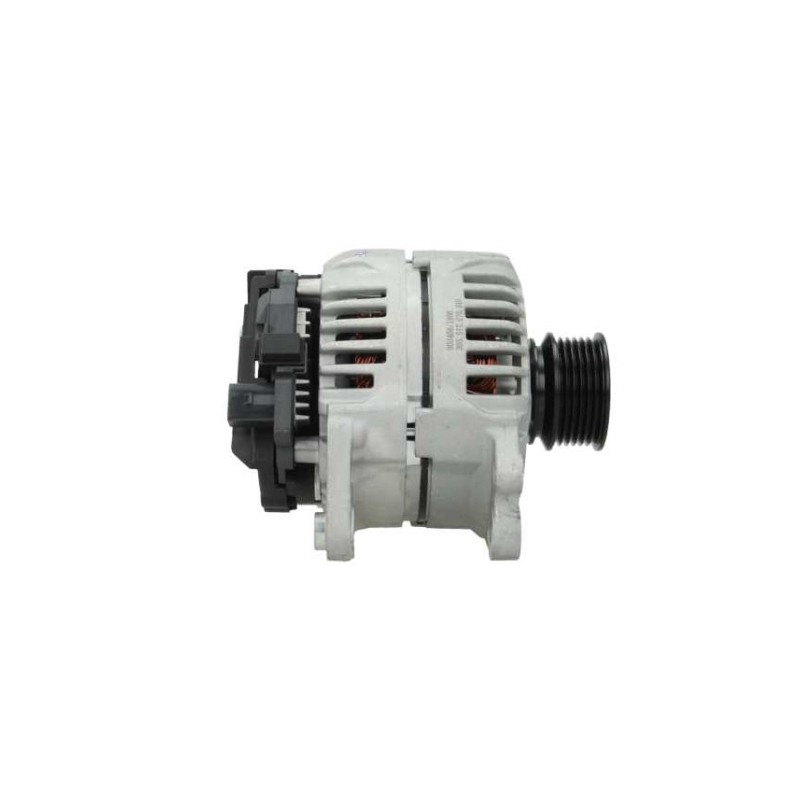

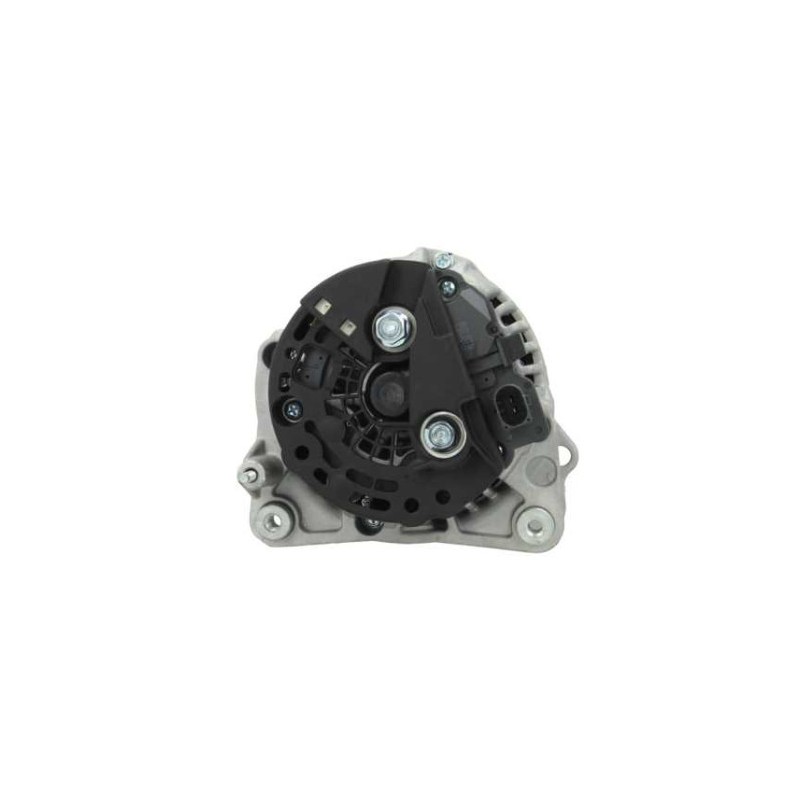

Alternator replacing 0124315 003 / 0124315035 / 028-903-028C / 06A-903-026B / 9-517-103
Alternator NEW replacing :
BOSCH 0986041510 / 0986041511 / 0986042600
DELCO REMY DRB1510 / DRB2600 / DRB2600N
VALEO 437315 / 437396 / 439310 / 439437 / SG8B011 / SG8B015 /SG8B029
NO CORE EXCHANGE NEEDED
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 70 | |
Physical Information | ||
|---|---|---|
| A | Pulley dist. | 40.00 |
| B | Width/holder arm | 14.00 |
| C | Mount. bracket dist | 60.75 |
| D | Bracket hole | 8.50 |
| E | Belt. adj. brackethole pos. | 45 |
| G | Belt. adj. bracket hole | 8.50 |
| H | Pulley dia. | 56.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 88.00 |
| J | Radius 2 | 88.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 45 |
| N | Rotation | Cr |

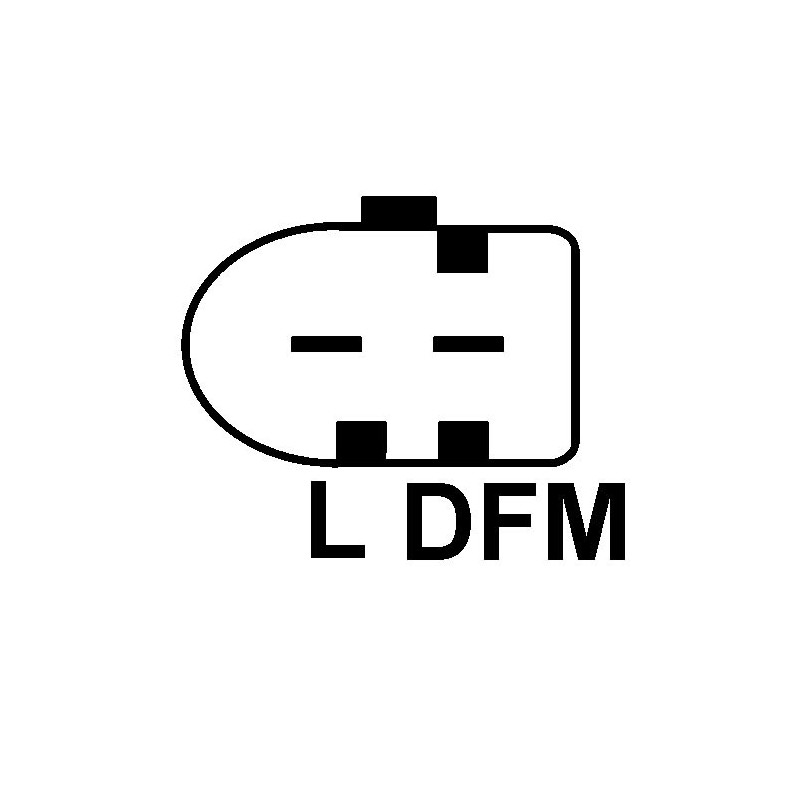

| O | Plug n° 1 | PL61 |
| R | Total length mm | 182.00 |
generic brand
Replacing :
| 0124315003 | BOSCH |
| 0124315004 | BOSCH |
| 028903028C | VW |
| 030903023H | VW |
| 030903023L | VW |
| 037903025E | VW |
| 038903018S | VW |
| 038903018SX | VW |
| 038903023 | VW |
| 06B903018TX | VW |
| 0986041510 | BOSCH |
| 0986041511 | BOSCH |
| 0986042600 | BOSCH |
| 112273 | Cargo |
| 12041510 | EuroTec |
| 12042600 | EuroTec |
| 12201164 | AES |
| 1245201BO | WAI |
| 1290101BO | WAI |
| 13850 | Lester |
| 13850N | WAI |
| 13850R | WAI |
| 13852R6G | WAI |
| 21485 | Lester |
| 2205100 | PIC |
| 2205100B | PIC |
| 22912 | LUCAS |
| 283601 | Elstock |
| 283794 | Elstock |
| 305517070 | PSH |
| 437315 | VALEO |
| 437396 | VALEO |
| 439310 | VALEO |
| 439437 | VALEO |
| 542240 | VALEO |
| 542257 | VALEO |
| 56844 | EAI |
| 5736SP | Spidan |
| 5837SP | Spidan |
| 746122 | VALEO |
| 8EL012428101 | HELLA |
| 8EL737626001 | HELLA |
| 8EL737770001 | HELLA |
| 90156331 | WILSON |
| 90156553 | WILSON |
| 9041510F | Friesen |
| 9042600F | Friesen |
| 941510 | EDR |
| 942600N | EDR |
| ALT1317sa | Electrolog |
| ALTH087 | UNIPOINT |
| CA1436IR | HC |
| CA1511IR | HC |
| DRB1510 | DELCO REMY |
| DRB2600 | DELCO REMY |
| DRB2600N | DELCO REMY |
| F042A0H087 | UNIPOINT |
| HCA1436IR | HC |
| HCA1511IR | HC |
| L41510 | ATL |
| L42600 | ATL |
| LRA01912 | LUCAS |
| LRB00485 | LUCAS |
| OAN11313 | Optimum |
| SG8B011 | VALEO |
| SG8B015 | VALEO |
| SG8B029 | VALEO |
Mounted on :
| Brand | Model | Tipo | Year |
| AUDI | A3 1.6 | [AEH] | 09.1996-05.2003 |
| AUDI | A3 1.6 | [AKL] | 09.1996-05.2003 |
| AUDI | A3 1.6 | [APF] | 09.1996-05.2003 |
| AUDI | A3 1.6 | [BFQ] | 08.2000-05.2003 |
| AUDI | A3 1.8 | [AGN] | 09.1996-05.2003 |
| AUDI | A3 1.8 | [APG] | 08.1998-04.2003 |
| AUDI | A3 1.8 Turbo | [AJQ] | 08.1998-05.2003 |
| AUDI | A3 1.8 Turbo | [APP] | 08.1998-05.2000 |
| AUDI | A3 1.8 Turbo | [ARY] | 09.2000-06.2001 |
| AUDI | A3 1.8 Turbo | [AUQ] | 05.2000-06.2003 |
| AUDI | A3 1.8 Turbo 20V | [AGU] | 12.1996-05.2003 |
| AUDI | A3 1.8 Turbo 20V | [AQA] | 12.1996-05.2003 |
| AUDI | A3 1.8 Turbo 20V | [ARZ] | 12.1996-05.2003 |
| AUDI | A3 1.8 Turbo 20V | [AUM] | 12.1996-05.2003 |
| AUDI | A3 1.8 Turbo Quattro | [AGU] | 08.1997-08.2000 |
| AUDI | A3 1.8 Turbo Quattro | [AJQ] | 10.1998-05.2003 |
| AUDI | A3 1.8 Turbo Quattro | [AQA] | 08.1998-05.2003 |
| AUDI | A3 1.8 Turbo Quattro | [ARX] | 10.1999-06.2003 |
| AUDI | A3 1.8 Turbo Quattro | [ARY] | 10.1998-05.2003 |
| AUDI | S3 1.8 Quattro | [AMK] | 03.1999-04.2002 |
| AUDI | S3 1.8 Quattro | [APY] | 03.1999-04.2002 |
| SEAT | Cordoba 1.6 | [AEH] | 06.1999-10.2002 |
| SEAT | Cordoba 1.6 | [AEH] | 01/06/99 |
| SEAT | Cordoba 1.6 | [AKL] | 01/06/99 |
| SEAT | Cordoba 1.6 | [APF] | 01/06/99 |
| SEAT | Cordoba 1.8 Turbo 20V Cupra | [AQX] | 07.2000-10.2002 |
| SEAT | Cordoba 2.0 | [AZL] | 01/09/02 |
| SEAT | Ibiza 1.6 | [APF] | 08.1999-02.2002 |
| SEAT | Ibiza 1.8 Turbo 20V Cupra | [AYP] | 07.2000-02.2002 |
| SEAT | Ibiza 1.8 Turbo Cupra R | [BBU] | 01/01/04 |
| SEAT | Ibiza 1.8 Turbo FR | [BJX] | 01/12/03 |
| SEAT | Ibiza 1.8 Turbo FR | [BKV] | 01/12/03 |
| SEAT | Ibiza 2.0 | [AZL] | 01/04/02 |
| SEAT | Leon 1.4 16V | [AHW] | 01/11/99 |
| SEAT | Leon 1.4 16V | [APE] | 01/11/99 |
| SEAT | Leon 1.6 | [AEH] | 01/11/99 |
| SEAT | Leon 1.6 | [AKL] | 01/11/99 |
| SEAT | Leon 1.6 16V | [AUS] | 01/09/00 |
| SEAT | Leon 1.6 16V | [AZD] | 01/09/00 |
| SEAT | Leon 1.6 16V | [BCB] | 01/09/00 |
| SEAT | Leon 1.8 20V | [AGN] | 01/11/99 |
| SEAT | Leon 1.8 Turbo | [APP] | 01/11/99 |
| SEAT | Leon 1.8 Turbo 20V 4 Syncro | [AJQ] | 01/11/99 |
| SEAT | Leon 1.8 Turbo 20V 4 Syncro | [ARY] | 01/11/99 |
| SEAT | Toledo 1.4 16V | [AHW] | 07.1999-08.2000 |
| SEAT | Toledo 1.6 | [AEH] | 04.1999-09.2000 |
| SEAT | Toledo 1.6 | [AKL] | 04.1999-09.2000 |
| SEAT | Toledo 1.8 20V | [AGN] | 04.1999-05.2006 |
| SKODA | Fabia 2.0 | [AZL] | 01/12/99 |
| SKODA | Fabia 2.0 | [AZL] | 01/04/00 |
| SKODA | Octavia 1.4 | [AXP] | 01/08/00 |
| SKODA | Octavia 1.4 | [BCA] | 01/06/04 |
| SKODA | Octavia 1.4 16V | [AXP] | 01/09/00 |
| SKODA | Octavia 1.4 16V | [BCA] | 01/09/00 |
| SKODA | Octavia 1.6 | [AEE] | 09.1996-09.2000 |
| SKODA | Octavia 1.6 | [AEE] | 01/07/98 |
| SKODA | Octavia 1.6 | [AEH] | 01/02/97 |
| SKODA | Octavia 1.6 | [AEH] | 01/07/98 |
| SKODA | Octavia 1.6 | [AKL] | 01/02/97 |
| SKODA | Octavia 1.6 | [AKL] | 01/07/98 |
| SKODA | Octavia 1.8 Turbo | [AGU] | 01/08/97 |
| SKODA | Octavia 1.8 Turbo | [AGU] | 01/07/98 |
| SKODA | Octavia 1.8 Turbo | [ARX] | 01/08/97 |
| SKODA | Octavia 1.8 Turbo | [ARX] | 01/07/98 |
| SKODA | Octavia 1.8 Turbo | [ARZ] | 01/07/98 |
| SKODA | Octavia 1.8 Turbo | [AUM] | 01/08/97 |
| SKODA | Octavia 1.8 Turbo | [AUM] | 01/07/98 |
| SKODA | Octavia 1.8 Turbo 4x4 | [AGU] | 01/05/01 |
| SKODA | Octavia 1.8 Turbo 4x4 | [ARX] | 01/05/01 |
| SKODA | Octavia 1.8 Turbo 4x4 | [AUM] | 01/05/01 |
| SKODA | Octavia 1.8 Turbo RS | [AUQ] | 01/08/02 |
| SKODA | Octavia 2.0 | [AEG] | 01/04/99 |
| SKODA | Octavia 2.0 | [APK] | 01/04/99 |
| SKODA | Octavia 2.0 | [AQY] | 01/04/99 |
| SKODA | Octavia 2.0 | [ATF] | 01/01/00 |
| SKODA | Octavia 2.0 | [AZH] | 01/04/99 |
| SKODA | Octavia 2.0 | [AZJ] | 01/04/99 |
| SKODA | Octavia 2.0 4x4 | [AEG] | 01/05/01 |
| SKODA | Octavia 2.0 4x4 | [AQY] | 01/05/01 |
| SKODA | Octavia 2.0 4x4 | [AZH] | 01/05/01 |
| SKODA | Octavia 2.0 4x4 | [AZJ] | 01/05/01 |
| VW | Beetle 2.0 | [AEG] | 01.1999-01.2000 |
| VW | Beetle 2.0 | [AVH] | 01.2001-01.2001 |
| VW | Beetle 2.0 | [AVH] | 01.2002-01.2003 |
| VW | Beetle 2.0 | [AVH] | 01/01/04 |
| VW | Beetle 2.0 | [AVH] | 01/01/05 |
| VW | Beetle 2.0 | [AZG] | 01.2001-01.2001 |
| VW | Beetle 2.0 | [AZG] | 01.2002-01.2002 |
| VW | Beetle 2.0 | [AZG] | 01/01/04 |
| VW | Beetle 2.0 | [AZG] | 01/01/05 |
| VW | Beetle 2.0 | [BDC] | 01.2003-01.2003 |
| VW | Beetle 2.0 | [BDC] | 01/01/04 |
| VW | Beetle 2.0 | [BEV] | 01/01/04 |
| VW | Beetle 2.0 | [BEV] | 01/01/05 |
| VW | Beetle 2.0 | [BGD] | 01/01/04 |
| VW | Bora 1.4 16V | [AHW] | 03.2000-05.2005 |
| VW | Bora 1.4 16V | [AHW] | 09.2001-05.2005 |
| VW | Bora 1.4 16V | [AKQ] | 03.2000-05.2005 |
| VW | Bora 1.4 16V | [APE] | 03.2000-05.2005 |
| VW | Bora 1.4 16V | [AXP] | 03.2000-05.2005 |
| VW | Bora 1.4 16V | [AXP] | 09.2001-05.2005 |
| VW | Bora 1.4 16V | [BCA] | 03.2000-05.2005 |
| VW | Bora 1.4 16V | [BCA] | 09.2001-05.2005 |
| VW | Bora 1.6 | [AEH] | 10.1998-05.2005 |
| VW | Bora 1.6 | [AEH] | 05.1999-05.2005 |
| VW | Bora 1.6 | [AKL] | 10.1998-05.2005 |
| VW | Bora 1.6 | [AKL] | 05.1999-05.2005 |
| VW | Bora 1.6 | [APF] | 10.1998-05.2005 |
| VW | Bora 1.6 | [APF] | 05.1999-05.2005 |
| VW | Bora 1.6 | [ATN] | 01/08/99 |
| VW | Bora 1.6 | [AVU] | 08.2000-05.2005 |
| VW | Bora 1.6 | [BFQ] | 08.2000-05.2005 |
| VW | Bora 1.6 16V | [ATN] | 02.2000-05.2005 |
| VW | Bora 1.6 16V | [AUS] | 02.2000-05.2005 |
| VW | Bora 1.6 16V | [AUS] | 05.2000-05.2005 |
| VW | Bora 1.6 16V | [AZD] | 02.2000-05.2005 |
| VW | Bora 1.6 16V | [BCB] | 02.2000-05.2005 |
| VW | Bora 1.8 | [AGN] | 10.1998-05.2005 |
| VW | Bora 1.8 | [ARX] | 05.2000-05.2005 |
| VW | Bora 1.8 | [AUM] | 05.2000-05.2005 |
| VW | Bora 1.8 4-Motion | [AGN] | 02.1999-05.2005 |
| VW | Bora 1.8 4-Motion | [AGN] | 05.1999-05.2005 |
| VW | Bora 1.8 Turbo | [AGU] | 05.2000-05.2005 |
| VW | Bora 1.8 Turbo | [ARX] | 05.2000-05.2005 |
| VW | Bora 1.8 Turbo | [AUM] | 05.2000-05.2005 |
| VW | Bora 1.8 Turbo | [AUQ] | 03.2002-05.2005 |
| VW | Bora 1.8 Turbo | [AUQ] | 05.2002-05.2005 |
| VW | Bora 1.9 TDi | [AJM] | 05.1999-06.2001 |
| VW | Bora 1.9 TDi | [AUY] | 05.1999-06.2001 |
| VW | Bora 2.0 | [APK] | 10.1998-05.2005 |
| VW | Bora 2.0 | [APK] | 05.1999-05.2005 |
| VW | Bora 2.0 | [AQY] | 10.1998-05.2005 |
| VW | Bora 2.0 | [AQY] | 05.1999-05.2005 |
| VW | Bora 2.0 | [AZG] | 05.1999-05.2005 |
| VW | Bora 2.0 | [AZG] | 04.2000-05.2005 |
| VW | Bora 2.0 | [AZH] | 05.1999-05.2005 |
| VW | Bora 2.0 | [AZJ] | 05.1999-05.2005 |
| VW | Bora 2.0 4-Motion | [AZH] | 04.2000-05.2005 |
| VW | Bora 2.0 4-Motion | [AZJ] | 04.2000-05.2005 |
| VW | Golf III 1.9 TDi | [ALH] | 01.1999-01.1999 |
| VW | Golf III 1.9 Turbo | [ALH] | 01.2000-01.2000 |
| VW | Golf III 2.8 GTi | [AAA] | 01.1999-01.1999 |
| VW | Golf III 2.8 GTi | [AFP] | 01.1999-01.2002 |
| VW | Golf IIII 1.9 Turbo | [ALH] | 01.2001-01.2001 |
| VW | Golf IIII 2.8 GTi | [BDF] | 01.2002-01.2002 |
| VW | Golf IV 1.4 16V | [AHW] | 08.1997-06.2005 |
| VW | Golf IV 1.4 16V | [AHW] | 01/05/99 |
| VW | Golf IV 1.4 16V | [AKQ] | 08.1997-06.2005 |
| VW | Golf IV 1.4 16V | [AKQ] | 05.1999-05.2000 |
| VW | Golf IV 1.4 16V | [APE] | 05.1999-05.2000 |
| VW | Golf IV 1.4 16V | [AXP] | 05.2000-10.2001 |
| VW | Golf IV 1.6 | [AEH] | 08.1997-02.2000 |
| VW | Golf IV 1.6 | [AKL] | 08.1997-02.2000 |
| VW | Golf IV 1.6 | [AKL] | 05.1999-02.2000 |
| VW | Golf IV 1.6 | [APF] | 05.1999-02.2000 |
| VW | Golf IV 1.6 | [AVU] | 08.2000-06.2005 |
| VW | Golf IV 1.6 | [AVU] | 01/08/00 |
| VW | Golf IV 1.8 | [AGN] | 08.1997-06.2005 |
| VW | Golf IV 1.8 | [AGU] | 08.1997-06.2005 |
| VW | Golf IV 1.8 | [ARZ] | 08.1997-06.2005 |
| VW | Golf IV 1.8 4-Motion | [AGN] | 05.1998-06.2005 |
| VW | Golf IV 1.8 4-Motion | [AGN] | 01/05/99 |
| VW | Golf IV 1.8 GTi Turbo | [AUQ] | 08.2001-06.2005 |
| VW | Golf IV 1.8 Turbo | [AGU] | 01/05/00 |
| VW | Golf IV 1.8 Turbo | [AUM] | 01/05/00 |
| VW | Golf IV 1.9 TDi | [AJM] | 12.1998-06.2001 |
| VW | Golf IV 1.9 TDi | [AUY] | 12.1998-06.2001 |
| VW | Golf IV 1.9 TDi | [AUY] | 08.1999-06.2001 |
| VW | Golf IV 2.0 | [APK] | 07.1998-06.2005 |
| VW | Golf IV 2.0 | [APK] | 01/05/99 |
| VW | Golf IV 2.0 | [AQY] | 07.1998-06.2005 |
| VW | Golf IV 2.0 | [AQY] | 01/05/99 |
| VW | Golf IV 2.0 | [AZG] | 07.1998-06.2005 |
| VW | Golf IV 2.0 | [AZJ] | 07.1998-06.2005 |
| VW | Golf IV 2.0 4-Motion | [AZH] | 10.2000-06.2005 |
| VW | Golf IV 2.0 4-Motion | [AZH] | 01/10/00 |
| VW | Golf IV 2.0 4-Motion | [AZJ] | 10.2000-06.2005 |
| VW | Golf IV 2.0 4-Motion | [AZJ] | 01/10/00 |
| VW | Golf IV 2.0 BiFuel | [BEH] | 01/02/02 |
| VW | Golf V 1.4 16V | [BCA] | 01/01/05 |
| VW | Jetta 1.9 TDi | [ALH] | 01.1999-01.2001 |
| VW | Jetta 2.8 GLi | [BDF] | 01/01/03 |
| VW | Jetta 2.8 GLS | [AFP] | 01.1999-01.2002 |
| VW | Jetta 2.8 GLS | [BDF] | 01.2002-01.2002 |
| VW | Jetta 2.8 GLX | [AAA] | 01.1999-01.1999 |
| VW | Jetta 2.8 GLX | [AFP] | 01.1999-01.2002 |
| VW | Jetta 2.8 GLX | [BDF] | 01.2002-01.2002 |
| VW | Jetta 2.8 GLX | [BDF] | 01/01/03 |
| VW | Lupo 1.6 GTi | [AVY] | 09.2000-07.2005 |
| VW | New Beetle 1.4 | [BCA] | 11.2001-09.2010 |
| VW | New Beetle 1.6 | [AWH] | 10.1999-09.2000 |
| VW | New Beetle 1.6 | [AYD] | 06.2000-09.2010 |
| VW | New Beetle 1.6 | [BFS] | 01/01/03 |
| VW | New Beetle 1.8 | [APH] | 10.1999-09.2010 |
| VW | New Beetle 1.8 | [AVC] | 05.1999-09.2010 |
| VW | New Beetle 1.8 | [AWU] | 10.2000-09.2010 |
| VW | New Beetle 1.8 | [AWV] | 06.2000-09.2010 |
| VW | New Beetle 1.8 Turbo | [AWP] | 11.2001-06.2005 |
| VW | New Beetle 1.8 Turbo | [AWU] | 01/01/03 |
| VW | New Beetle 1.8 Turbo | [BNU] | 01/07/04 |
| VW | New Beetle 2.0 | [AEG] | 01.1998-09.2010 |
| VW | New Beetle 2.0 | [APK] | 01.1998-09.2010 |
| VW | New Beetle 2.0 | [AQY] | 01.1998-09.2010 |
| VW | New Beetle 2.0 | [AVH] | 01.1998-09.2010 |
| VW | New Beetle 2.0 | [AZG] | 01.1998-09.2010 |
| VW | New Beetle 2.0 | [AZJ] | 01.1998-09.2010 |
| VW | New Beetle 2.0 | [AZJ] | 01/09/02 |
| VW | New Beetle 2.0 | [BDC] | 01/09/02 |
| VW | New Beetle 2.0 | [BEV] | 01.1998-09.2010 |
| VW | New Beetle 2.0 | [BGD] | 01/09/02 |
| VW | New Beetle 3.2 RSi | [AXJ] | 04.2000-05.2001 |
| VW | Polo 1.6 | [AEH] | 05.1997-09.2001 |
| VW | Polo 1.6 | [AEH] | 10.1999-09.2001 |
| VW | Polo 1.6 | [AKL] | 05.1997-09.2001 |
| VW | Polo 1.6 | [AKL] | 10.1999-09.2001 |
| VW | Polo 1.6 | [APF] | 05.1997-09.2001 |
| VW | Polo 1.6 | [APF] | 03.2000-10.2000 |
| VW | Polo 1.6 | [AUR] | 05.1997-09.2001 |
| VW | Polo 1.6 | [AUR] | 07.2000-09.2001 |
| VW | Polo 1.8 GTi | [BJX] | 01/09/05 |
NO CORE EXCHANGE NEEDED
Two Years Warranty
