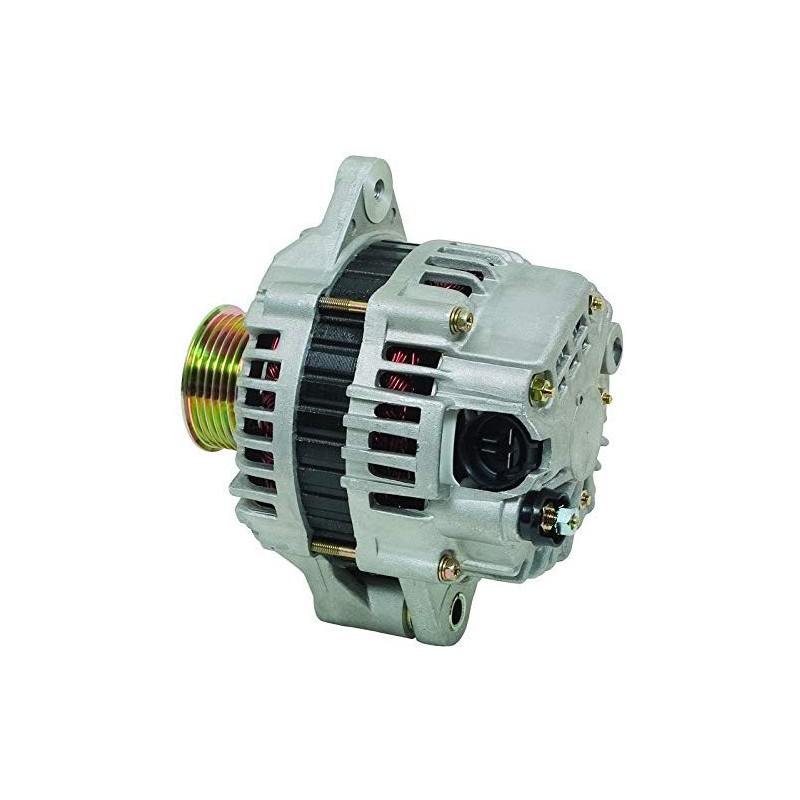

Alternator replacing 8972043260 / 97204326 / LR190-743 / 0986044511
Alternator NEW replacing :
HITACHI LR190-743, HONDA 8972043260, ISUZU 8972043260
OPEL 93175824 / 93175970 / 97204326 / R1530058
NO CORE EXCHANGE NEEDED
More info
Spécification Electricals | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 90 | |
Spécification Physique | ||
|---|---|---|
| A | Pulley dist. | 89.50 |
| B | Width/holder arm | 56.55 |
| D | Bracket hole | 10.40 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 57.60 |
| I | Grooves/pulley | 6 |
| J | Radius | 80.00 |
| J | Radius 2 | 83.50 |
| K | Position B + | M8 |
| K | B+ position en min. | 40 |
| N | Rotation | Cr |

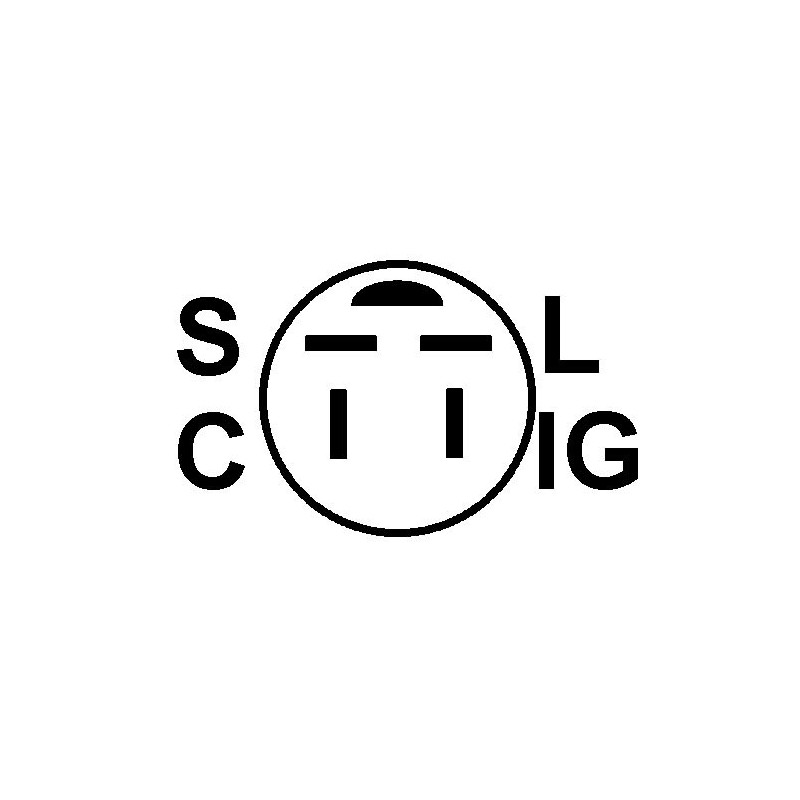

| O | Plug n° 1 | PL101 |
| R | Total length mm | 176.50 |
Replacing | |
|---|---|
| 4637 | Fae |
| 8972043260 | ISUZU |
| 97204326 | OPEL |
| LR190-743 | HITACHI |
| 0986044511 | BOSCH |
| 113563 | Cargo |
| 12044510 | EuroTec |
| 12060741 | EuroTec |
| 12090692 | EuroTec |
| 135543090 | PSH |
| 13935 | Lester |
| 13935N | WAI |
| 13935R | WAI |
| 284879 | Elstock |
| 57107 | EAI |
| 57191 | EAI |
| 6204163 | OPEL |
| 8972043260 | ISUZU |
| 90251163 | WILSON |
| 930896 | EDR |
| 93175824 | OPEL |
| 93175970 | OPEL |
| 9512807 | EDR |
| 97204326 | OPEL |
| ALT3025 | UNIPOINT |
| DRA0896 | DELCO REMY |
| F042305001 | BOSCH |
| L44510 | ATL |
| L68290 | ATL |
| LR1100705 | HITACHI |
| LR190743 | HITACHI |
| R1530058 | OPEL |
| TNA030 | TWA |
Mounted on :
HONDA USA
| Passport | Passport | 3.2 | Unleaded | 1998 01 | 2000 01 | 6VD1 | 0 | 0 | LX | 3165 | 6 | ||
| Passport | Passport | 3.2 | Unleaded | 1998 01 | 2000 01 | 6VD1 | 0 | 0 | EX | 3165 | 6 |
ISUZU
| Model | Model série | Reference d'origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Tipoe châssis | Tipoe modèle | Engine in cm3 | Cylindres |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rofromo | Rofromo | 3.2 | Unleaded | 1998 01 | 2000 01 | 6VD1 | 0 | 0 | 3165 | 6 |
