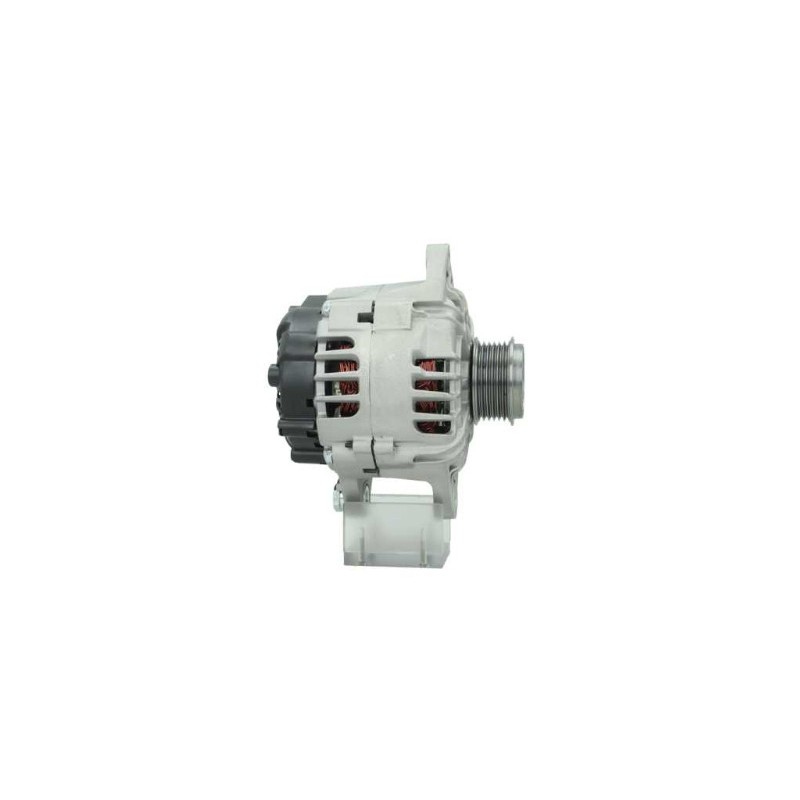

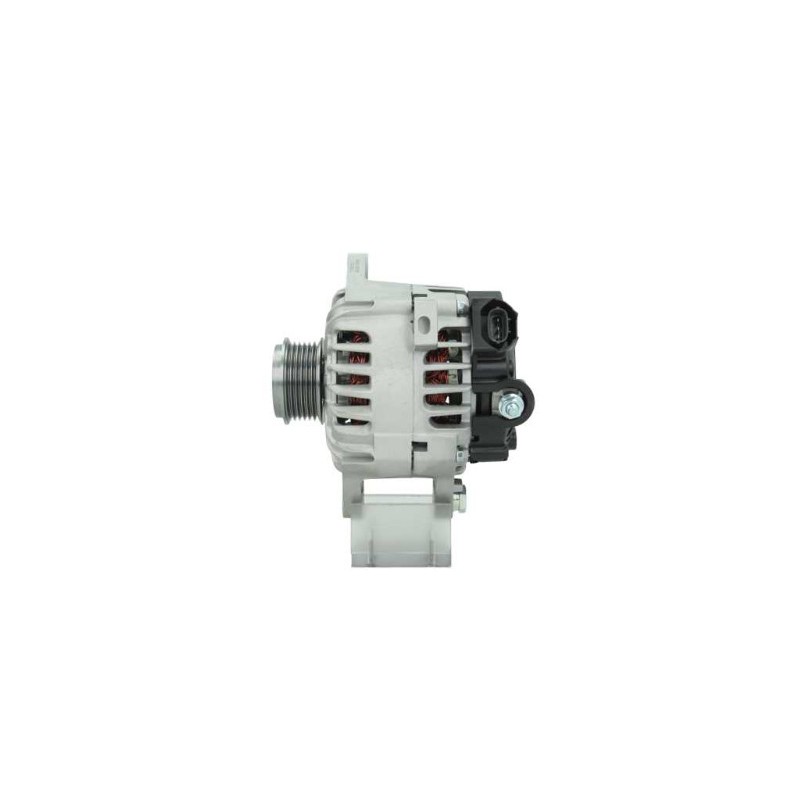

Alternator replacing VALEO 2610128 / 2616559 / BOSCH 0986083640 / KIA 37300-2B750
Alternator NEW replacing :
| 0986083640 |
| 255526110 |
| 2610128 |
| 2616559 |
| 286765 |
| 373002B750 |
| 373002B760 |
| 931311 |
| A0002610128 |
| A0002616559 |
| DRA1311 |
| LRA03704 |
| TRA283 |
NO CORE EXCHANGE NEEDED
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 110 | |

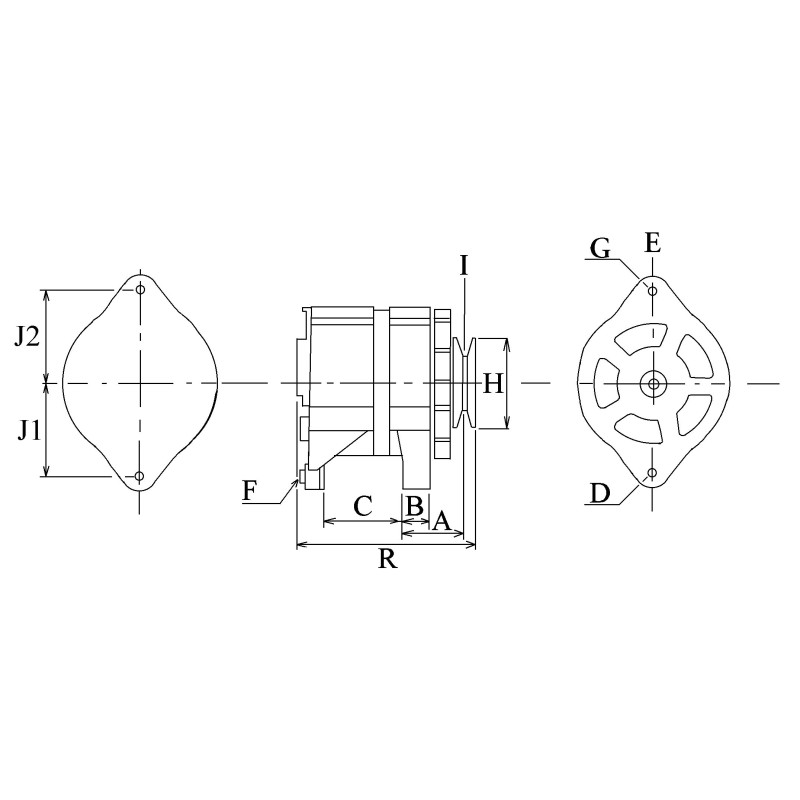

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 15.00 |
| E | Belt. adj. brackethole pos. | 3 |
| C | Mount. bracket dist | 50.00 |
| H | Pulley dia. | 58.00 |
| A | Pulley dist. | 33.50 |
| i | Grooves/pulley | 6 |
| j | Radius | 85.00 |
| j | Radius 2 | 86.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

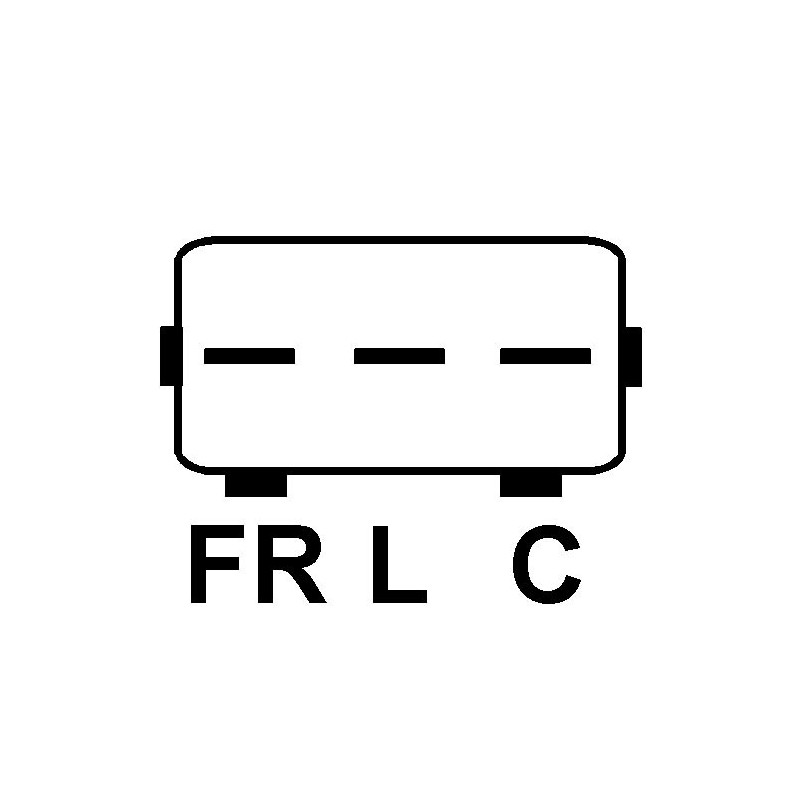

| o | Plug no. 1 | PL176 |
| R | Total length mm | 185.00 |
Replacing | |
|---|---|
| 2610128 | VALEO |
| 2616559 | VALEO |
| 37300-2B750 | KIA |
| 37300-2B760 | KIA |
| A0002610128 | VALEO |
| A0002616559 | VALEO |
generic brand
the VALEO alternator can be found under the part number w116226
Mounted on :
KIA
HYUNDAI
NO CORE EXCHANGE NEEDED
