Alternator replacing 2610128 / 2616559 / 0986083640 / 37300-2B750 for KIA CEED / HYUNDAI i30

W255526110

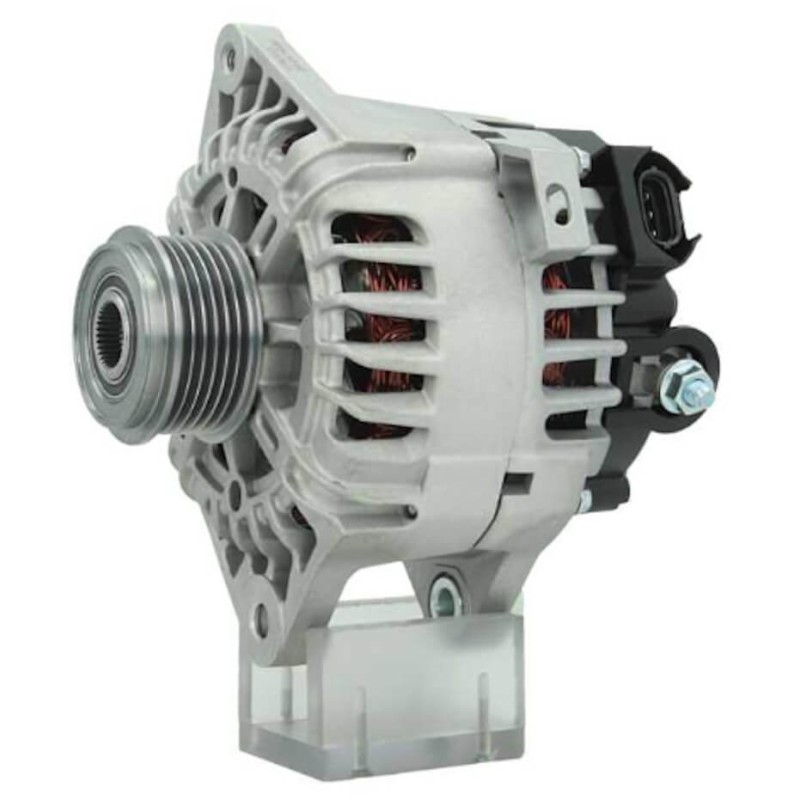

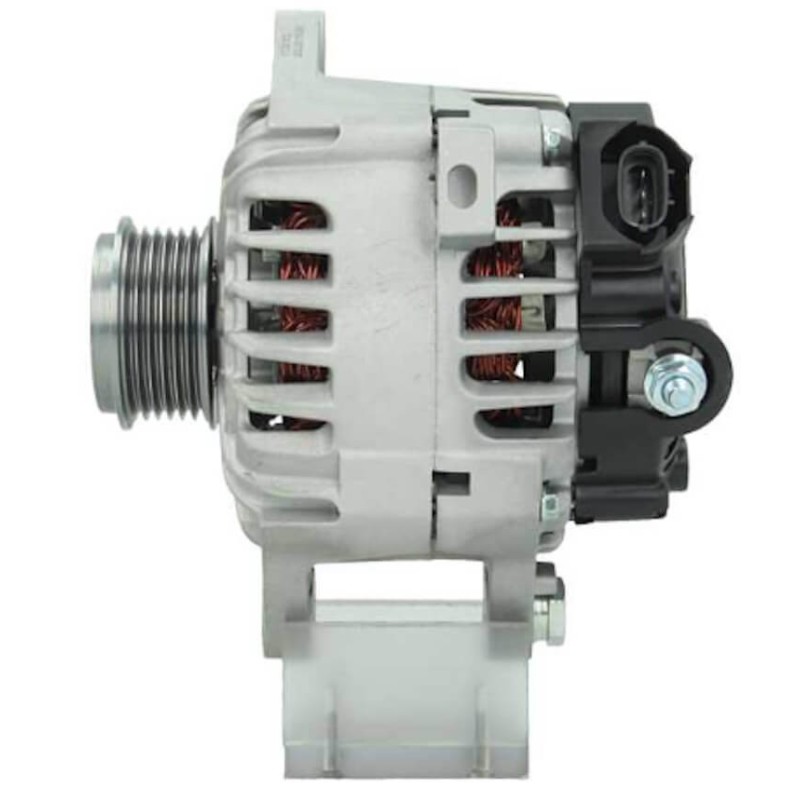

BRAND NEW 110-amp alternator, 6-groove pulley for KIA PRO CEED / VENGA / RIO III

and HYUNDAI i20 / i30 / ix20 / VELOSTER

Multiple mounting configurations may exist for these vehicle models; please verify the correct match using your original part number before purchasing.

Replaces:

0986083640
255526110
2610128
2616559
286765
373002B750
373002B760
931311
A0002610128
A0002616559
DRA1311
LRA03704
TRA283

NO CORE EXCHANGE NEEDED

Read more
€149.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Reference

0986083550 BOSCH
J5110322 HERTH+BUSS
UD21170A AS-PL
ALT14592 WOODAUTO
VAL443252 WOODAUTO
37300-2B760 HYUNDAI / KIA
AEK3704 AUTOELECTRO
255.526.110.360 WAI
255.526.110.000 WAI
255.526.110.415 WAI
CAL32174GS CASCO
4288 CEVAM
57718 EAI
28-6765 ELSTOCK
116226 CARGO
8EL011713-821 HELLA
LRA03704 LUCAS
LRA3704 LUCAS
89215789 POWERMAX
20193471OE REAL
2032174.1 SANDO
443252 VALEO
20652N WAI
ALT2311CP ROLLCO
A0002616559 MANDO
ALA4052 KRAUF
ALV4052 KRAUF
2610128 VALEO
2616559 VALEO
2616599 VALEO
37300-2B750 HYUNDAI / KIA
ALTE814 3EFFE
PRAE814 3EFFE
554284RI KUHNER
0986083640 BOSCH
0986CR6344 BOSCH
AL4116X BOSCH
CAL32173GS CASCO
DRA1144 DELCO
209004 ERA
CA2187IR HC PARTS
J5110550 HERTH+BUSS
DRA1311 DELCO
DRA1311N DELCO
2032173.1 SANDO
A0002610128 VALEO
ALT00278 ELECTROLOG
A12VA0824A2 SIDAT
55151195 MEAT & DORIA
37300-2B600 HYUNDAI / KIA
37300-2B610 HYUNDAI / KIA
STX110189R STARDAX
STX110189 STARDAX
F032116226 CARGO
A131.977 WAI
A147.606 WAI
A149.234 WAI
AM-3278 AUTO MAGNETO
A3602S AS-PL

Features

Electrical Information
Voltage 14
Amp 110

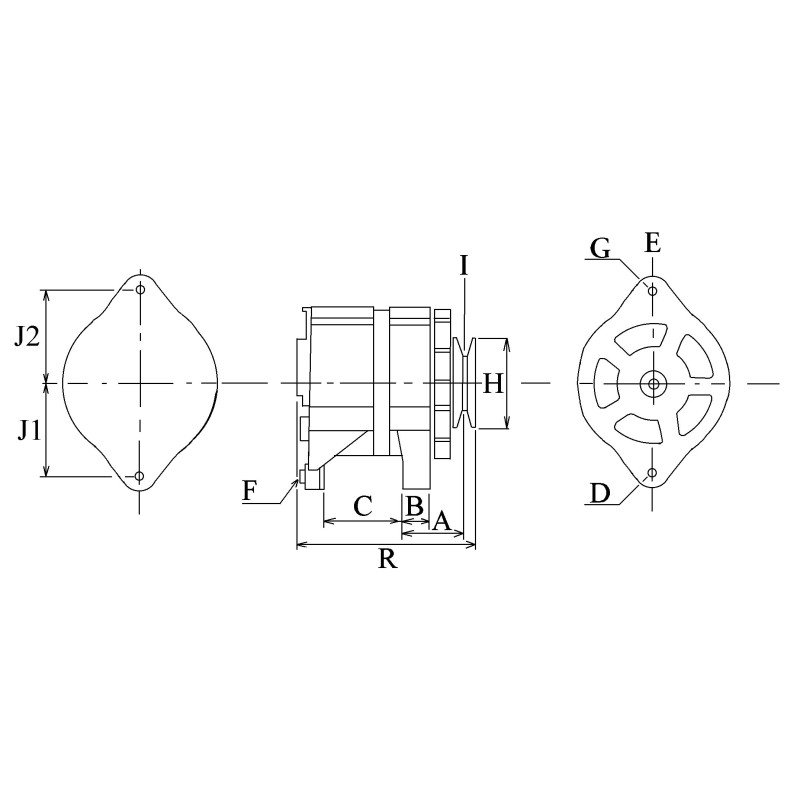

Physical Information
D Bracket hole 10.50
G Belt. adj. bracket hole M8
B Width/holder arm 15.00
E Belt. adj. brackethole pos. 3
C Mount. bracket dist 50.00
H Pulley dia. 58.00
A Pulley dist. 33.50
i Grooves/pulley 6
j Radius 85.00
j Radius 2 86.00
k Position B + M8
n Rotation CW

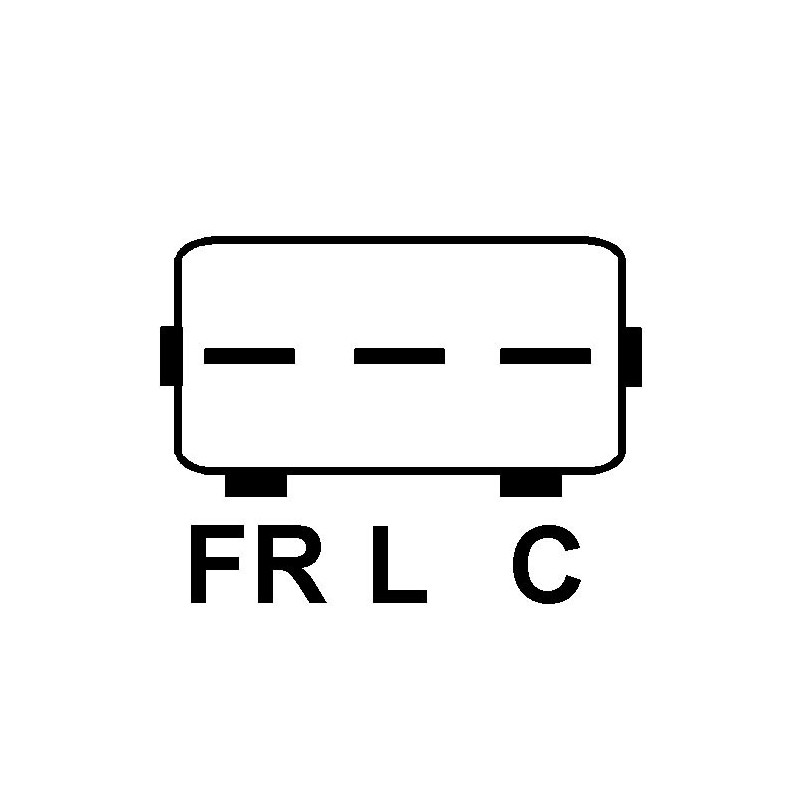

o Plug no. 1 PL176
R Total length mm 185.00
Replacing
2610128 VALEO
2616559 VALEO
37300-2B750 KIA
37300-2B760 KIA
A0002610128 VALEO
A0002616559 VALEO

generic brand

the VALEO alternator can be found under the part number w116226

Mounted on :

KIA

HYUNDAI

NO CORE EXCHANGE NEEDED

Mounting on

Brand Model Typ Year
HYUNDAI i30 Coupe 1.4 G4FA 05.2013 - 12.2014
HYUNDAI ix20 (JC) 1.4 G4FA 11.2010 - 07.2019
HYUNDAI i30 (GD) 1.4 G4FA 12.2011 - 12.2015
HYUNDAI i30 Estate (GD) 1.4 G4FA 06.2012 - 12.2015
HYUNDAI i20 I (PB, PBT) 1.4 G4FA 09.2008 - 12.2015
HYUNDAI ix20 (JC) 1.4 G4FA 11.2010 - 07.2019
HYUNDAI i30 Estate (FD) 1.4 G4FA 10.2007 - 06.2012
HYUNDAI i30 Estate (GD) 1.4 G4LC 01.2014 - 05.2017
HYUNDAI i30 (FD) 1.4 LPG G4FA 01.2009 - 11.2011
HYUNDAI ix20 (JC) 1.4 LPG G4FA 11.2010 - 07.2019
HYUNDAI i30 (GD) 1.4 LPG G4FA 01.2013 - 12.2014
HYUNDAI i30 (GD) 1.6 G4FC 01/06/14
HYUNDAI i30 Estate (GD) 1.6 G4FC 01/06/12
HYUNDAI i30 (GD) 1.6 G4FC 01.2012 - 12.2016
HYUNDAI i30 (GD) 1.6 G4FC 12.2011 - 12.2015
HYUNDAI ix20 (JC) 1.6 G4FC 11.2010 - 07.2019
HYUNDAI ix35 (LM, EL, ELH) 1.6 G4FD 11.2010 - 12.2015
HYUNDAI i30 Estate (GD) 1.6 G4FD 06.2012 - 12.2015
HYUNDAI i30 (GD) 1.6 G4FG 01.2012 - 12.2016
HYUNDAI i30 Estate (GD) 1.6 G4FG 01/06/12
HYUNDAI VELOSTER (FS) 1.6 GDI G4FD 03.2011 - 12.2017
HYUNDAI i40 I (VF) 1.6 GDI G4FD 03.2012 - 05.2019
HYUNDAI i30 Estate (GD) 1.6 GDI G4FD 01/06/12
HYUNDAI i40 I CW (VF) 1.6 GDI G4FD 07.2011 - 05.2019
HYUNDAI i30 Kombi Van (GDE, GD) 1.6 GDI G4FD 01/05/15
HYUNDAI i30 (GD) 1.6 GDI G4FD 12.2011 - 12.2016
HYUNDAI i30 Coupe 1.6 GDI G4FD 01/05/13
HYUNDAI i30 Hatchback Van (GDE) 1.6 GDI G4FD 01/05/15
HYUNDAI ix20 (JC) 1.6 LPG G4FC 11.2010 - 07.2019
HYUNDAI i30 Coupe 1.6 MPI G4FC 01/05/13
HYUNDAI VELOSTER (FS) 1.6 MPI G4FC 04.2011 - 12.2017
HYUNDAI VELOSTER (FS) 1.6 MPI G4FG 04.2011 - 12.2017
HYUNDAI VELOSTER (FS) 1.6 T-GDI G4FJ 10.2012 - 12.2017
HYUNDAI ix35 Van GDi G4FD 05.2015 - 12.2015
KIA CEED SW (ED) 1.4 G4FA 10.2010 - 12.2012
KIA PRO CEED (ED) 1.4 G4FA 02.2008 - 09.2012
KIA CEED Hatchback (ED) 1.4 G4FA 12.2006 - 12.2012
KIA PRO CEED (ED) 1.4 CVVT G4FA 06.2010 - 09.2012
KIA CEED Combi Van (JD) 1.4 CVVT G4FA 04.2015 - 07.2018
KIA VENGA (YN) 1.4 CVVT G4FA 02.2010 - 03.2019
KIA CEED Hatchback (ED) 1.4 CVVT G4FA 08.2009 - 12.2012
KIA RIO III (UB) 1.4 CVVT G4FA 09.2011 - 12.2017
KIA CEED (JD) 1.4 CVVT G4FA 05.2012 - 07.2018
KIA CEED Sportswagon (JD) 1.4 CVVT G4FA 09.2012 - 07.2015
KIA RIO III Hatchback Van (UB) 1.4 CVVT G4FA 01/04/15
KIA RIO III (UB) 1.4 CVVT G4FA 09.2011 - 12.2017
KIA RIO III Saloon (UB) 1.4 CVVT G4FA 10.2011 - 12.2017
KIA PRO CEED (JD) 1.4 CVVT G4FA 03.2013 - 07.2015
KIA PRO CEED (JD) 1.4 CVVT G4FA 07.2013 - 07.2018
KIA CEED (JD) 1.4 CVVT G4FA 05.2012 - 07.2018
KIA CEED Sportswagon (JD) 1.4 LPG G4FA 01.2013 - 07.2018
KIA CEED (JD) 1.4 LPG G4FA 05.2012 - 07.2018
KIA VENGA (YN) 1.4 LPG G4FA 02.2010 - 03.2019
KIA PRO CEED (JD) 1.4 MPI G4LC 07.2013 - 07.2018
KIA CEED SW (ED) 1.6 G4FC 09.2007 - 11.2012
KIA CEED Hatchback (ED) 1.6 G4FC 09.2007 - 12.2012
KIA RIO II Saloon (JB) 1.6 16V G4ED 03.2005 - 12.2011
KIA RIO III Saloon (UB) 1.6 CVVT G4FC 06.2012 - 12.2017
KIA RIO III (UB) 1.6 CVVT G4FC 06.2012 - 12.2017
KIA CEED (JD) 1.6 CVVT G4FC 01.2013 - 07.2018
KIA CEED Sportswagon (JD) 1.6 CVVT G4FC 11.2014 - 07.2018
KIA CEED Sportswagon (JD) 1.6 CVVT G4FC 11.2014 - 07.2018
KIA CEED Hatchback (ED) 1.6 CVVT G4FC 10.2010 - 12.2012
KIA CEED (JD) 1.6 CVVT G4FC 11.2014 - 07.2018
KIA VENGA (YN) 1.6 CVVT G4FC 02.2010 - 03.2019
KIA PRO CEED (ED) 1.6 CVVT G4FC 10.2010 - 02.2013
KIA SOUL II (PS) 1.6 CVVT G4FG 02.2014 - 12.2018
KIA SOUL II (PS) 1.6 CVVT G4FG 07.2016 - 12.2018
KIA SOUL II (PS) 1.6 GDI G4FD 02.2014 - 12.2018
KIA SPORTAGE III (SL) 1.6 GDI G4FD 06.2010 - 12.2015
KIA CARENS IV 1.6 GDi G4FD 03.2013 - 08.2016
KIA CEED Sportswagon (JD) 1.6 GDI G4FD 09.2012 - 07.2018
KIA SOUL I (AM) 1.6 GDI G4FD 06.2011 - 12.2014
KIA PRO CEED (JD) 1.6 GDI G4FD 03.2013 - 07.2018
KIA CEED (JD) 1.6 GDI G4FD 05.2012 - 07.2018
KIA CEED Combi Van (JD) 1.6 GDi G4FD 04.2015 - 07.2018
KIA CEED (JD) 1.6 GT G4FJ 06.2013 - 07.2018
KIA PRO CEED (JD) 1.6 GT G4FJ 06.2013 - 07.2018
