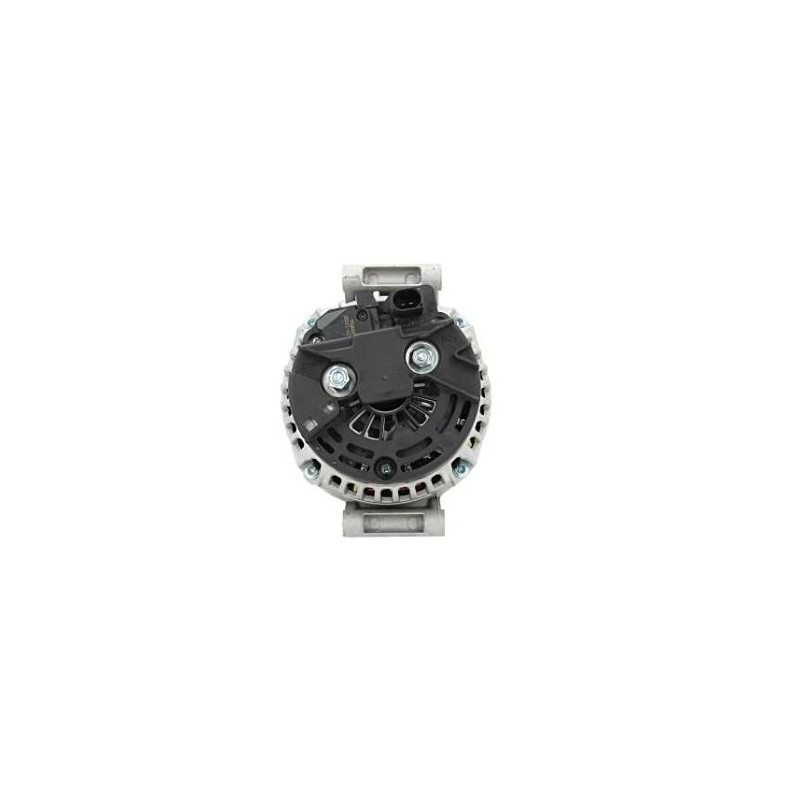

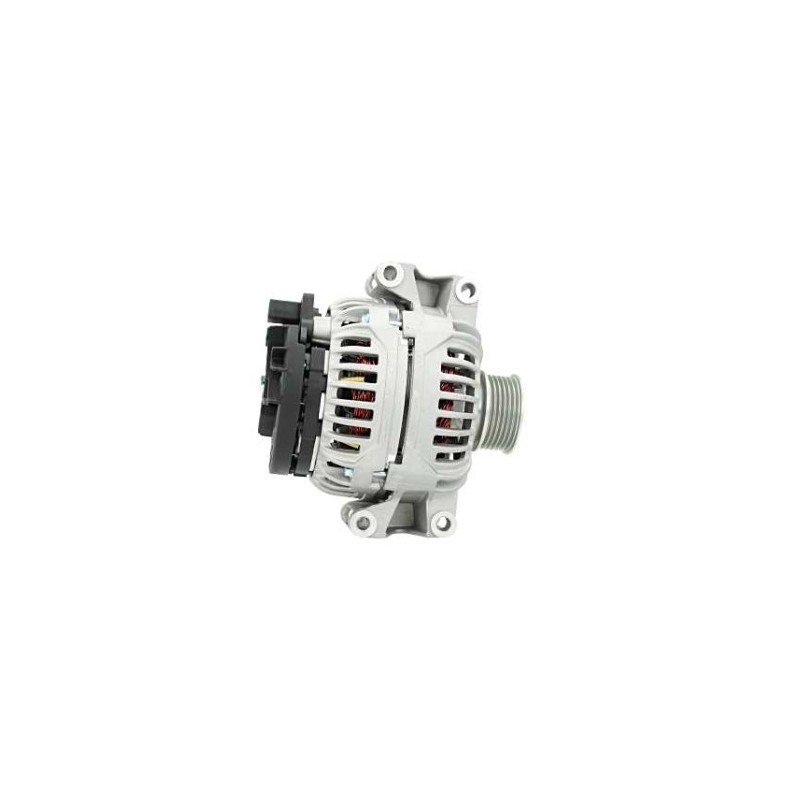

Alternator NEW replacing
AUDI / VOLKSWAGEN 06B-903-015AB, 06B-903-016AA, 06B-903-016AB, 06B-903-016ABX, 06B-903-016AC, 06B-903-016AE, 06B-903-016AF, 06B-903-016AX, 06B-903-016EX, 06B-903-016P, 06B-903-016PX, 06B-903-016Q, 06B-903-016QX, 06B-903-016S, 06B-903-019E, 06B-903-019EX, 06B-903-019G, 06B-903-019GX, 06D-903-016, 06D-903-016A
NO CORE EXCHANGE NEEDED
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 120 | |
Specs Physique | ||
|---|---|---|
| A | Pulley dist. | 29.00 |
| B | Width/holder arm | 70.00 |
| C | Mount. bracket dist | 55.80 |
| D | Bracket hole | 9.00 |
| D | Trou from fixation support 2 | 9.00 |
| G | Belt. adj. bracket hole | 9.00 |
| G | Belt. adj. bracket hole 2 2 | 9.00 |
| H | Pulley dia. | 56.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 81.50 |
| J | Radius 2 | 81.50 |
| K | Position B + | M8 |
| K | B+ position en min. | 45 |
| N | Rotation | Cr |
| O | Plug n° 1 | PL61 |
| R | Total length mm | 200.00 |
| Un fil from branchement: (auto-excitation) | Non | |
Replacing | |
|---|---|
| 0124515053 | BOSCH |
| 0124515059 | BOSCH |
| 06B903016AE | VOLKSWAGEN |
| 06B903016S | VOLKSWAGEN |
| 2542509 | VALEO |
| 2542509C | VALEO |
| 2542738 | VALEO |
| 2542738B | VALEO |
| SG12B047 | VALEO |
| SG12B075 | VALEO |
generic brand
Mounted on
AUDI / SEAT
| Brand | Model | Tipo | Year | Remarks |
|---|---|---|---|---|
| AUDI | A4 1.6 | [ALZ] | 11.2000- | |
| AUDI | A4 1.8 Turbo | [AMB] | 07.2001- | |
| AUDI | A4 1.8 Turbo | [AVJ] | 11.2000-07.2002 | |
| AUDI | A4 1.8 Turbo | [BEX] | 11.2002-12.2004 | |
| AUDI | A4 1.8 Turbo | [BFB] | 07.2002- | AC |
| AUDI | A4 1.8 Turbo | [BKB] | 07.2002- | |
| AUDI | A4 1.8 Turbo Quattro | [AMB] | 07.2001- | |
| AUDI | A4 1.8 Turbo Quattro | [AVJ] | 11.2000-06.2002 | |
| AUDI | A4 1.8 Turbo Quattro | [BEX] | 11.2002-12.2004 | |
| AUDI | A4 1.8 Turbo Quattro | [BFB] | 07.2002- | |
| AUDI | A4 2.0 | [ALT] | 11.2000- | |
| AUDI | A4 2.0 FSi | [AWA] | 11.2001- | |
| AUDI | A4 2.0 TFSi | [BWE] | 10.2005- | |
| AUDI | A6 2.0 | [ALT] | 08.2001- |
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
