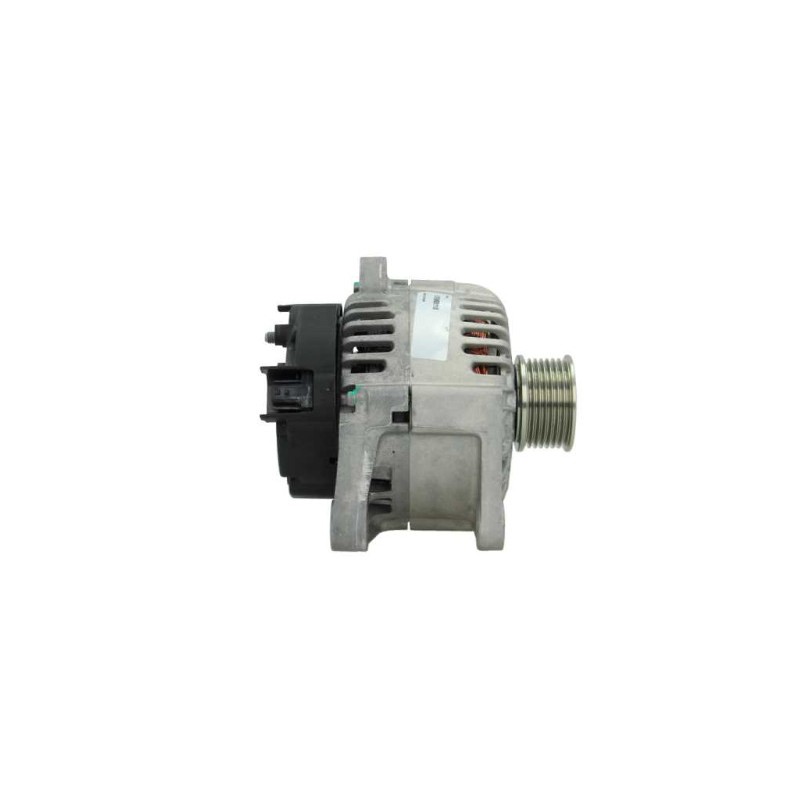

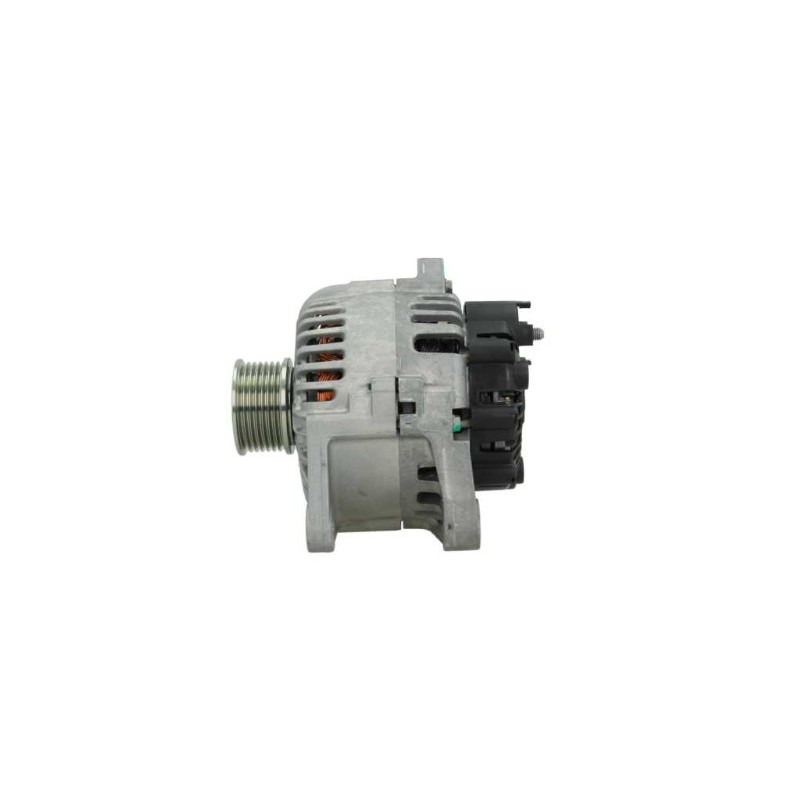

Alternator replacing VALEO 2543590 / 2543590A / TG11C056 / Tg11C068
Alternator NEW replacing VALEO 2543469 / 2543469A / 2543590 / 2543590A / TG11C056 / Tg11C068 / 439596 / 440092
= RENAULT 8200623231 / 8200718724 / 8200538817
DRA0698 / LRA03030
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 110 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 14.00 |
| E | Belt. adj. brackethole pos. | 15 |
| C | Mount. bracket dist | 60.00 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 33.50 |
| i | Grooves/pulley | 7 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

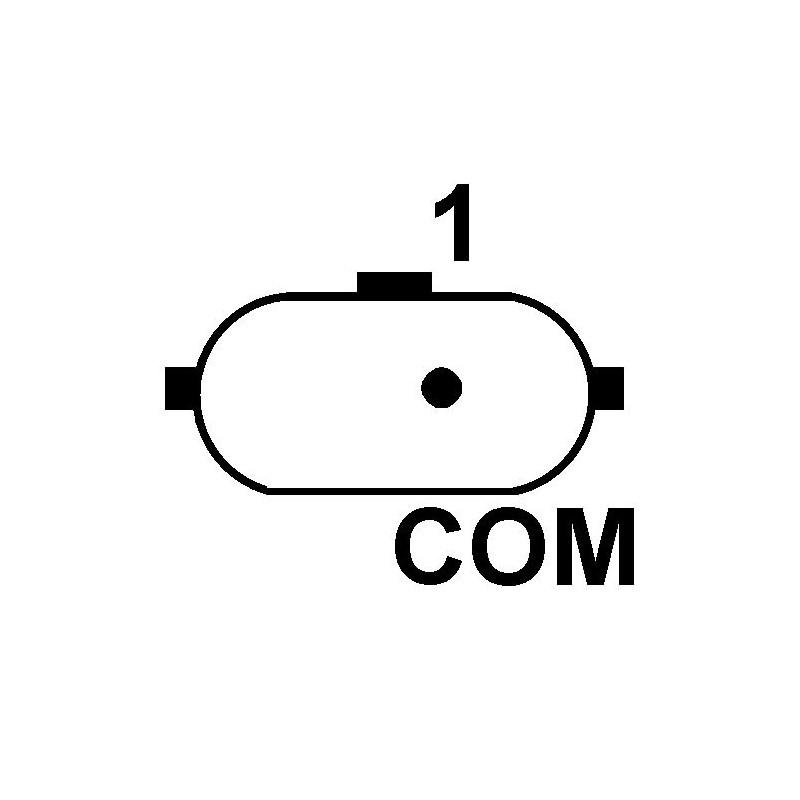

| o | Plug no. 1 | PL131 |
| R | Total length mm | 185.00 |
generic brand
replacing :
Replacing | |
|---|---|
| 2543469 | VALEO |
| 2543469A | VALEO |
| 2543590 | VALEO |
| 2543590A | VALEO |
| 8200623231 | RENAULT |
| 8200718724 | RENAULT |
| ca2054ir | HC-PARTS |
| TG11C056 | VALEO |
| tg11c068 | VALEO |
| 2543469 |
| 2543469A |
| 2543590 |
| 285642 |
| 439596 |
| 440092 |
| 543469 |
| 543590 |
| 575908110 |
| 7711368683 |
| 8200538817 |
| 8200623231 |
| 8200718724 |
| 930698 |
| CA2054IR |
| DRA0698 |
| LRA03030 |
| TG11C052 |
| TG11C056 |
| TG11C068 |
fits:
| RENAULT | Clio | 1.2 16V | 06/05 | / |
| RENAULT | Modus | 1.2 16V | 05/07 | / |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
