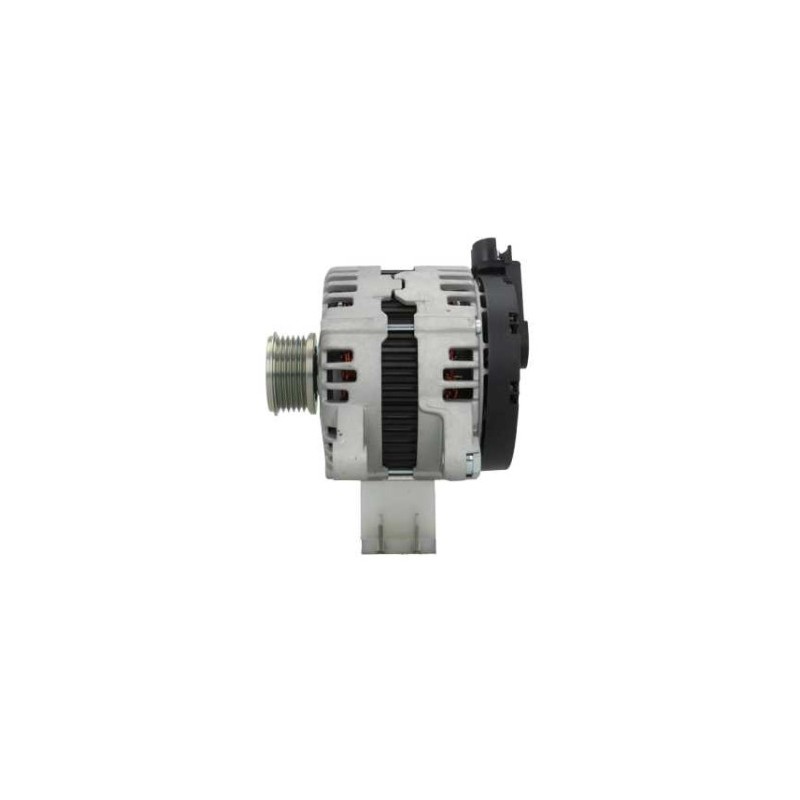

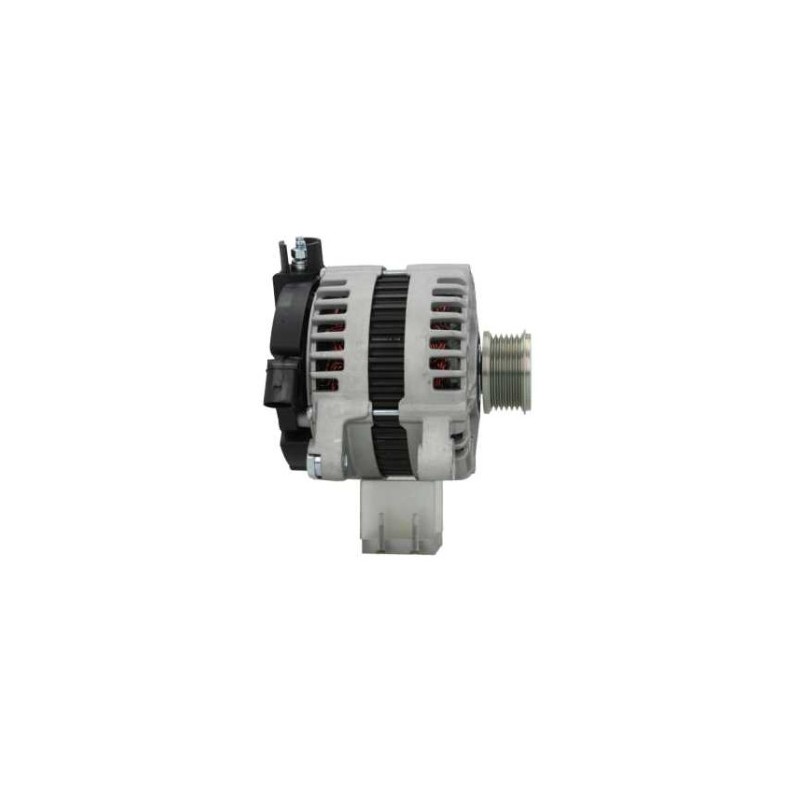

Alternator replacing BOSCH 0121715024 / 0121715124 / VOLVO 36000223 / FORD 6G9N10300YC
Alternator NEW replacing BOSCH 0121715024 / 0121715124 / 0986081390
DRA0476 / LR001200 / LRA03455
VOLVO 36000223 / 8697585
FORD 6G9N10300YC
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 180 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | 10.80 |
| B | Width/holder arm | 21.00 |
| E | Belt. adj. brackethole pos. | 47 |
| C | Mount. bracket dist | 47.00 |
| H | Pulley dia. | 54.00 |
| A | Pulley dist. | 43.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

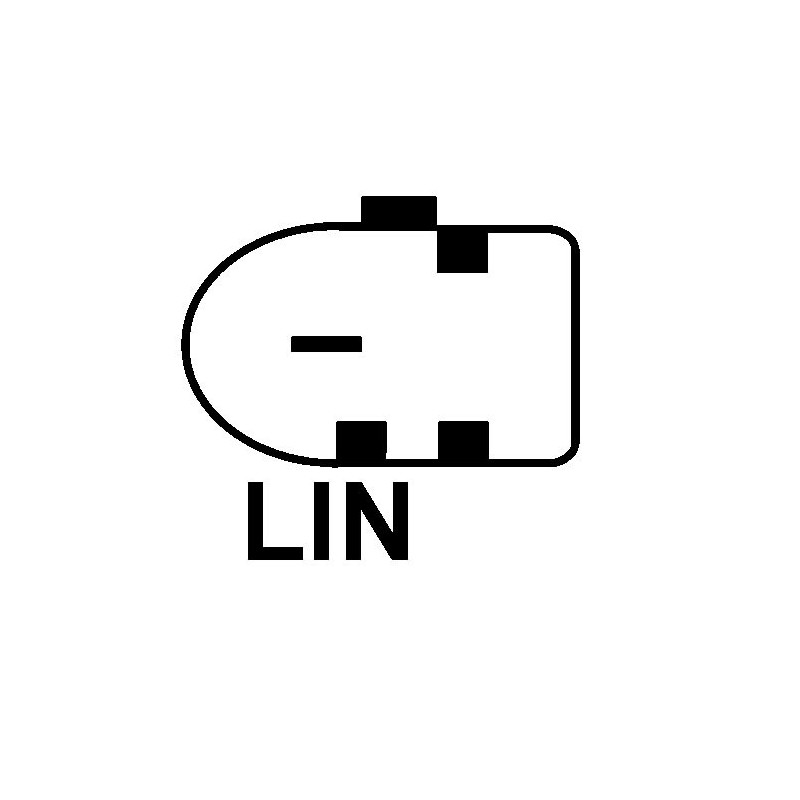

| o | Plug no. 1 | PL174 |
| R | Total length mm | 185.00 |
Replacing | |
|---|---|
| 0121715024 | BOSCH |
| 0121715124 | BOSCH |
| 36000223 | VOLVO |
| 6g9n10300yc | FORD |
| 8697585 | VOLVO |
| lr001200 | ROVER GROUP |
| 0121715024 |
| 0121715124 |
| 0986081390 |
| 2205634 |
| 286565 |
| 36000223 |
| 455527180 |
| 6G9N10300YC |
| 8697585 |
| 930476 |
| DRA0476 |
| LR001200 |
| LRA03455 |
generic brand
fits:
| Model série | Tipo of Gas | Start build | End built | Engine Tipo | KW | Horse Power | Chassi type | Engine in cm3 | Cylindres | |
|---|---|---|---|---|---|---|---|---|---|---|
| Freelanfromr | 2.2 | Diesel | 2010 08 | 224DT | Diesel | 110 | 150 | TD4 | 2179 | |
| Freelanfromr | 2.2 | Diesel | 2010 08 | DW12BTED4 | Diesel | 110 | 150 | TD4 | 2179 | |
| Freelanfromr | 2.2 | Diesel | 2006 10 | 224DT | Diesel | 110 | 150 | TD4 4x4 | 2179 | |
| Freelanfromr | 2.2 | Diesel | 2010 08 | 224DT | Diesel | 140 | 190 | SD4 | 2179 | |
| Freelanfromr | 2.2 | Diesel | 2006 02 | 224DT | Diesel | 118 | 160 | 2179 | ||
| Freelanfromr | 2.2 | Diesel | 2007 01 | 224DT | TD4 | 112 | 152 | 2179 | ||
| Freelanfromr | 2.2 | Diesel | 2006 10 | 224DT | TDI | 118 | 160 | 4x4 | 2179 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
