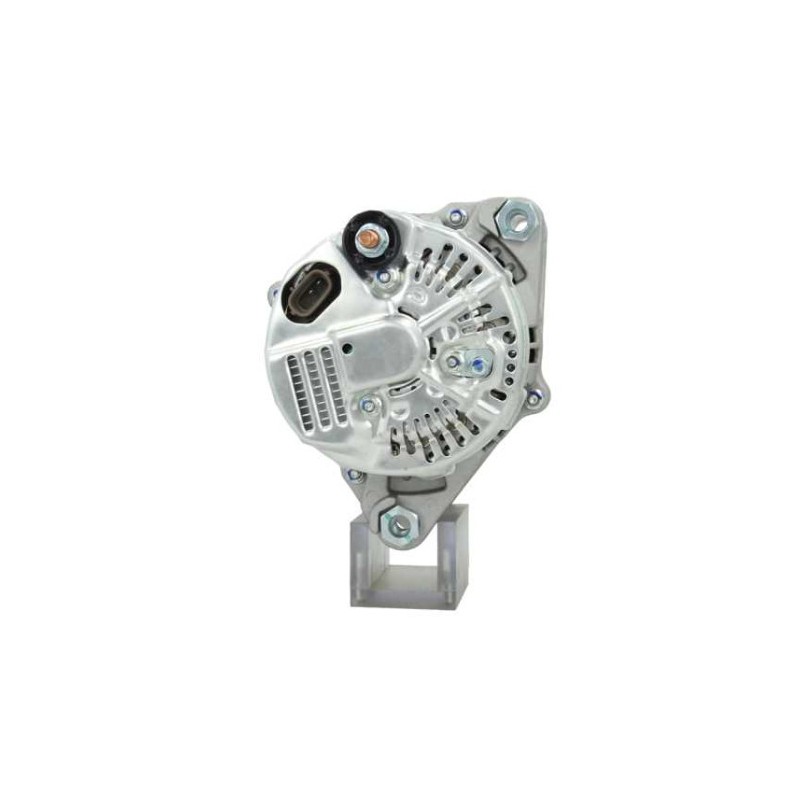

Alternator replacing 37300-3c120 / 02131-9153 / TG12C057
Alternator NEW replacing 37300-3C120, 37300-3C125, 37300-3C150, 37300-3C170, 37300-3C250, 02131-9153
TG12C057 / LRA03450 / N5110525 / DRA1143
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
generic brand
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 130 | |

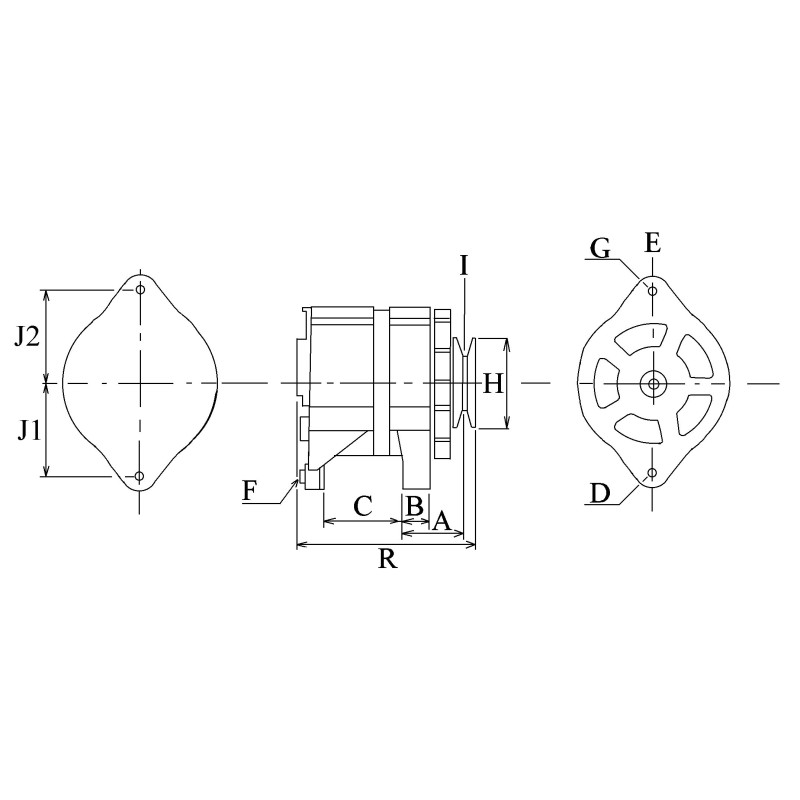

Physical Information | ||
|---|---|---|
| D | Bracket hole | 11.00 |
| G | Belt. adj. bracket hole | 11.00 |
| B | Width/holder arm | 20.00 |
| E | Belt. adj. brackethole pos. | 53 |
| C | Mount. bracket dist | 43.00 |
| H | Pulley dia. | 53.28 |
| A | Pulley dist. | 42.50 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 84.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

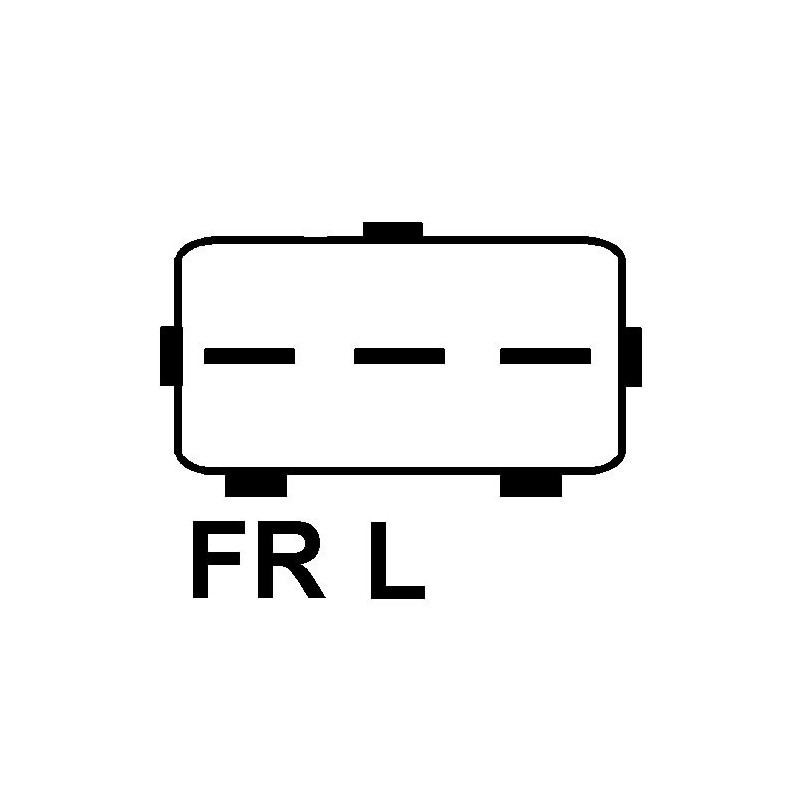

| o | Plug no. 1 | PL133 |
| R | Total length mm | 188.00 |
Replacing | |
|---|---|
| 02131-9153 | POONG SUNG |
| 37300-3c120 | KIA |
| 021319153 |
| 11191 |
| 11191N |
| 255512130 |
| 2905271 |
| 373003C100 |
| 373003C120 |
| 373003C170 |
| 90331000 |
| ALT6415sa |
| DRA1143 |
| KTR511024260 |
| LRA03450 |
| N5110525 |
| TG12C057 |
| TRA164 |
102211-3102, 102211-324
Mounted on :
HYUNDAI / KIA
| Santa Fé | Santa Fé | 2.7 | Unleaded | 2004 08 | - | G6EA | 129 | 175 | 2656 | 6 | CM | |||
| Santa Fé | Santa Fé | 2.7 | Unleaded | 2006 03 | - | G6EA | V6 | 139 | 189 | SUV | GLS | 2656 | 6 | |
| Santa Fé | Santa Fé | 2.7 | Unleaded | 2006 03 | - | G6BA | 125 | 170 | SUV | 4x4 | 2657 | 6 | CM | |
| Santa Fé | Santa Fé | 2.7 | Unleaded | 2006 03 | - | G6BA | 125 | 170 | SUV | 2657 | 6 | CM | ||
| Granfromur | Granfromur | 3.3 | Unleaded | 2010 11 | - | G6DB | 191 | 260 | 3342 | 6 | TG | |||
| Granfromur | Granfromur | 3.3 | Unleaded | 2005 04 | - | G6DB | 173 | 235 | 3342 | 6 | ||||
| ix55 | ix55 | 3.8 | Unleaded | 2011 01 | - | G6DA | V6 | 194 | 264 | AWD | 3778 | 6 | ||
| Sonata | Sonata | 3.3 | Unleaded | 2005 01 | - | G6DB | 171 | 233 | 3342 | 6 | ||||
| Sonata | Sonata | 3.3 | Unleaded | 2005 06 | - | G6DB | 173 | 235 | 3342 | 6 | ||||
| Sonata | Sonata | 3.3 | Unleaded | 2008 01 | - | G6DB | 184 | 250 | 3342 | 6 |
| Sorento | Sorento | 3.3 | Unleaded | 2006 12 | - | G6DB | V6 | 177 | 241 | SUV | 3297 | 6 | JC | |
| Sorento | Sorento | 3.3 | Unleaded | 2007 11 | - | G6DB | V6 | 182 | 248 | SUV | 3342 | 6 | JC |
