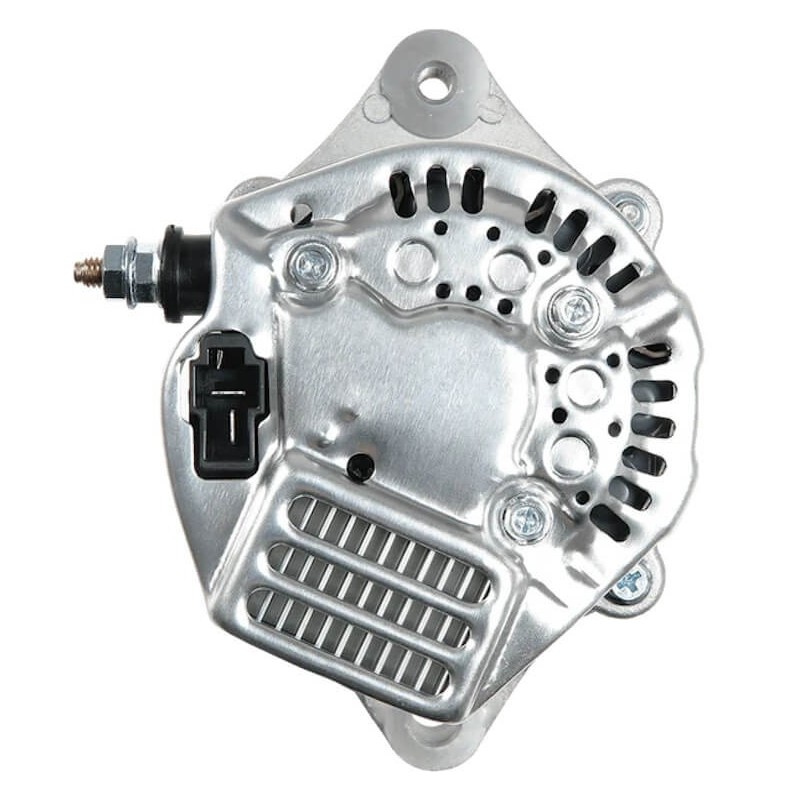

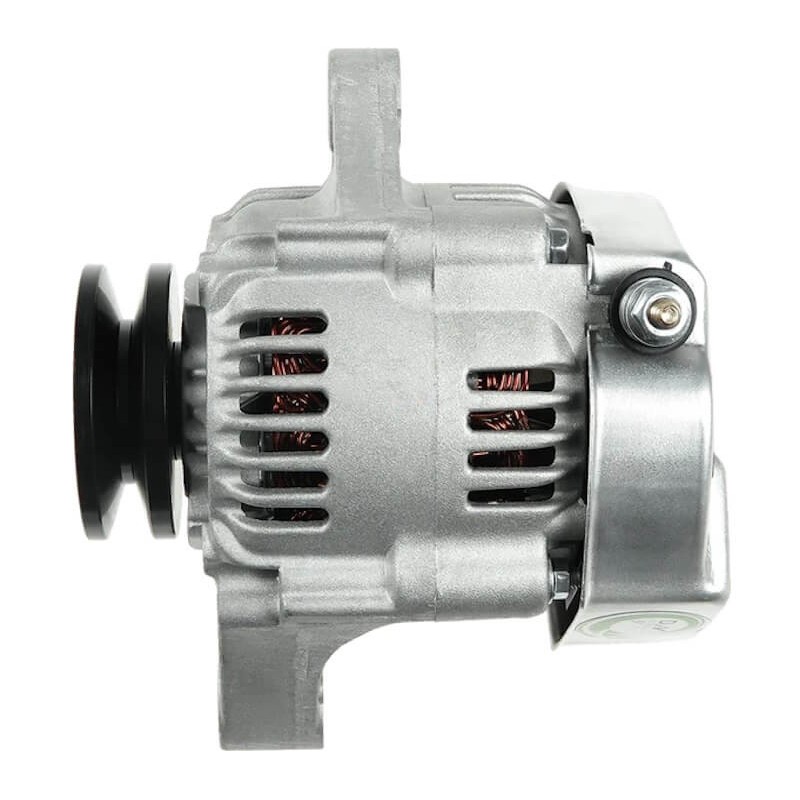

Alternator replacing DENSO 101211-2480 / 101211-1180 / 100211-4690

Information:

Voltage 14

Amp 40

D = Bracket hole 10.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 24.00

E = Belt. adj. brackethole pos. 60

H = Pulley dia. 63.00

A = Pulley dist. 43.00

Grooves/pulley 1

J = Radius 69.60

J = Radius 67.50

Position B + M6

Rotation Cr

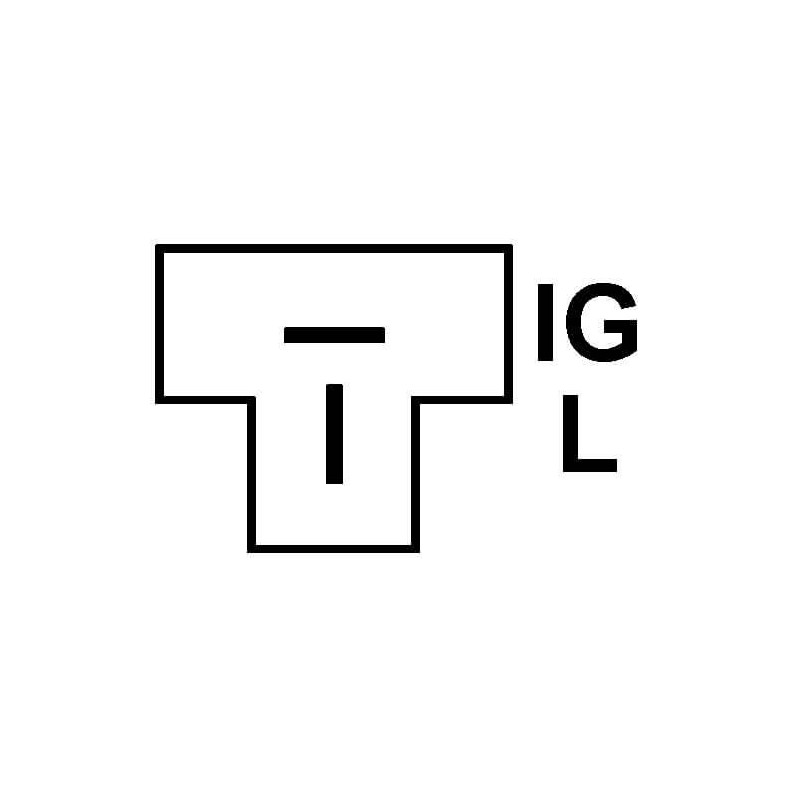

Plug no. 1 PL10

Fan If

Pulley Pulley

R = Total length mm 143.00

generic brand

= DENSO 100211-4680 / 100211-4670 / 100211-4660 / 100211-4640 / 100211-1610 / 100211-1632

 100211-1611 / 100211-1640 / 100211-1650 / 100211-1630

 100211-1680 / 100211-4440 / 100211-4450 / 100211-4490

100211-4560 /  100211-4528 / 101211-1040 / 101211-1180

101211-1181 / 101211-1230 / 101211-1320 / 101211-2480

= DAIHATSU 27060-87201-000 / 27060-87202-000

                   27060-87501-000 / 27060-87502-000

= KOMATSU 600-821-2350

= KUBOTA 15881-64200 / 15881-64201 / 15881-64202

               16231-64012 / 16705-64011 / 16705-64012

               16791-64011 / 3A011-74012

= PERKINS 185046220

fits:

Agco (2000-2006) , Aixam (2005-2015) , Aixam - Europe (2000-2012) , DAIHATSU - Europe (1985-2000) , DAIHATSU LCV - Europe (1986-1998) , FORD (1995-1999) , ISHIKAWAJIMA (1987-1992) , KUBOTA (1986-2007) , MASSEY FERGUSON (1993-1999) , NEW HOLLAND Industrial (1995-2008) , THERMO KING (1991-1991)

                                      TWO YEARS WARRANTY

                 NO CORE EXCHANGE NEEDED
