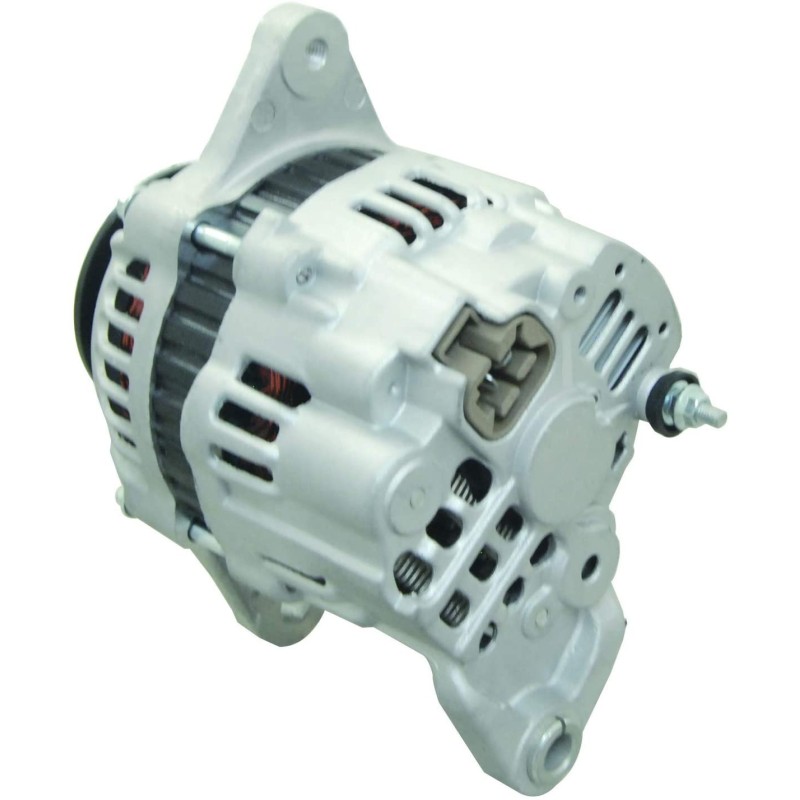

Alternator replacing MITSUBISHI A7TA1777 / Case 185046380

Reference: w114759

Condition: New product

4 Item Items

Alternator NEW for Case, NEW HOLLAND

= MITSUBISHI A007TA1777 / A7TA1777

= LUCAS LRA04034

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY

More info

More info

Electrical Information
Voltage		14
Amp		40

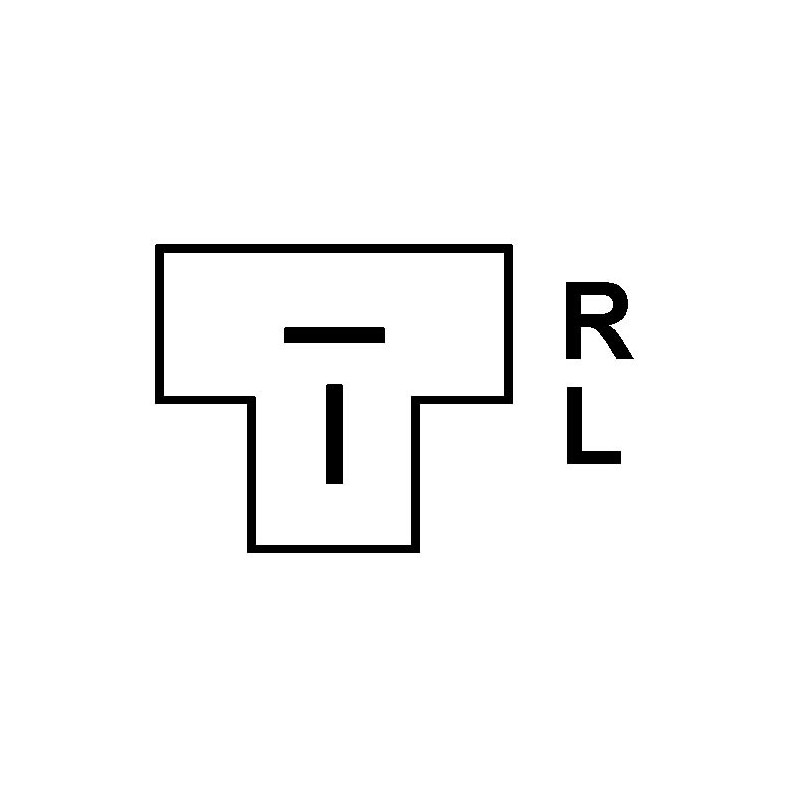

Plug type		W

Physical Information
D	Bracket hole	10.20
G	Belt. adj. bracket hole	M8
B	Width/holder arm	13.00
E	Belt. adj. brackethole pos.	60
C	Mount. bracket dist	82.50
H	Pulley dia.	75.00
A	Pulley dist.	41.00
i	Grooves/pulley	1
j	Radius	77.50
j	Radius 2	77.00
k	Position B +	M6
n	Rotation	Cr
o	Plug no. 1	PL09
Q	Tipo prise W	Plug
R	Total length mm	160.00

Replacing
185046380	CASE
a7ta1777	MITSUBISHI
185046380	ISHIKAWAJIMA
SBA185046380	ISHIKAWAJIMA

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY
