Alternator
Alternator replacing 10459050 / 10459038 / 10459051 / 10459133 / 10459217
€198.90

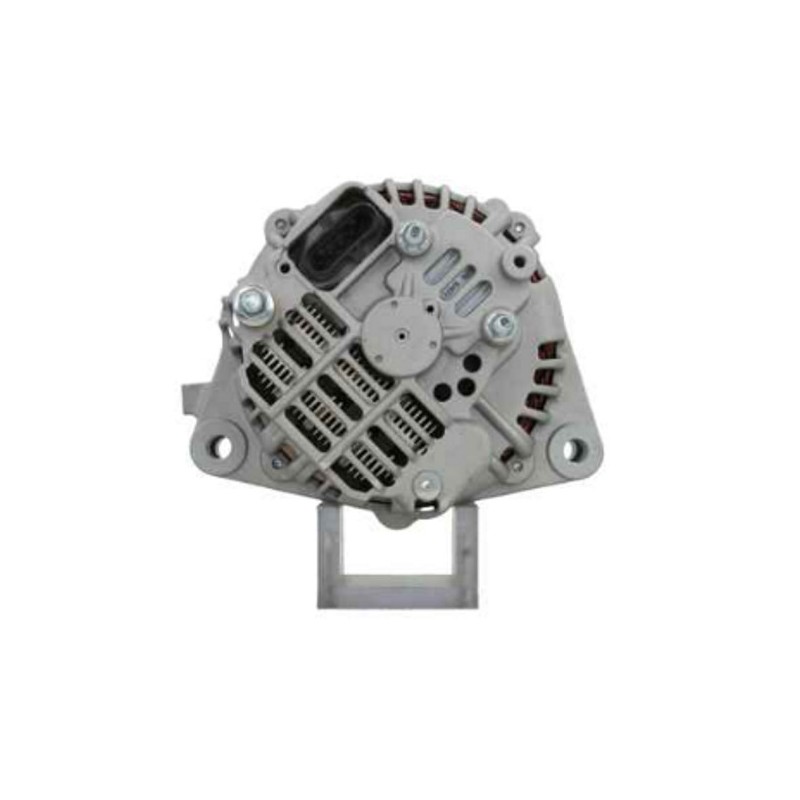

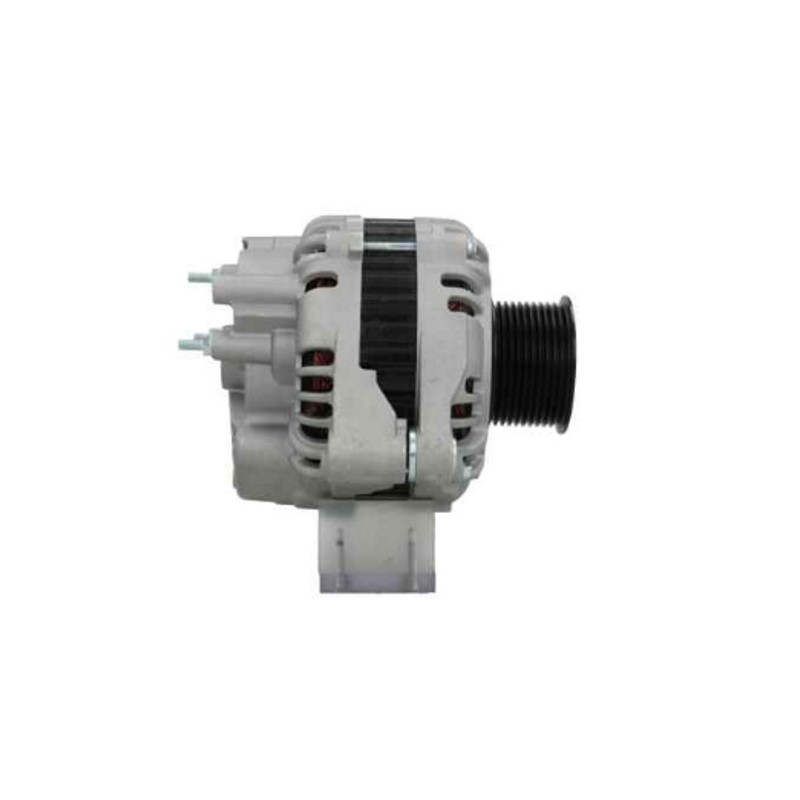

Alternator replacing MITSUBISHI A004TA8591 / A4TA8591 / RENAULT 5010589136
w114303
Alternator replacing MITSUBISHI A004TA8591 / A4TA8591 / RENAULT 5010589136
= KHD 01183126 / 01183126KZ / 1183126
= VOLVO 20898062 / 21289221 / 85000668 / 85003257
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.20 |
| G | Belt. adj. bracket hole | 10.20 |
| B | Width/holder arm | 56.00 |
| E | Belt. adj. brackethole pos. | 10 |
| H | Pulley dia. | 64.00 |
| A | Pulley dist. | 82.50 |
| i | Grooves/pulley | 10 |
| j | Radius | 89.00 |
| j | Radius 2 | 89.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL182 |
| R | Total length mm | 195.00 |
Electrical Information | ||
|---|---|---|
| Voltage | 28 | |
| Amp | 100 | |
Generic Brand
Replacing | |
|---|---|
| 01183126 | KHD |
| 01183126KZ | KHD |
| 1183126 | KHD |
| 20898062 | VOLVO |
| 21289221 | VOLVO |
| 5010589137 | RENAULT |
| 85000668 | VOLVO |
| 85003257 | VOLVO |
| A004TA8591 | MITSUBISHI |
| A4TA8591 | MITSUBISHI |
| 011033848 |
| 01183126KZ |
| 20224N |
| 21289221 |
| 486658 |
| 5010589136 |
| 663553 |
| 816506100 |
| 85009257 |
| A004TA8591 |
| A4TA8591 |
| A4TA8591AM |
| LRA03548 |
