Alternator replacing LUCAS 54022228 / 54022207 / 54022196 / 54022166
Alternator NEW for LAND ROVER, LDV
= BOSCH 9120144290 / 9120144289
= LUCAS LEA0043 / 54022401 / 54022274 / 54022265 / 54022264 / 54022246
54022228 / 54022207 / 54022196 / 54022166 / 54022145 / 24219
24198D / 24198b / 24198a / 24198 / 24169e / 24169a / 24169
WITHOUT PULLEY
More info
Information:
Rotation Cr
Amp 45
Voltage 14

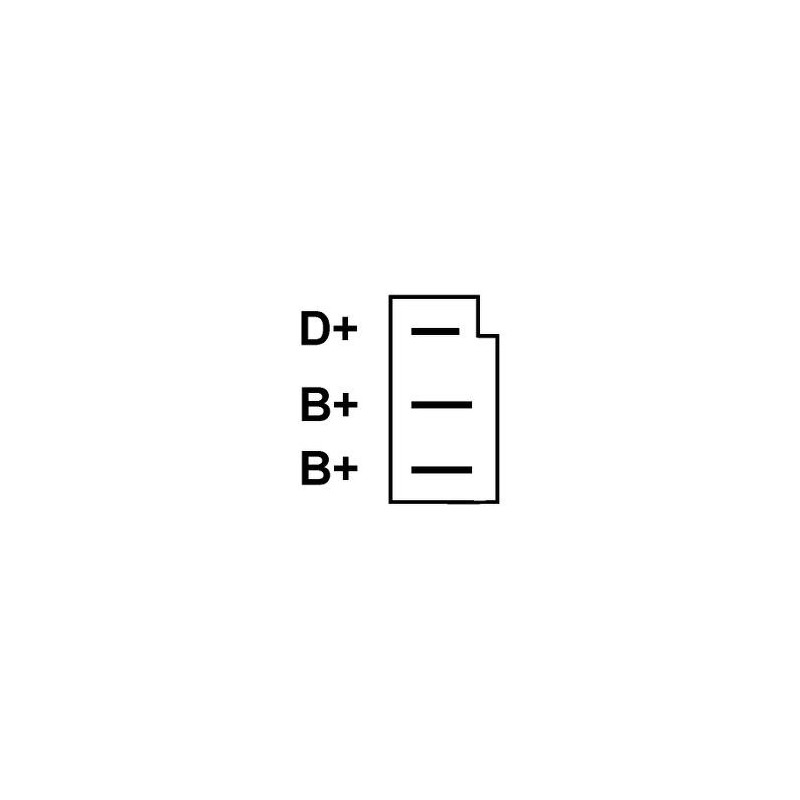

Plug type W
D = Bracket hole 8.00
G = Belt. adj. bracket hole M8
B = Width/holder arm 11.00
E = Belt. adj. brackethole pos. 10
C = Mount. bracket dist 81.00
J = Radius 85.40
J = Radius 86.50
Position B + M6
Plug no. 1 PL22
Fan Without
Pulley Without
R = Total length mm 166.00
generic brand
Replacing | |
|---|---|
| 24156A | LUCAS |
| 24157E | LUCAS |
| 24169 | LUCAS |
| 24169A | LUCAS |
| 24169E | LUCAS |
| 24198 | LUCAS |
| 24198A | LUCAS |
| 24198B | LUCAS |
| 24198D | LUCAS |
| 24200A | LUCAS |
| 24219 | LUCAS |
| 24262A | LUCAS |
| 54022145 | LUCAS |
| 54022166 | LUCAS |
| 54022196 | LUCAS |
| 54022207 | LUCAS |
| 54022228 | LUCAS |
| 54022246 | LUCAS |
| 54022264 | LUCAS |
| 54022265 | LUCAS |
| 54022274 | LUCAS |
| 54022401 | LUCAS |
| 9120144289 | BOSCH |
| 9120144290 | BOSCH |
| 9AR2699 | VALEO |
| CA629IR | HC-PARTS |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
