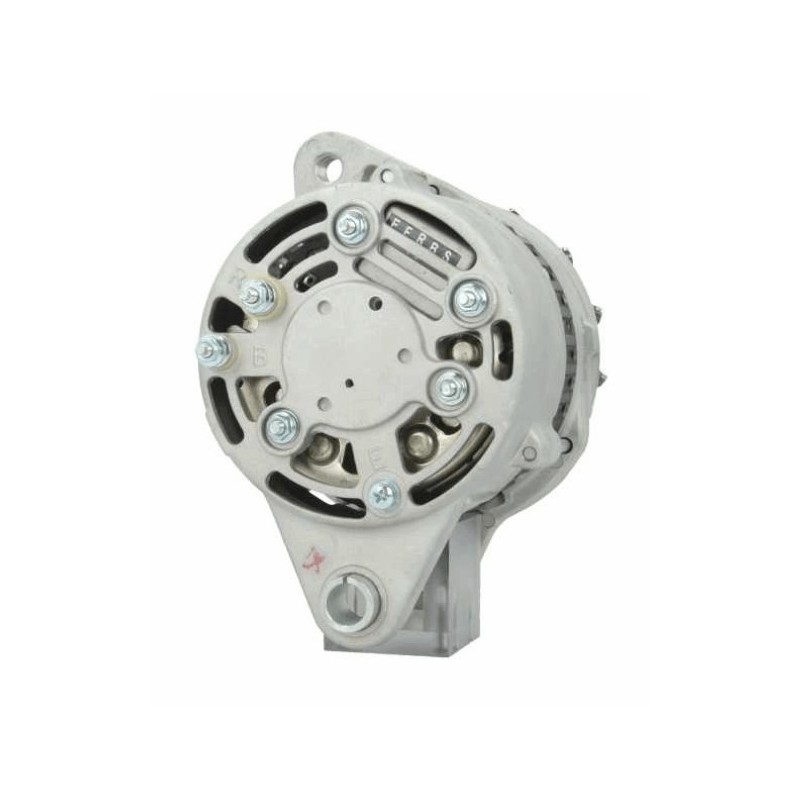

Alternator NEW replacing NIKKO 0-33000-6511 / 0-33000-5870 / 0-33000-5860

Information:

Voltage 28

Amp 25

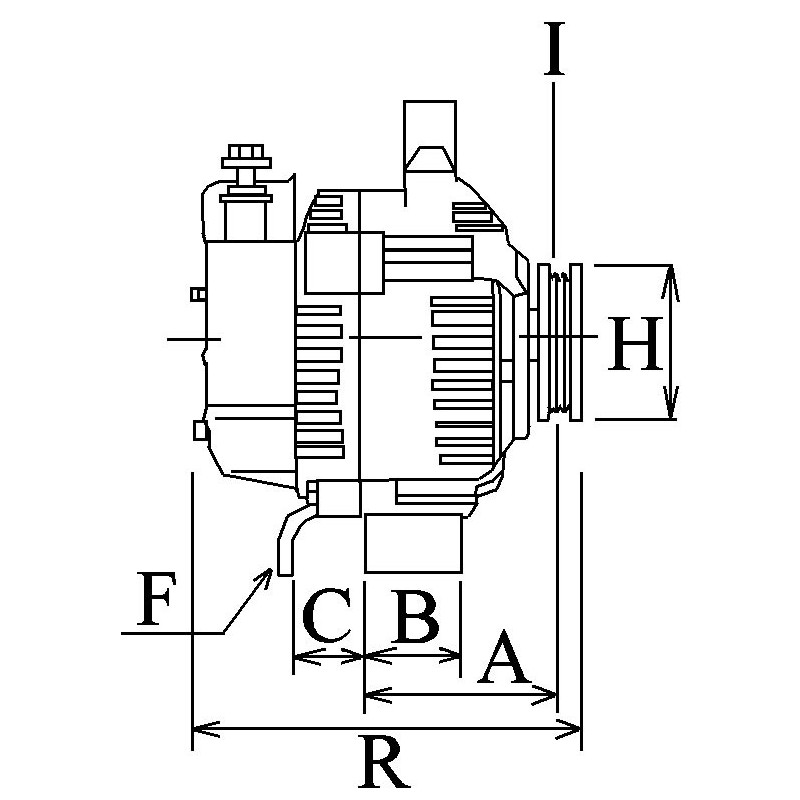

D = Bracket hole 14.10

G = Belt. adj. bracket hole M12

B = Width/holder arm 12.05

E = Belt. adj. brackethole pos. 5

C = Mount. bracket dist 73.50

H = Pulley dia. 101.00

A = Pulley dist. 62.55

Grooves/pulley 1

J = Radius 85.50

J = Radius 86.50

Position B + M5

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley  1 groove

R = Total length mm 210.00

generic brand

                      NO CORE EXCHANGE NEEDED

                                         TWO YEARS WARRANTY
