Alternator replacing LUCAS 47020058 / 47020056 / 47020054
Alternator NEW for Lister
Voltage 14 - Amp 80 - Insulated Ground - Terminal W
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.20 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 11.20 |
| E | Belt. adj. brackethole pos. | 10 |
| C | Mount. bracket dist | 83.00 |
| H | Pulley dia. | 82.20 |
| A | Pulley dist. | 45.50 |
| i | Grooves/pulley | 1 |
| j | Radius | 86.00 |
| j | Radius 2 | 86.00 |
| k | Position B + | M6 |
| n | Rotation | Cr |

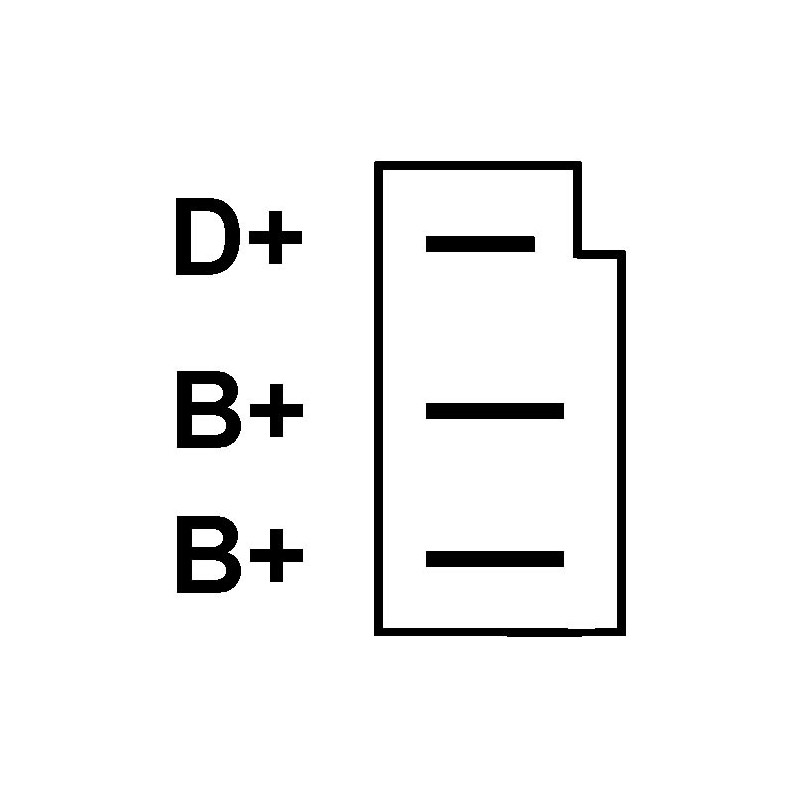

| o | Plug no. 1 | PL22 |
| Q | Tipo prise W | M5-6.3 |
| R | Total length mm | 169.10 |
Replacing | |
|---|---|
| LEA438 | LUCAS |
| 47020054 | LUCAS |
| 47020056 | LUCAS |
| LEA0438 | LUCAS |
| 47020058 | LUCAS |
| 47020062 | LUCAS |
| 47020063 | LUCAS |
| 47020069 | LUCAS |
| 510-823 | MOTOROLA |
| 66021588 | PRESTOLITE |
brand cargo Bosch
All Lister-Blackstone L3
All Lister-Blackstone L4
1982-On LUCAS Various Models
