w12130n

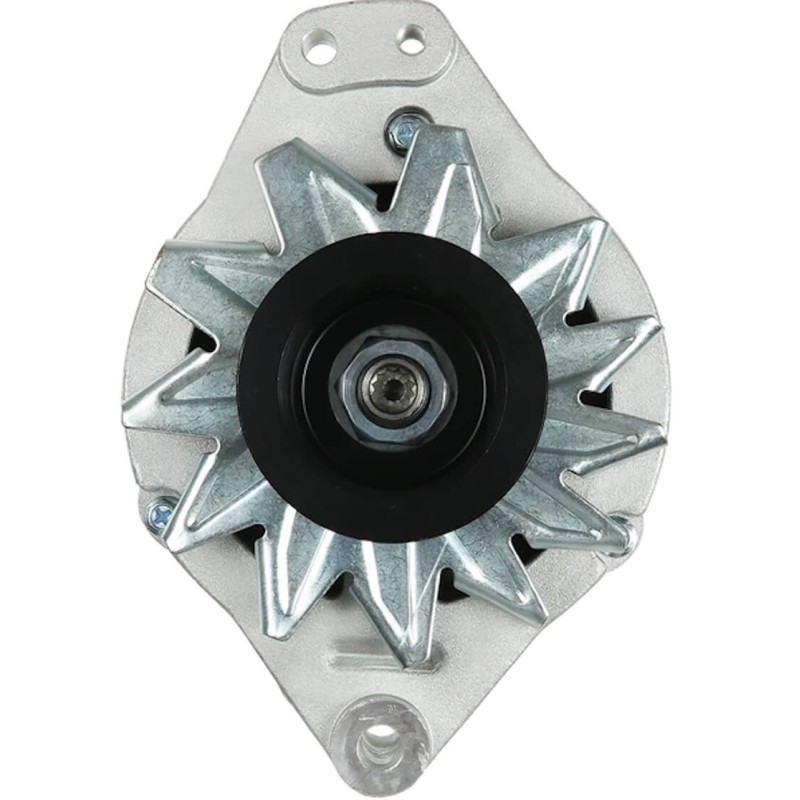

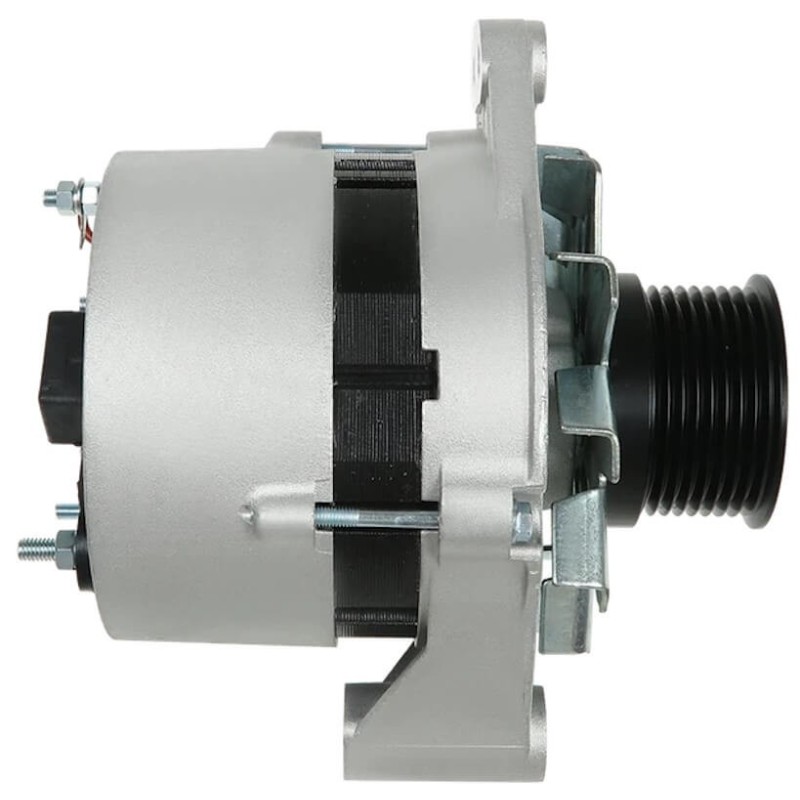

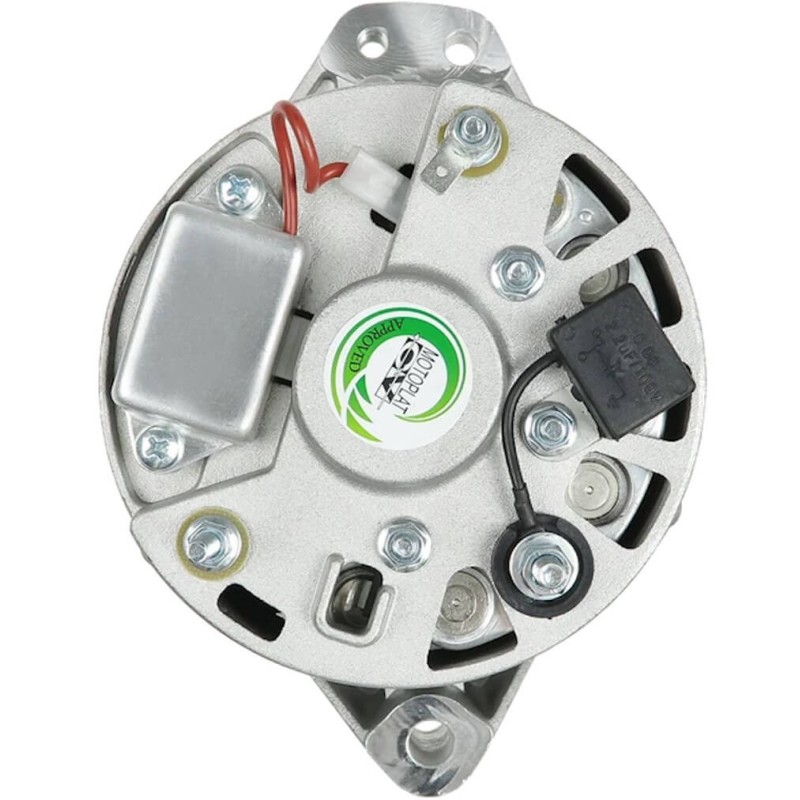

Alternator NEW for JOHN DEERE

Voltage 14 - Amp 55 - Plug type W - 8 grooves pulley

Replacing :

= LUCAS LRA02116

= MAGNETON 443113515241 /  443113516241



TWO YEARS WARRANTY

Read more
€129.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Références

113543

HC-Cargo

12130N

WAI

12130R

WAI

443113515241

Magneton

635033055

PSH

90369504

Wilson

90369504N

Wilson

9515170

Magneton

9515241

Magneton

AT173624

John Deere

DRA0019

Delco Remy

F032113543

HC-Cargo

LEA0080

Lucas

RE501634

John Deere

RE506196

John Deere

RE506197

John Deere

RNL9515241

RNL

SE501823

John Deere

SE501835

John Deere

Features

Information :

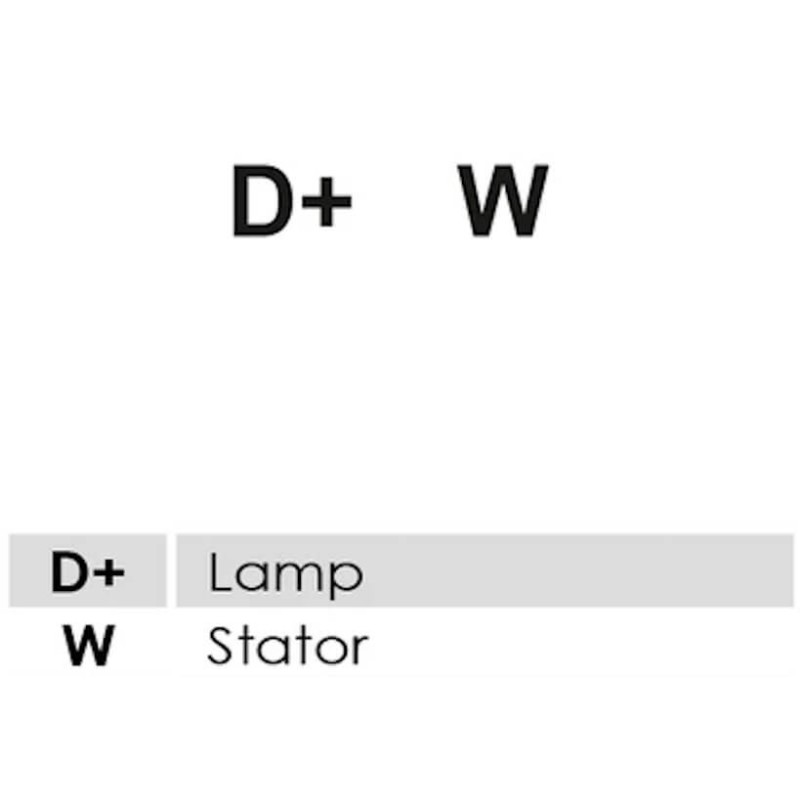

Voltage 14 - Amp 55 - Plug type W

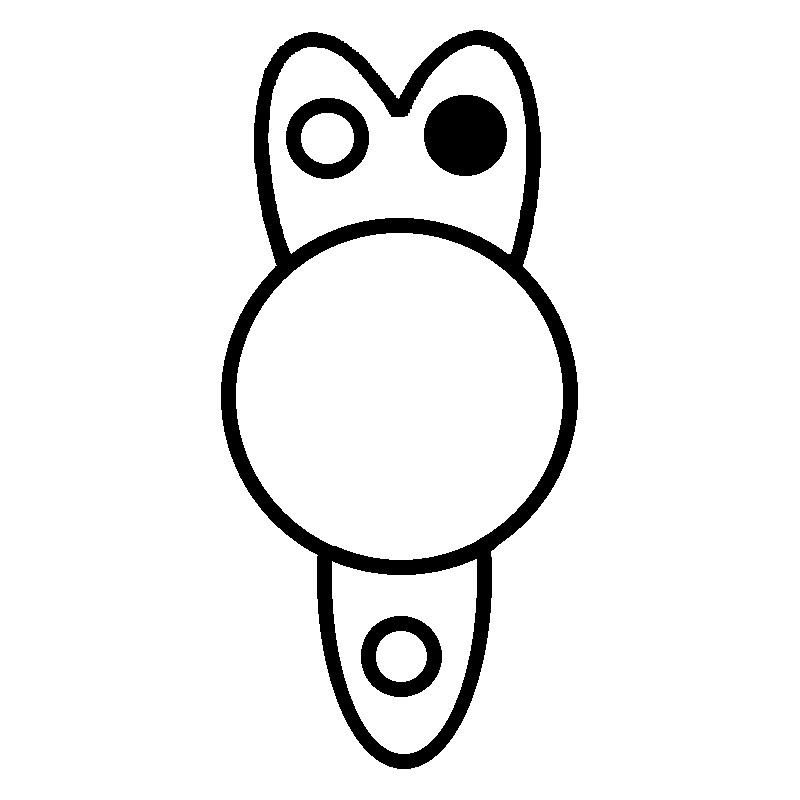

Physical Information
D Bracket hole 10.20
G Belt. adj. bracket hole 8.25
B Width/holder arm 50.75
E Belt. adj. brackethole pos. 57
E Ceinture from soutien réglable/ pos. 2 60
H Pulley dia. 60.00
A Pulley dist. 78.40
i Grooves/pulley 8
j Radius 83.00
j Radius 2 87.00
k Position B + M6
n Rotation Cr
o Plug no. 1 PL_NA
G Belt. adj. bracket hole 2 2 M8
Q Tipo prise W M5-6.3
R Total length mm 190.00
Replacing
443113515241 MAGNETON (PAL/SKODA)
443113516241 MAGNETON (PAL/SKODA)
9515241 MAGNETON (PAL/SKODA)
9516241 MAGNETON (PAL/SKODA)
LRA02116 LUCAS
RE501634 JOHN DEERE
re506196 JOHN DEERE
RE57960 JOHN DEERE
SE501823 JOHN DEERE

Brand generic

Mounting on

Brand Model Typ
ATLAS COPCO Engine ATL928
ATLAS COPCO Engine ATL968
INGERSOLL RAND Engine 4DIR015
INGERSOLL RAND Engine 4DIR023
INGERSOLL RAND Engine 4DIR137
INGERSOLL RAND Engine 4DIR154
INGERSOLL RAND Engine 4DIR184
INGERSOLL RAND Engine 4DIR291
INGERSOLL RAND Engine 4DIR995
INGERSOLL RAND Engine 4TIR865
INGERSOLL RAND Engine 4TIR927
INGERSOLL RAND Engine 4TIR987
INGERSOLL RAND Engine 6TIR349
JOHN DEERE Engine 4045
JOHN DEERE Engine 4045DF150
JOHN DEERE Engine 4045DF50
JOHN DEERE Engine 4045HF120
JOHN DEERE Engine 4045HF150
JOHN DEERE Engine 4045T
JOHN DEERE Engine 4045TF120
JOHN DEERE Engine 4045TF150
JOHN DEERE Engine 4045TF220
JOHN DEERE Engine 4045TF250
JOHN DEERE Engine 6068D150
JOHN DEERE Engine 6068DF150
JOHN DEERE Engine 6068HF150
JOHN DEERE Engine 6068HF250
JOHN DEERE Engine 6068T
JOHN DEERE Engine 6068TF150
JOHN DEERE Engine 6068TF220
JOHN DEERE Engine 6068TF250
JOHN DEERE Various Models Kohler
JOHN DEERE Engine PE4045DF150
JOHN DEERE Engine PE4045DKV50
JOHN DEERE Engine PE4045HF120
JOHN DEERE Engine PE4045HF150
JOHN DEERE Engine PE4045TF120
JOHN DEERE Engine PE4045TF150
JOHN DEERE Engine PE4045TF220
JOHN DEERE Engine PE4045TF250
JOHN DEERE Engine PE6068DF150
JOHN DEERE Engine PE6068HF150
JOHN DEERE Engine PE6068HF250
JOHN DEERE Engine PE6068TF150
JOHN DEERE Engine PE6068TF220
JOHN DEERE Engine PE6068TF250
