- Sale

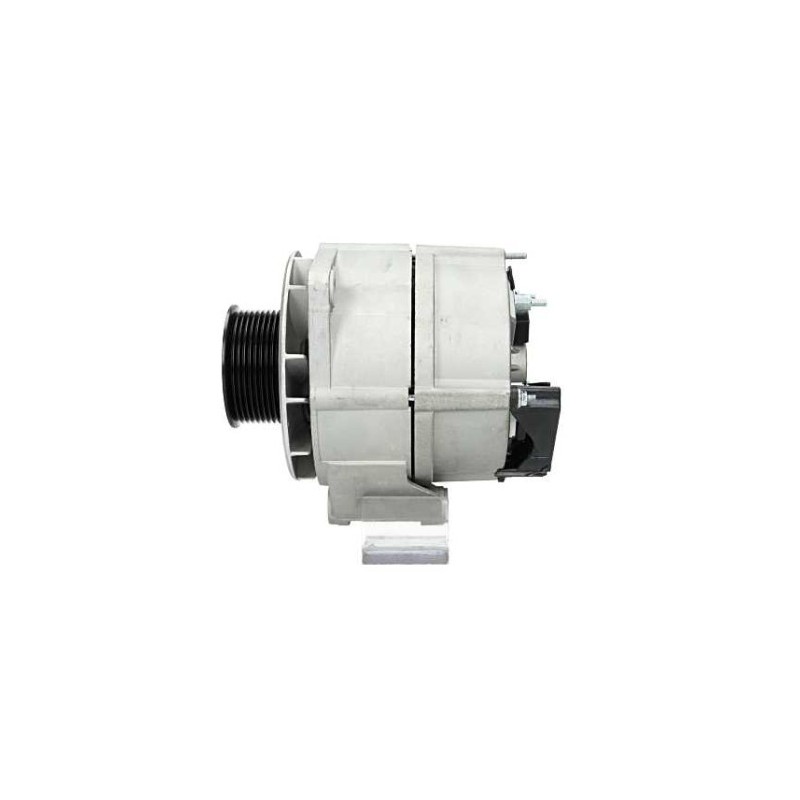

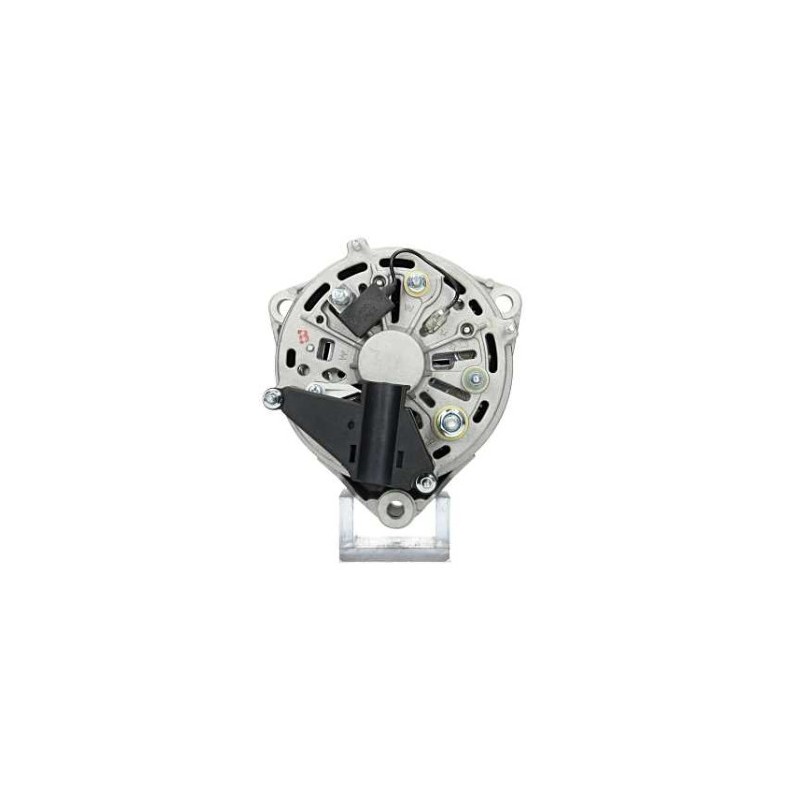

Alternator
Alternator replacing RA097009 for Crusader / Pleaonecraft
€229.90
Alternator replacing 0120469115 / 0120469116 / 0120469117 / 05716065 / 11209421 /11209442
W112561
Alternator NEW replacing BOSCH 0120469115 / 0120469116 / 0120469117 / 05716065 / 11209421 /11209442
0986040260 / 0986040263 / 437442 / AAN3111 / DRB0260 / LRB00302
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features
Information:
Electrical Information |
||
|---|---|---|
| Voltage | 28 | |
| Amp | 80 | |
| Plug type | W | |
Physical Information |
||
|---|---|---|
| D | Bracket hole | 10.80 |
| G | Belt. adj. bracket hole | 12.00 |
| B | Width/holder arm | 80.00 |
| E | Belt. adj. brackethole pos. | 10 |
| E | Ceinture from soutien réglable/ pos. 2 | 50 |
| j | Radius | 93.00 |
| j | Radius 2 | 90.00 |
| j | Radius 3 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |
| o | Plug no. 1 | PL_NA |
| G | Belt. adj. bracket hole 2 2 | 12.00 |
| Q | Tipo prise W | M5 |
| R | Total length mm | 188.00 |
Replacing |
|
|---|---|
| 0091549702 | MERCEDES BENZ |
| 0091549802 | MERCEDES BENZ |
| 0101549002 | MERCEDES BENZ |
| 0101549102 | MERCEDES BENZ |
| 0120469115 | BOSCH |
| 0120469116 | BOSCH |
| 0120469117 | BOSCH |
| 05716065 | BOMAG |
| 11.209.421 | ISKRA |
| 11.209.442 | ISKRA |
| 19025113 | DELCO REMY |
| 19070006 | DELCO REMY |
| 19070058 | DELCO REMY |
| 6033gb3019 | BOSCH |
| 6033gb3022 | BOSCH |
| 6033gb3027 | BOSCH |
| 860559 | BUTEC |
| A0091549702 | MERCEDES BENZ |
| A0091549802 | MERCEDES BENZ |
| A0101549002 | MERCEDES BENZ |
| A0101549102 | MERCEDES BENZ |
| AAN3111 | ISKRA |
| aan3119 | ISKRA |
| ca1593ir | HC-PARTS |
generic brand
Mounted on :
TruckS MERCEDES BENZ (1987 - 2006)
Voitures MERCEDES-BENZ (2000-2012)
