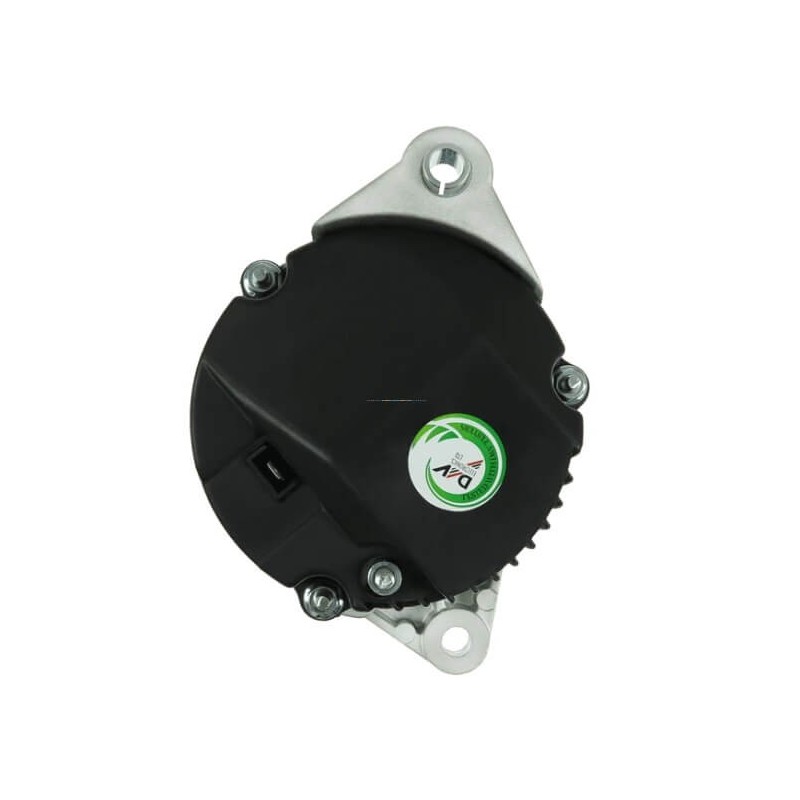

Alternator replacing BOSCH 0120489188 / 0120489187 / 0120489186

Information:

Voltage 14

Amp 65

Plug type W

D = Bracket hole 10.00

G = Belt. adj. bracket hole 11.00

B = Width/holder arm 23.00

E = Belt. adj. brackethole pos. 6

C = Mount. bracket dist 74.00

H = Pulley dia. 68.00

A = Pulley dist. 52.00

Grooves/pulley 1

J = Radius 80.00

J = Radius 86.00

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley

R = Total length mm 164.50

generic brand

= BOSCH 0120489188 / 0120489187 / 0120489186 / 0120489126

= ISKRA AAK3538 / AAK3529 / AAK1175 / AAK1172 / AAK1171

AAK1163 / AAK1123 / AAG0403

11.201.432 / 11.201.405

= LUCAS LEA0045 / 54022240 / 54022171 / 24214A

24214 / 24213A / 24213 / 24203

= MAGNETI MARELLI 63505101 / 63321154 / 63321005

63321003 / 63320130 / 63320056 / 63320028

63320004 / 63307431 / 63307401

= MAGNETON 9516714

= MITSUBISHI A2T32171 / A002T32171

= DELCO REMY 19025789 / 19025787 / 19025051

= VALEO A13E26 / A13E25 / 2541236 / 2541235

= FIAT 4395131 / 4434084 / 46231684 / 46231687

5958394 / 5958395 / 5967595 / 5967596 / 7533853

7541823 / 7580207 / 77320410 / 77367411

7765558 / 992235

                      NO CORE EXCHANGE NEEDED

                                      TWO YEARS WARRANTY
