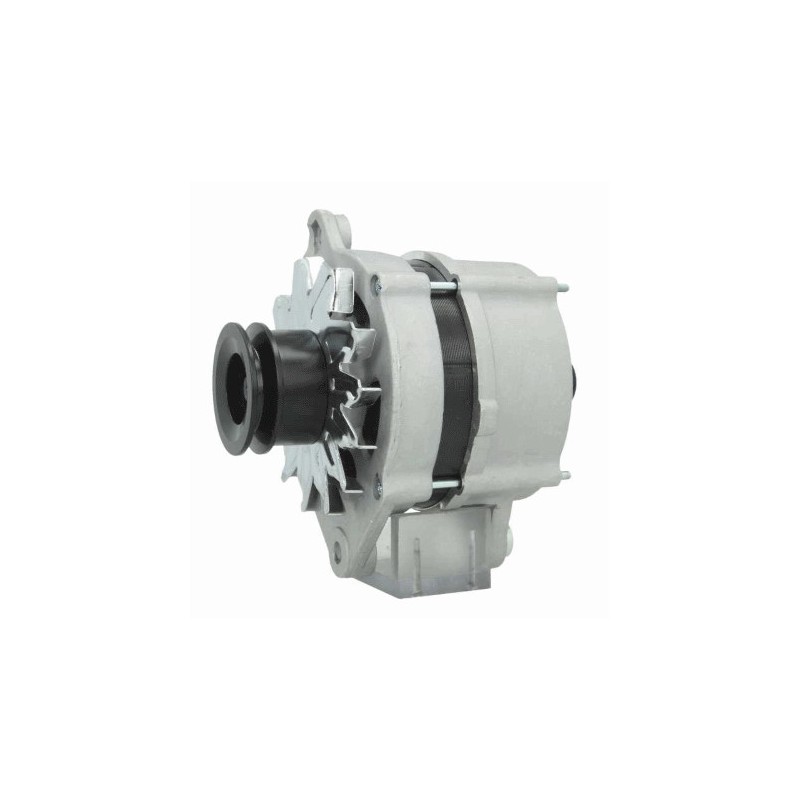

Alternator replacing BOSCH 0120469890 / 0120469634 / 0120469549

Information:

Rotation Cr

Amp 55

Voltage 28

Plug type W

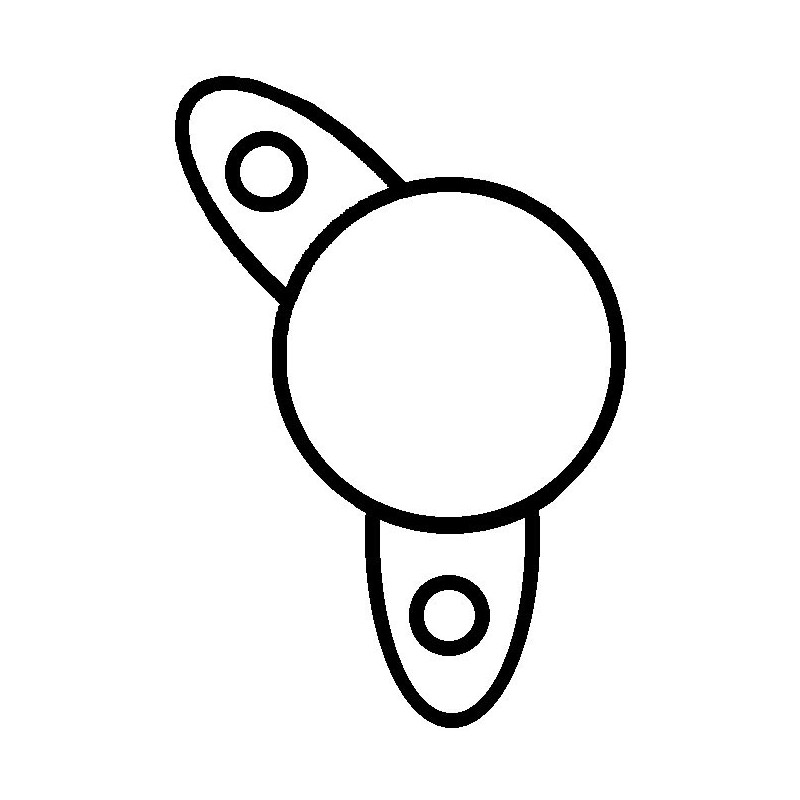

D = Bracket hole 12.75

G = Belt. adj. bracket hole 11.00

B = Width/holder arm 17.45

E = Belt. adj. brackethole pos. 57

C = Mount. bracket dist 63.00

E = Pulley dia. 70.00

H = Pulley dist. 50.00

A = Grooves/pulley 2

J = Radius 93.50

J = Radius 2 87.75

Position B + M8

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley double

Tipo regulator Ir

Info produit Bn, Tipo prise W M5, Total length mm 188.00

= BOSCH 0120469890 / 0120469634 / 0120469549 / 0986034420

= ISKRA AAK4507 / 11.201.555

= VALEO 2541423

= KHD 04757192 / 4757192

= FIAT 4738026 / 4757192 / 4757193 / 4757194 / 4844266

= IVECO 4757193 / 4757194

                    NO CORE EXCHANGE NEEDED

                                           TWO YEARS WARRANTY
