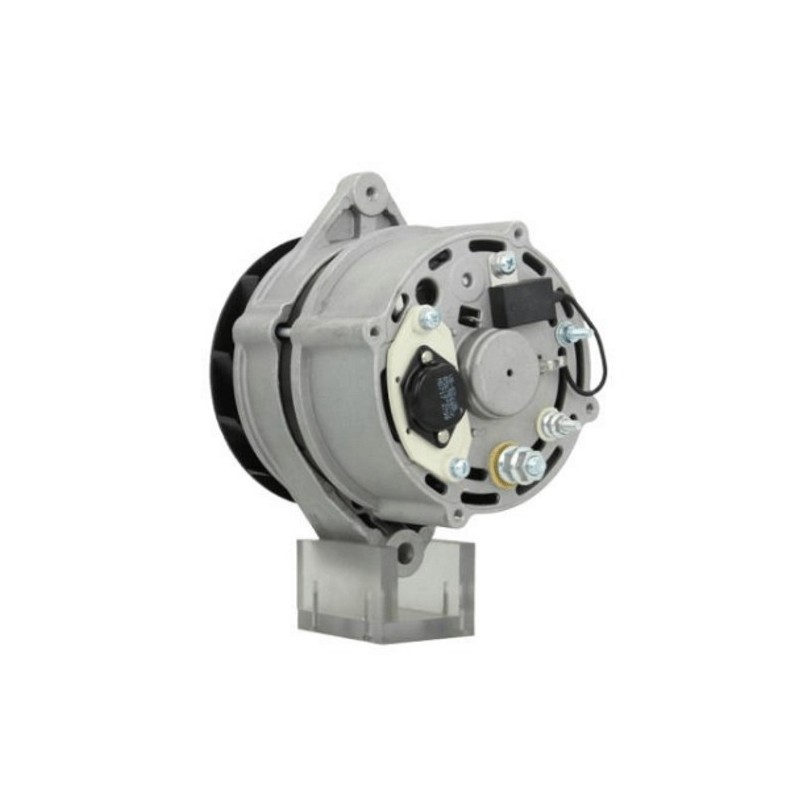

Alternator NEW for Case
= DELCO REMY DRB0290
JOHN DEERE 69X 519 07A, 69X 519 08A, 69X56677B, AT 17 362 4, AT173624, AT173625, AT220393, RE505895, RE506196, RE509106, RE519629, RE533516, RE553516, REX51907B, SE501387, SE501835, SE502626, TY6799
= ISKRA IA0595 / IA1299 / AAK3359 / AAK4539
8 GROOVES PULLEY
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
Information:
Voltage 14 - Amp 65 - Plug type W

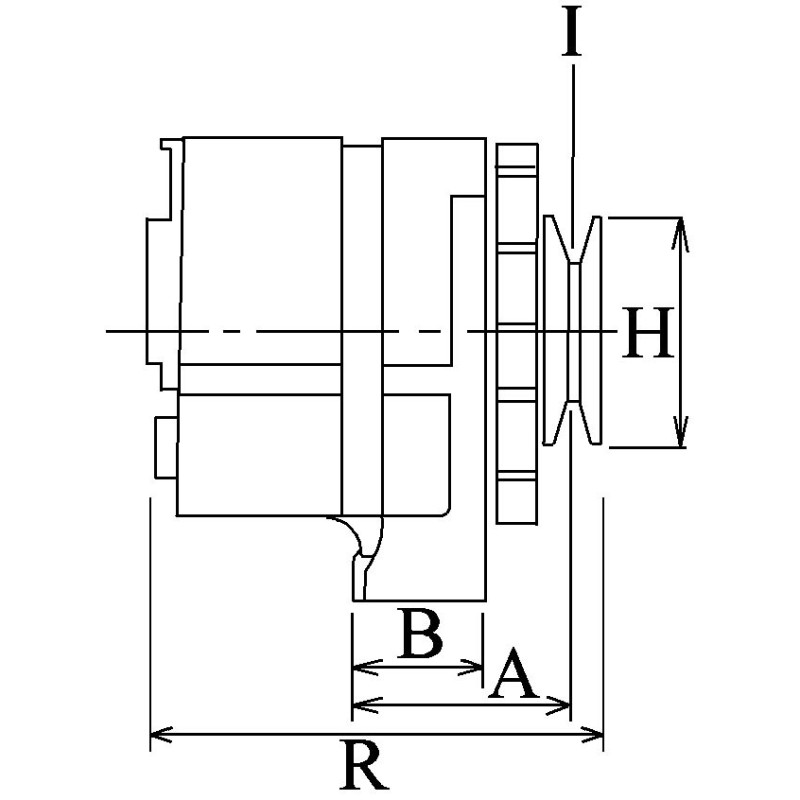

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.40 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 50.60 |
| E | Belt. adj. brackethole pos. | 60 |
| H | Pulley dia. | 60.00 |
| A | Pulley dist. | 81.00 |

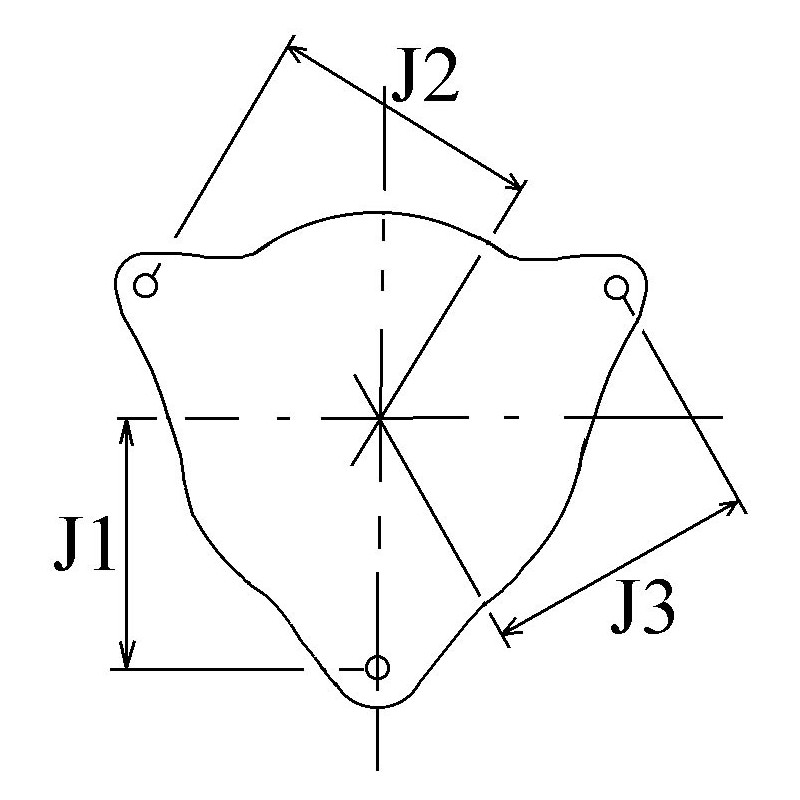

| j | Radius | 86.00 |
| j | Radius 2 | 86.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |

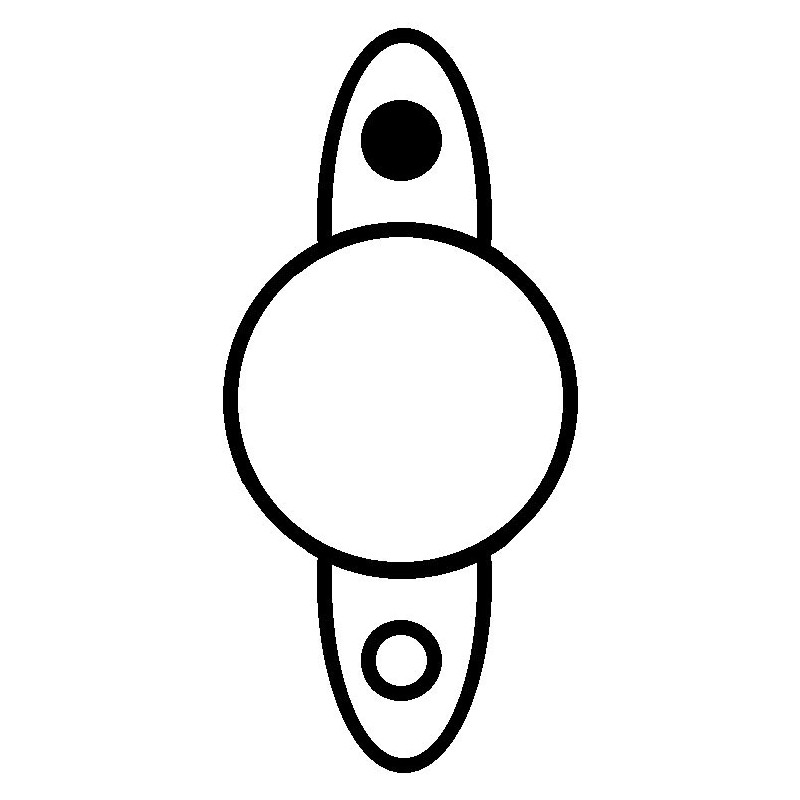

| o | Plug no. 1 | PL_NA |
| Q | Tipo prise W | 6.3 |
| R | Total length mm | 192.00 |
Replacing | |
|---|---|
| 0120488205 | BOSCH |
| 0120488293 | BOSCH |
| 0120489475 | BOSCH |
| 0986040290 | BOSCH |
| 11.201.595 | ISKRA |
| 11.201.935 | ISKRA |
| 3920679 | CUMMINS |
| 3e7285 | CATERPILLAR |
| 9515170 | MAGNETON (PAL/SKODA) |
| A181873 | INTERNATIONAL HARV. |
| A187873 | CASE |
| aak1363 | ISKRA |
| AAK3330 | ISKRA |
| AT173624 | JOHN DEERE |
| ca1197ir | HC-PARTS |
| F005A00023 | BOSCH |
| RE509106 | JOHN DEERE |
| SE501387 | JOHN DEERE |
generic brand
= DELCO REMY DRB0290
= ISKRA IA0595 / IA1299 / AAK3359 / AAK4539
= MAGNETON 9515170
= PRESTOLITE 20110305
= CATERPILLAR 3e7285
= International Harvester A181873
= HELLA 8EL737217001
= LUCAS LRB00305
= JOHN DEERE AT173624 / RE509106 / SE501387
BOSCH 0 120 488 205, 0 120 488 285, 0 120 488 293, 0 120 489 475, 9 120 060 040, 9 120 060 041, 9 120 060 044, F 005 A00 023, F 005 A00 026, Case A 187873, A186125, A187873, AR186125, AR187873, CATERPILLAR 3E 7285, 3E-7295, 3E7285, 3E7295
CUMMINS 3 920 679, 3604480RX, 3675270NW, 3911248, 3920679, 39206791, DOOSAN 46550712, IHC, NAVISTAR A 187 873, A181873, A187873
JOHN DEERE 69X 519 07A, 69X 519 08A, 69X56677B, AT 17 362 4, AT173624, AT173625, AT220393, RE505895, RE506196, RE509106, RE519629, RE533516, RE553516, REX51907B, SE501387, SE501835, SE502626, TY6799, LETRIKA (ISKRA) 11.201.935, 11.204.382, 11.204.395, LETRIKA Old 11.203.641, MAGNETON 9-515-170, 9-515-241, 9-515-765, 9515.170, NEW HOLLAND A187873, Onan 191-2326-01, PRESTOLITE 20110305, THERMO KING 44-8499
fits:
JOHN DEERE :
tous JOHN DEERE 4045DFM50
2007-04 JOHN DEERE 4045DFM70
tous JOHN DEERE 4045TFM50
2007-04 JOHN DEERE 4045TFM75
2007-04 JOHN DEERE 6068SFM50
tous JOHN DEERE 6068TFM50
2007-04 JOHN DEERE 6068TFM75
2007-04 JOHN DEERE 6068TFM76
CASE :
SERIE 32 :
3210, 3220, 3230
SERIE 42:
4210, 4220, 4230, 4240
SERIE 51 ET 52 :
5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250
SERIE MX :
MX100, MX100C, MX110, MX120, MX135, MX80C, MX90C
