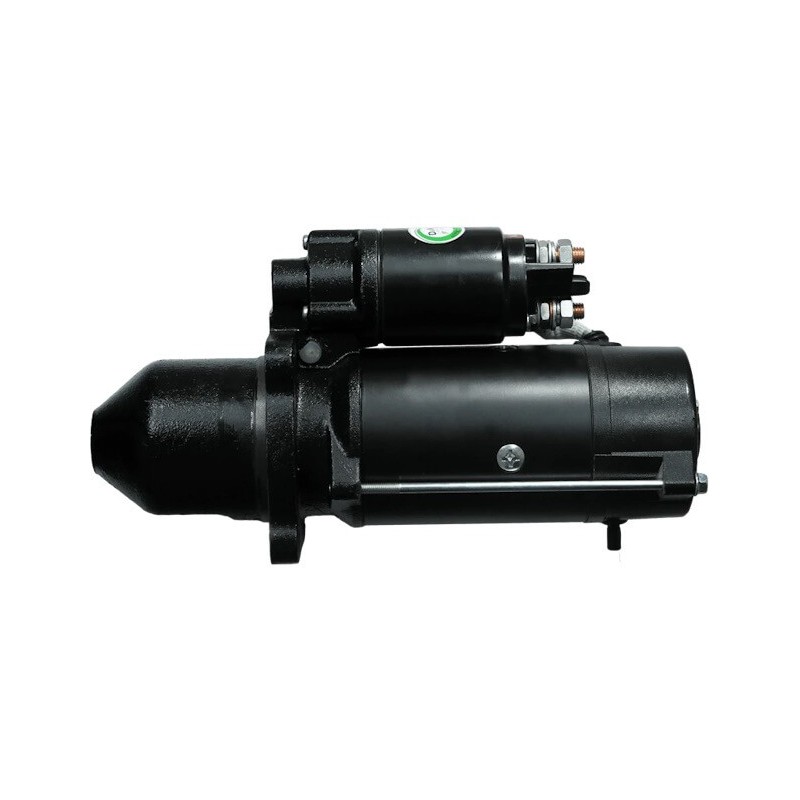

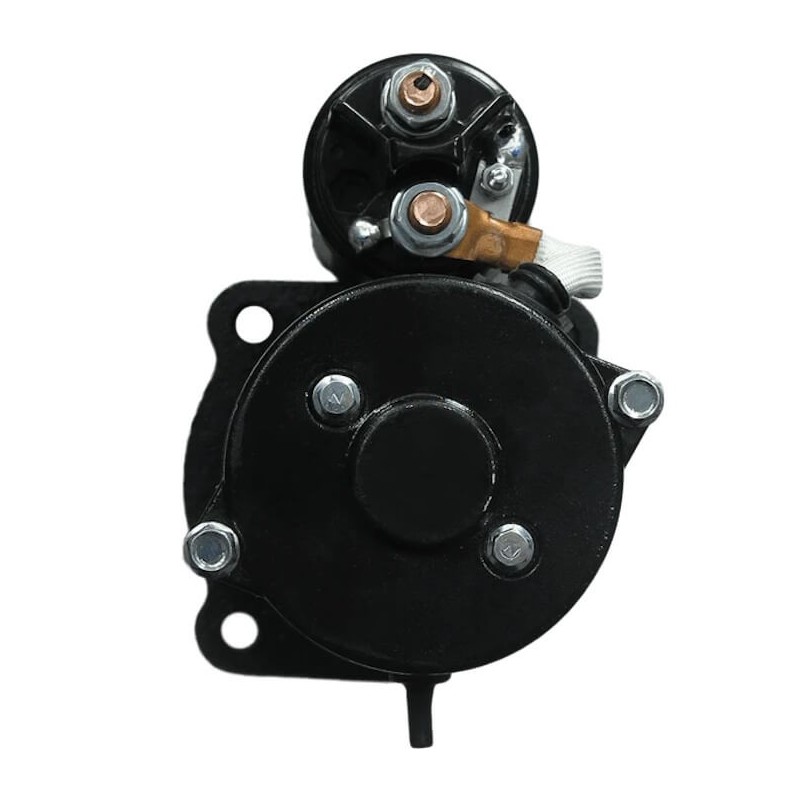

Starter 4.2 Kw replacing RE504009 / RE523502 / RE68783 / SE502632
Starter 4.2 Kw replacing RE504009 / RE523502 / RE68783 / SE502632
Starter 4.2 Kw replacing RE504009 / RE523502 / RE68783 / SE502632
Starter 4.2 Kw replacing RE504009 / RE523502 / RE68783 / SE502632
Starter 4.2 Kw replacing RE504009 / RE523502 / RE68783 / SE502632
Previous
Next
Starter 4.2 Kw replacing RE504009 / RE523502 / RE68783 / SE502632
Starter 4.2 Kw replacing RE504009 / RE523502 / RE68783 / SE502632
Starter 4.2 Kw replacing RE504009 / RE523502 / RE68783 / SE502632
Starter 4.2 Kw replacing RE504009 / RE523502 / RE68783 / SE502632
Starter 4.2 Kw replacing RE504009 / RE523502 / RE68783 / SE502632

Starter 4.2 Kw replacing RE504009 / RE523502 / RE68783 / SE502632

w115721

253017 Elstock
3114986 Hyster
46550710 Doosan
650502103 PSH
72736114 Mahle
72740702 Mahle
AZF4553 Mahle
AZF4598 Mahle
AZJ3325 Mahle
AZJ3342 Mahle
IS0796 Mahle
IS1056 Mahle
LRS01535 Lucas
LRS1535 Lucas
Read more
€189.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Electrical Information
Voltage 12
KW 4.2

Generic Brand

Physical Information

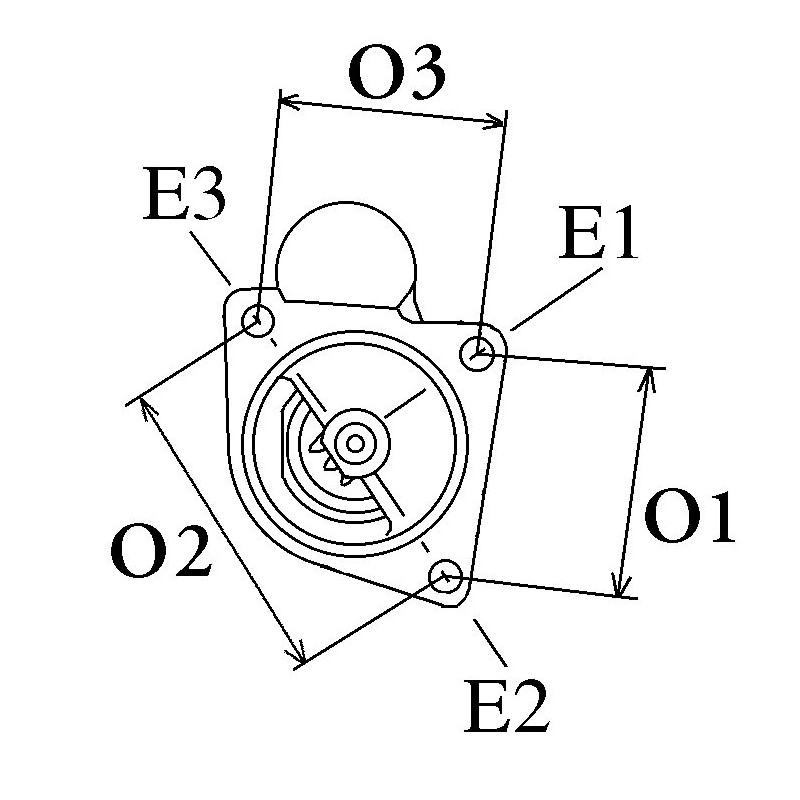

A Mount flange 89.00
E Mounting holes 11.00
E Mounting holes 2 11.00
E Mounting holes 3 11.00
B Drive distance 48.00
F Distance / Back 222.50
G Distance / Front 96.50
H Nbr of teeth 10
I B+ M10
N Gear type Gr
O Distance mm 89.80
O Distance 2 127.00
O Distance 3 89.80
P Rotation CW
R Total length mm 321.50

generic brand

replacing

11130382 Mahle
11130796 Mahle
11130940 Mahle
11131382 Mahle
115721 Cargo
18101056 AES
20128107 Dixie
253017 Elstock
3114986 Hyster
46550710 Doosan
650502103 PSH
72736114 Mahle
72740702 Mahle
AZF4553 Mahle
AZF4598 Mahle
AZJ3325 Mahle
AZJ3342 Mahle
IS0796 Mahle
IS1056 Mahle
LRS01535 Lucas
LRS1535 Lucas
MAHMS486 Wood Auto
MS486 Mahle
MS621 Mahle
RE30493 John Deere
RE509025 John Deere
RE509856 John Deere
RE523501 John Deere
RE683783 John Deere
RNLMS486 RNL
SE502632 John Deere
STR60607 Wood Auto
WOOSTR60607 Wood Auto

for

Brand Model Typ Year
CASE 660 [TAA] 01/05/04
CUMMINS Isb 01/01/98
DOOSAN G100 4.5 [4045HF279]
DOOSAN G150-IIIA 6.8 [6068HFG82]
DOOSAN G200-IIIA 6.8 [6068HFG82]
DOOSAN G60 4.5 [4045TF270]
DOOSAN G80 4.5 [4045HF275]
IH 358, 358
JOHN DEERE 1165 6.8 [6068T]
JOHN DEERE 1175 6.8 [6068]
JOHN DEERE 1175Hydro 6.8 [6068]
JOHN DEERE 3200 4.5 [4045HZ275]
JOHN DEERE Engine 4.5 [4045HF120]
JOHN DEERE Engine 4.5 [4045HF150]
JOHN DEERE 6059DF
JOHN DEERE 6059HF
JOHN DEERE 3215 4.5 [4045HZ275]
JOHN DEERE 6059TF
JOHN DEERE Engine 4.5 [4045TF120]
JOHN DEERE 3220 4.5 [4045HZ275]
JOHN DEERE 6068 6.8
JOHN DEERE Engine 4.5 [4045TF150]
JOHN DEERE 6068DF 6.8
JOHN DEERE Engine 4.5 [4045TF250]
JOHN DEERE 6068HF 6.8
JOHN DEERE 1450 6.8 [6068]
JOHN DEERE 6068TF 6.8
JOHN DEERE 1450CWS 6.8 [6068]
JOHN DEERE 1470 6.8 [6068TCQ18]
JOHN DEERE 1550 6.8 [6068]
JOHN DEERE Engine 4.5 [CD4045TF]
JOHN DEERE 1550CWS 6.8 [6068]
JOHN DEERE Engine 5.9 [6059DF092]
JOHN DEERE Engine 5.9 [6059TF]
JOHN DEERE Engine 6.10 [6068TYC52]
JOHN DEERE Engine 6.11 [6068TYC53]
JOHN DEERE Engine 6.8 [6068HCQ06]
JOHN DEERE Engine 6.8 [6068HF150]
JOHN DEERE Engine 6.8 [6068HF275]
JOHN DEERE 3029DF 2.9
JOHN DEERE 3029TF 2.9
JOHN DEERE Engine 6.8 [6068HFG82]
JOHN DEERE Engine 6.8 [6068HFS85]
JOHN DEERE Engine 6.8 [6068HFS]
JOHN DEERE Engine 6.8 [6068LAG]
JOHN DEERE Engine 6.8 [6068TF120]
JOHN DEERE Engine 6.8 [6068TF150]
JOHN DEERE 3400 4.5 [4045HZ275]
JOHN DEERE Engine 6.8 [6068TF220]
JOHN DEERE 3415 4.5 [4045HZ275]
JOHN DEERE 3420 4.5 [4045HZ275]
JOHN DEERE Engine 6.8 [CD6068TF]
JOHN DEERE Engine 6.9 [6068TF092]
JOHN DEERE 3800 4.5 [4045HZ050]
JOHN DEERE 3800 4.5 [4045HZ060]
JOHN DEERE Engine 2.9 [3029DF120]
JOHN DEERE Engine 2.9 [3029DF124]
JOHN DEERE Engine 2.9 [3029DF150]
JOHN DEERE Engine 2.9 [3029DF151]
JOHN DEERE Engine 2.9 [3029DF160]
JOHN DEERE Engine 2.9 [3029DF180]
JOHN DEERE Engine 2.9 [3029DF]
JOHN DEERE 4039DF 3.9
JOHN DEERE Engine 2.9 [3029HF270]
JOHN DEERE Engine 2.9 [3029TF120]
JOHN DEERE Engine 2.9 [3029TF150]
JOHN DEERE 4039TF 3.9
JOHN DEERE Engine 2.9 [3029TF152]
JOHN DEERE Engine 2.9 [3029TF160]
JOHN DEERE Engine 2.9 [3029TF180]
JOHN DEERE 6403 4.5 [4045T] 01.2002-01.2005
JOHN DEERE Engine 2.9 [3029TF270]
JOHN DEERE Engine 2.9 [3029TF]
JOHN DEERE 4045DF 4.5
JOHN DEERE Engine 2.9 [CD3029DF]
JOHN DEERE Engine 3.10 [CD4039TF]
JOHN DEERE 4045HF 4.5
JOHN DEERE 4045TF 4.5
JOHN DEERE Engine 3.9 [CD4039DF]
JOHN DEERE Engine 4.5 [4045DF150]
LOADLIFTER 8000 Laborer 01/01/96
PRAIRE 4800 01.1993-12.1997
PRAIRE 4900 01.1993-12.1997
VERMEER BC1230A 4.4 [1004.40T] 01/01/98
VERMEER BC1250 [4.236] 01/01/96
VERMEER BC1250A 4.4 [1004.40T] 01/01/98
VERMEER BC1600A [4.236] 01/01/91
VERMEER BC1800A 4.4 [1004.40T] 01/01/97
VERMEER SC1102 [4.236] 01/01/95
