Alternator replacing BOSCH 0120489827 / 0120489684 / 0120489230

Information:

Voltage 28

Amp 35

Plug type W

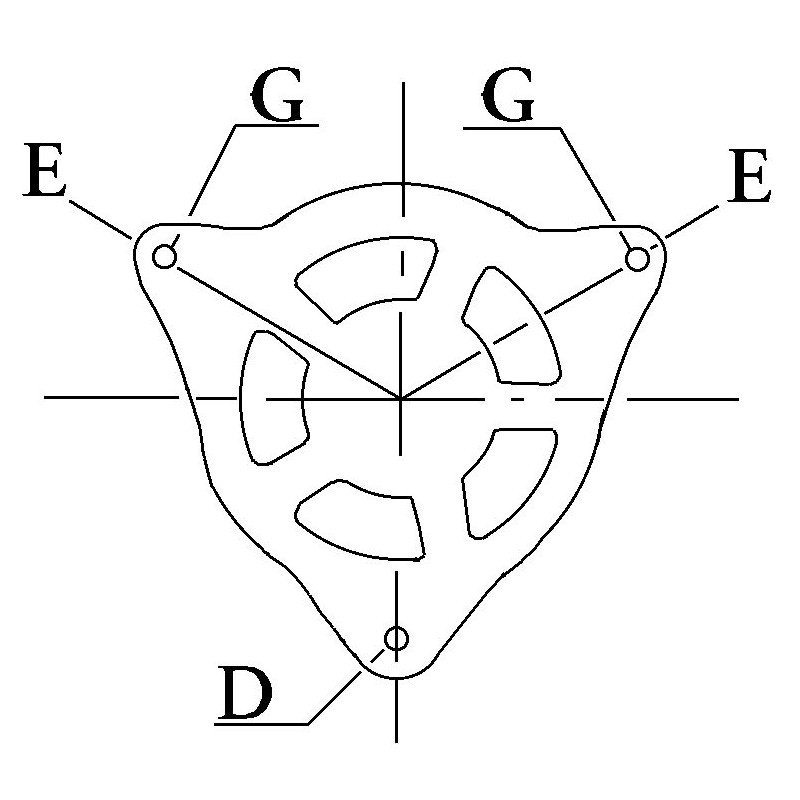

D = Bracket hole 10.00

G = Belt. adj. bracket hole 10.00

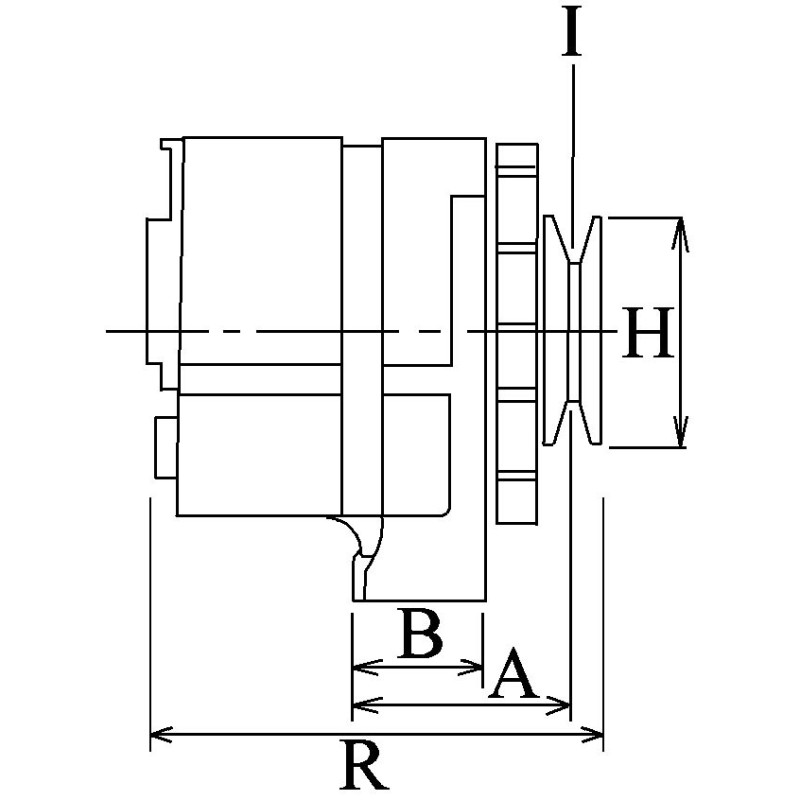

B = Width/holder arm 80.00

E = Belt. adj. brackethole pos. 56

E = Belt. adj. brackethole pos. 4

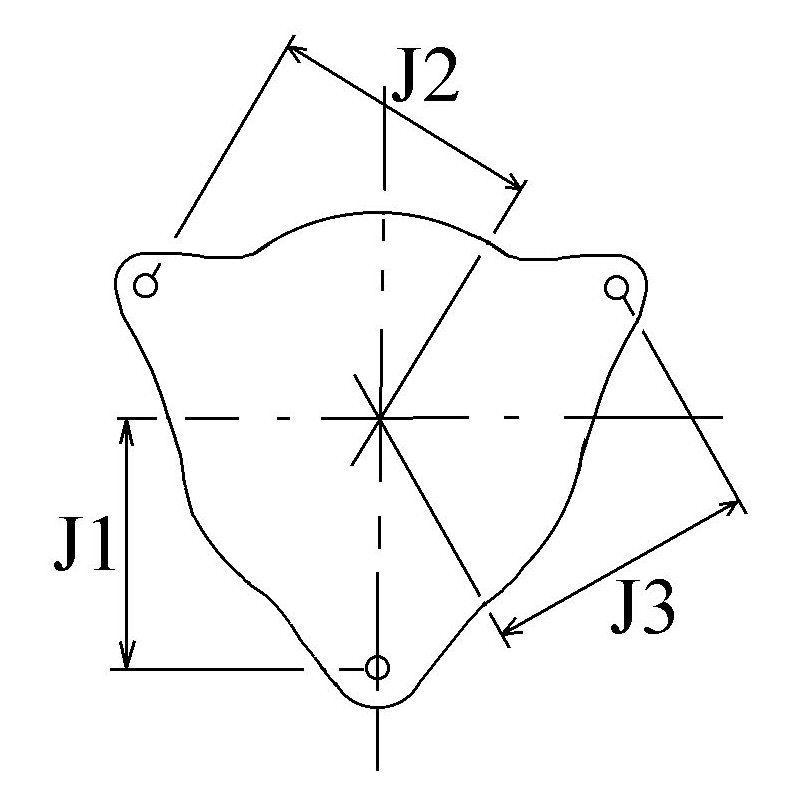

J = Radius 90.00

J = Radius 86.00

J = Radius 86.00

Position B + M8

Rotation Cr

Plug no. 1 PL_NA

Fan Without

Pulley Without

Belt. adj. bracket hole 10.00

R = Total length mm 180.00

= BOSCH 0120489053 / 0120488289 / 0120488273 / 0120488208 / 0120400796

= Butec 860155 / 859020 / 858773

= CAV 2998055

= MOTOROLA 9AR3987G / 510-397

= MAN 51.26101-7155

= VALEO a13n33

                              NO CORE EXCHANGE NEEDED

                                                TWO YEARS WARRANTY
