Alternator replacing BOSCH 0120489345 / 0120489290

Information:

Rotation Cr

Amp 55

Voltage 14

Plug type W

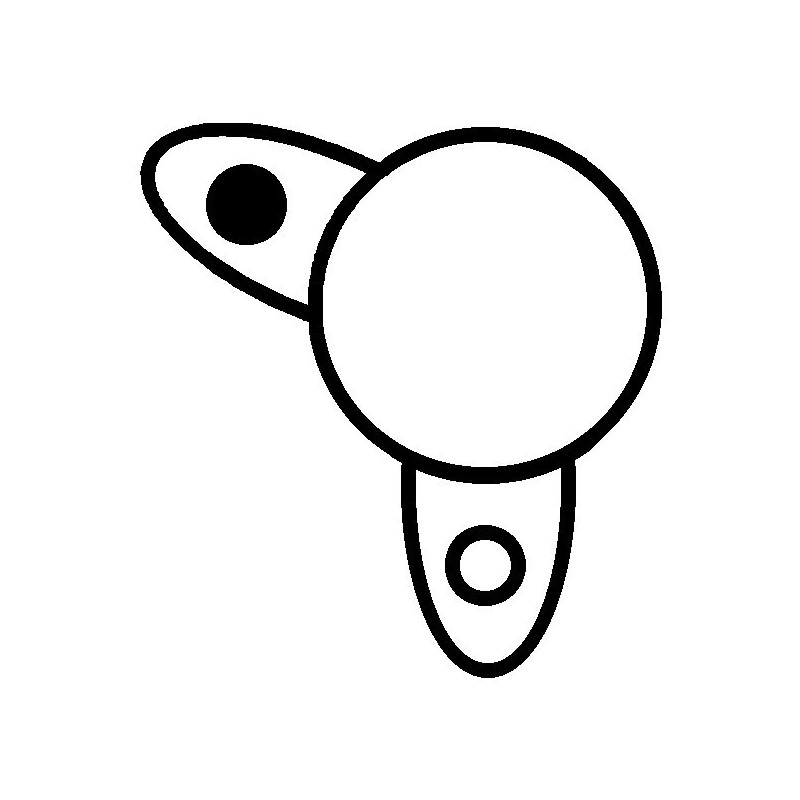

D = Bracket hole 8.40

G = Belt. adj. bracket hole M8

B = Width/holder arm 11.00

E = Belt. adj. brackethole pos. 50

C = Mount. bracket dist 81.00

H = Pulley dia. 64.00

A = Pulley dist. 34.50

Grooves/pulley 1

J = Radius 86.00

J = Radius 85.00

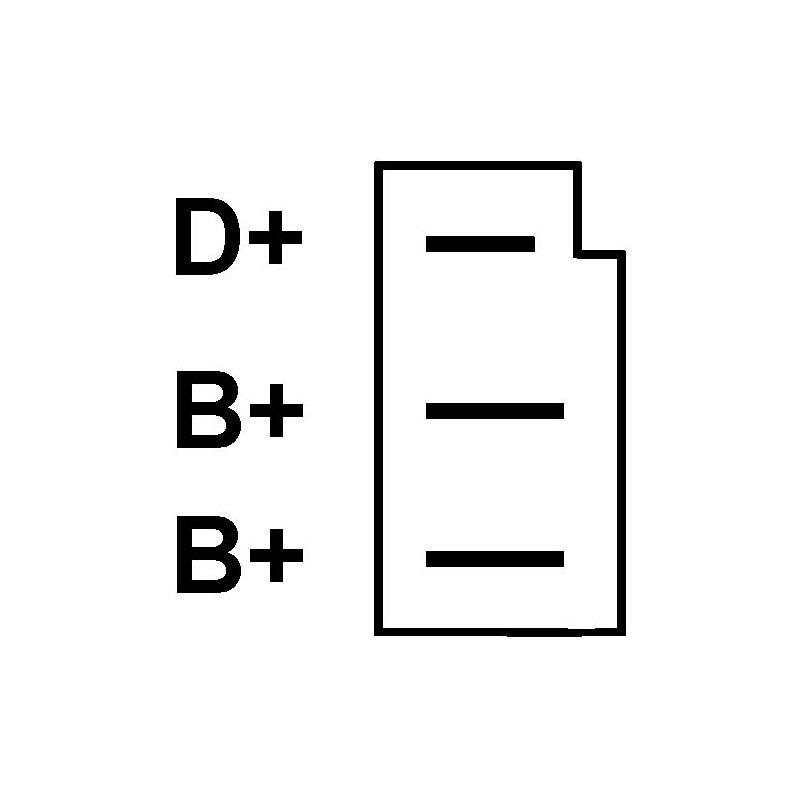

Position B + Plug

Plug no. 1 PL22

Fan Ef

Pulley Pulley

generic brand

= BOSCH 0120489345 / 0120489290

= FORD R86AX10300AB / 87BB10300BA / 86AX10300DB / 86AX10300AB / 86AB10300EB

85BB10300DA / 83BB10300HA / 86AX10300AAA / 86ab10300ea / 83bb10300ha

82fb10300ea / 82FB10300BB / 82FB10300BA / 6136946 / 5026096 / 5008989

1610118

= ISKRA AAK1329 / AAK1325 / 11.201.415 / 11.201.399

= LUCAS LEA0074 / LEA0055 / 54022803 / 54022740 / 54022695 / 54022668

54022598 / 54022335 / 54022241 / 54022211 / 54022182 / 54022160

54022142 / 54022053 / 24298a / 24289a / 24289 / 24277a / 24277 / 24261a

24261 / 24249 / 24215a / 24215

= MAGNETON 443113516701 / 443113516700

= MOTOROLA 9AR2630K / 2940080

= VALEO 2926300

                    NO CORE EXCHANGE NEEDED

                                           TWO YEARS WARRANTY
