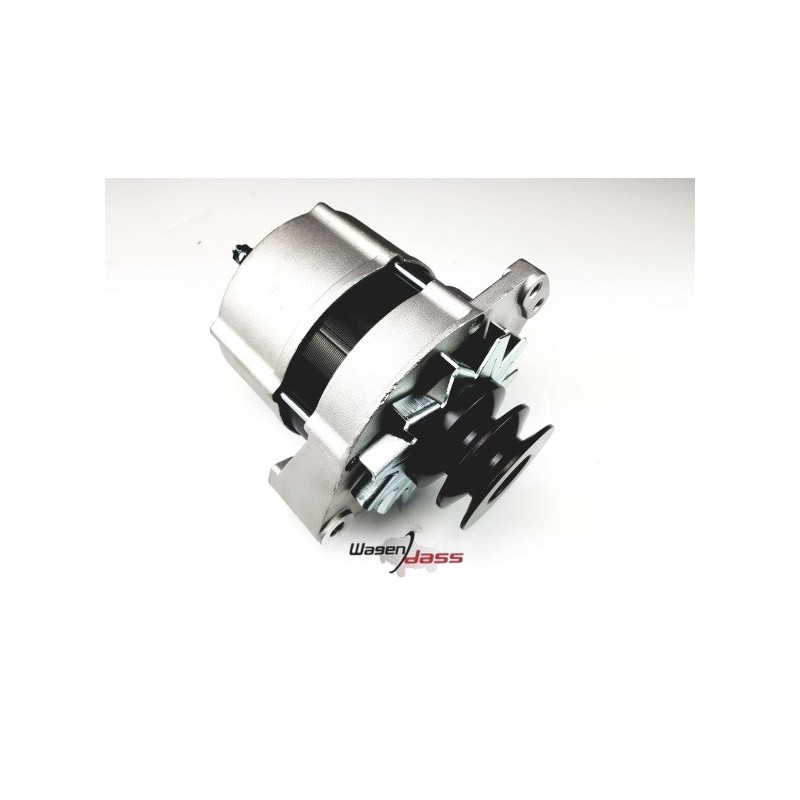

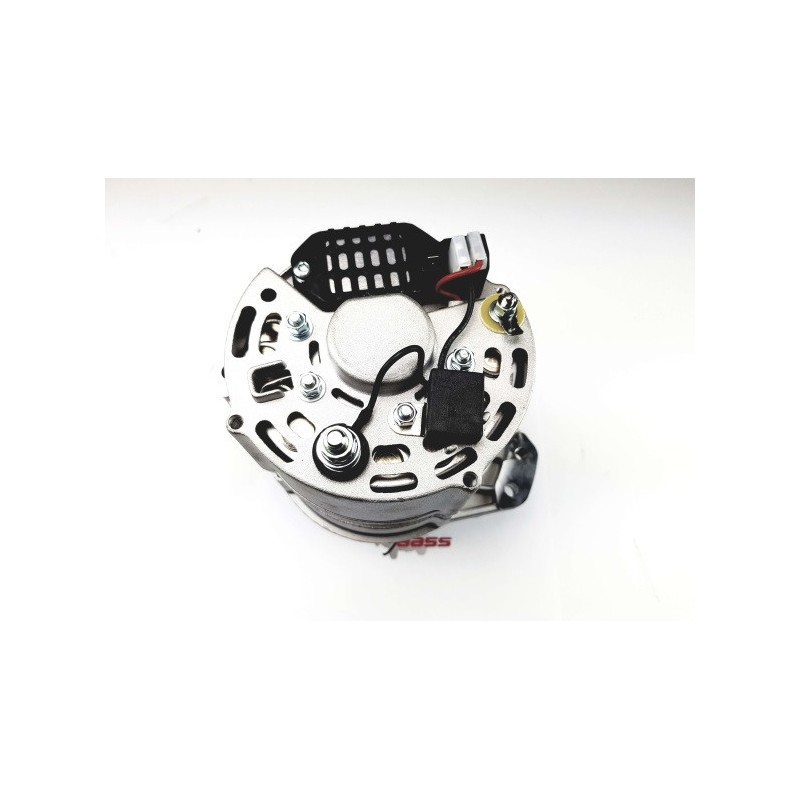

Alternator replacing MAGNETON 9515122 / 9515112 for Case

Information :

Rotation Cr

Amp 120

Voltage 14

Plug type W

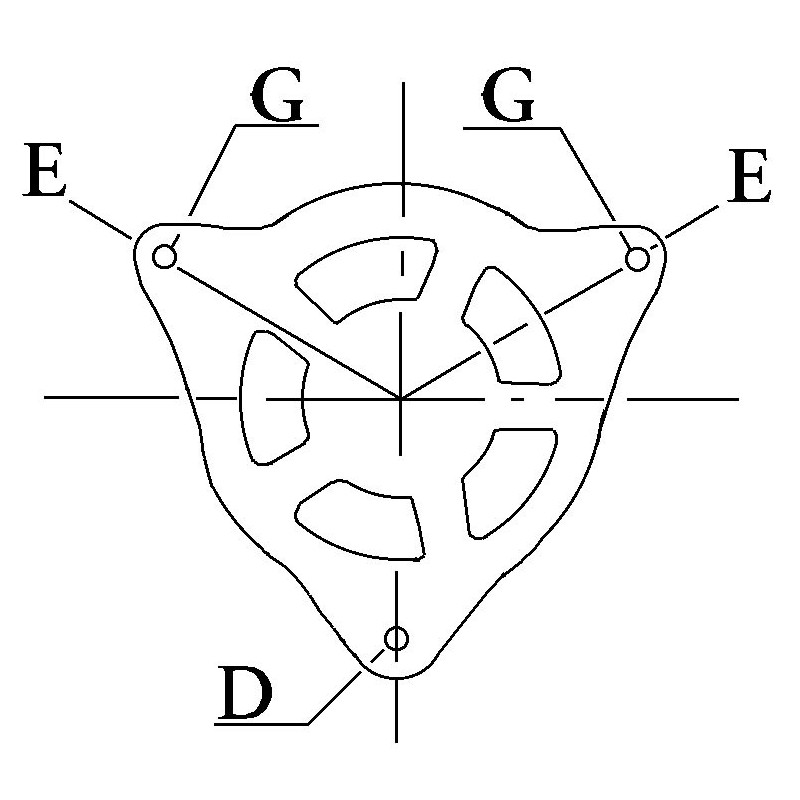

D =  Bracket hole 10.20

G =  Belt. adj. bracket hole 8.10

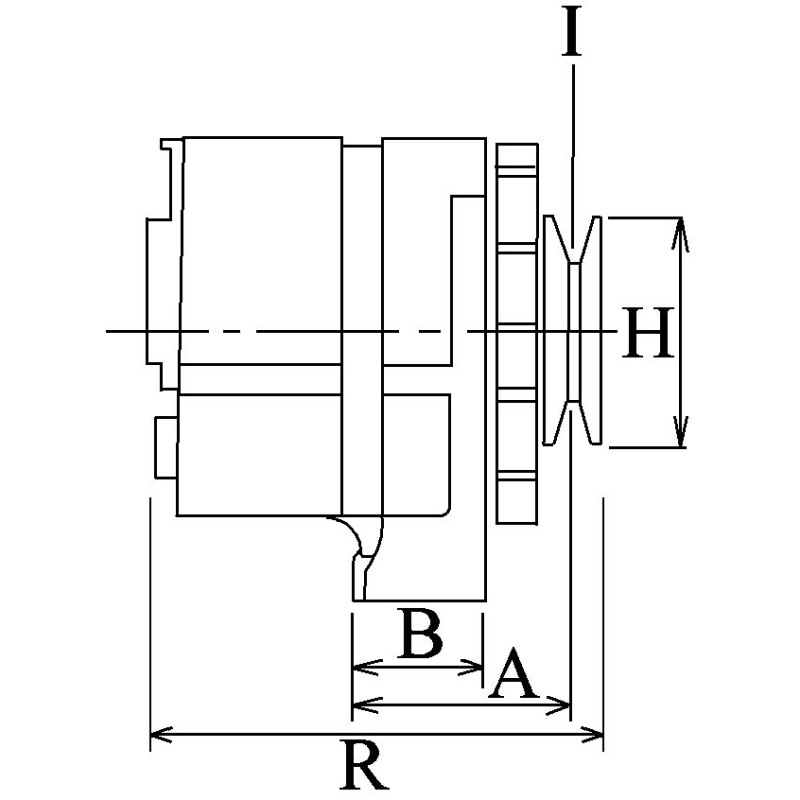

B =  Width/holder arm 50.80

E =  Belt. adj. brackethole pos. 58

H =  Ceinture from soutien réglable/ pos. 2 60

A = Pulley dia. 71.50

A = Pulley dist. 77.00

Grooves/pulley 2

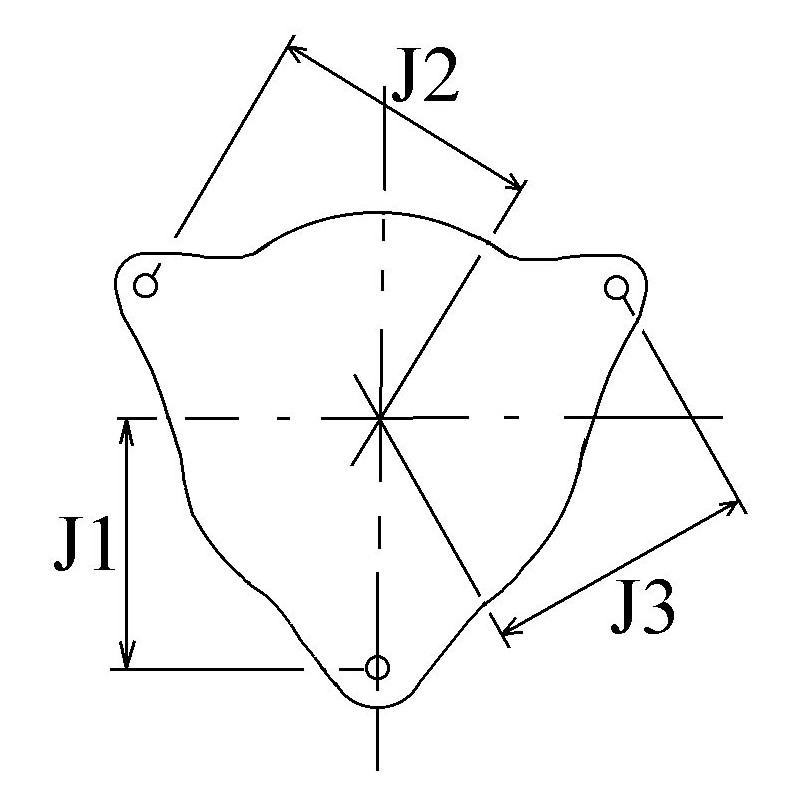

J =  Radius 86.00

J =  Radius 2 87.00

J =  Radius 3 87.00

Position B + M8

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley double

Tipo regulator Ir

Belt. adj. bracket hole 2 2 M8

Tipo prise W M5

R =  Total length mm 198.00

generic brand

for
