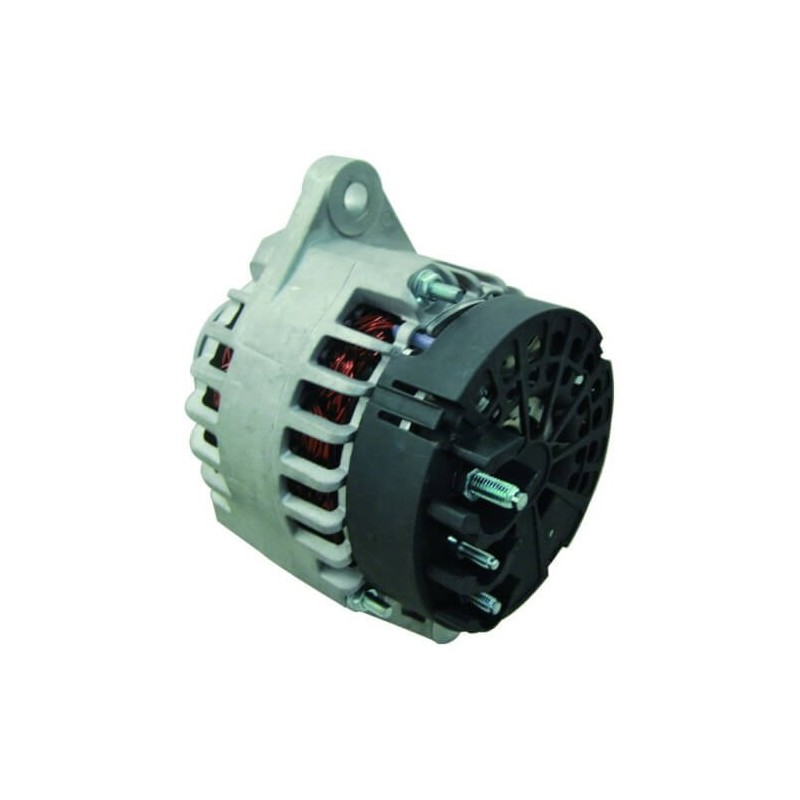

Alternator replacing DENSO 102211-8270 / 101210-0990

Information:

Voltage 14

Amp 140

D = Bracket hole 12.20

G = Belt. adj. bracket hole 12.20

B = Width/holder arm 61.30

E = Belt. adj. brackethole pos. 58

H = Pulley dia. 60.50

A = Pulley dist. 113.00

Grooves/pulley 6

J  = Radius 90.00

J = Radius 90.00

Position B + M8

Rotation Cr

Plug no. 1 PL_NA

Fan If

Pulley Serpentine Pulley/ Freewheel pulley

R = Total length mm 210.00

Un fil from branchement: (auto-excitation) Oui

Generic brand

= MAGNETI MARELLI 63377005 / 63321940

= SUZUKI 31400-79j00

= FIAT 71746673 / 73501591

= Alfa romeo 73501591
